TRU COMPONENTS TC-12830248 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

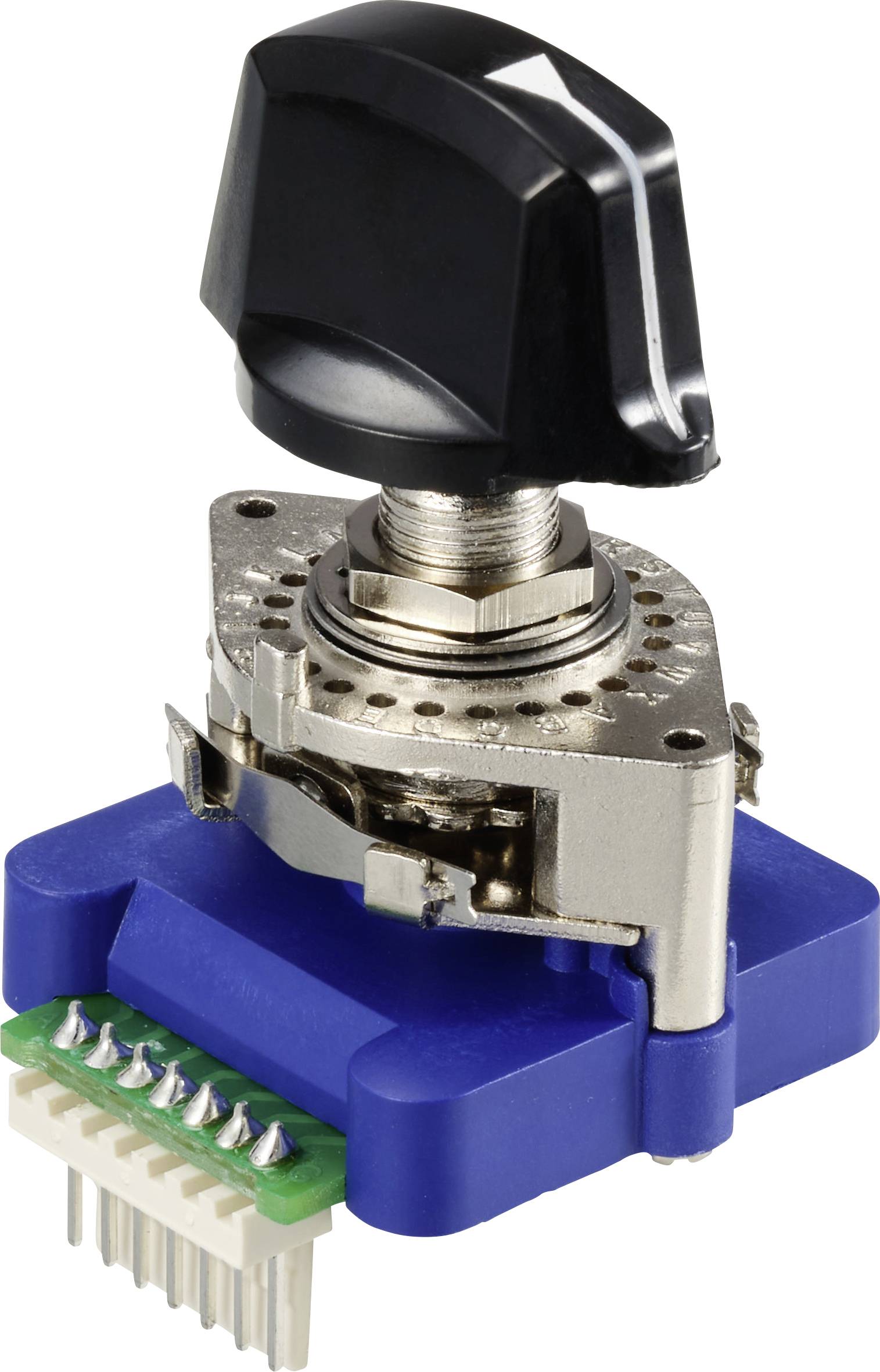

A blue rotary encoder with a black knob, metal casing, and several green contact pins at the bottom.

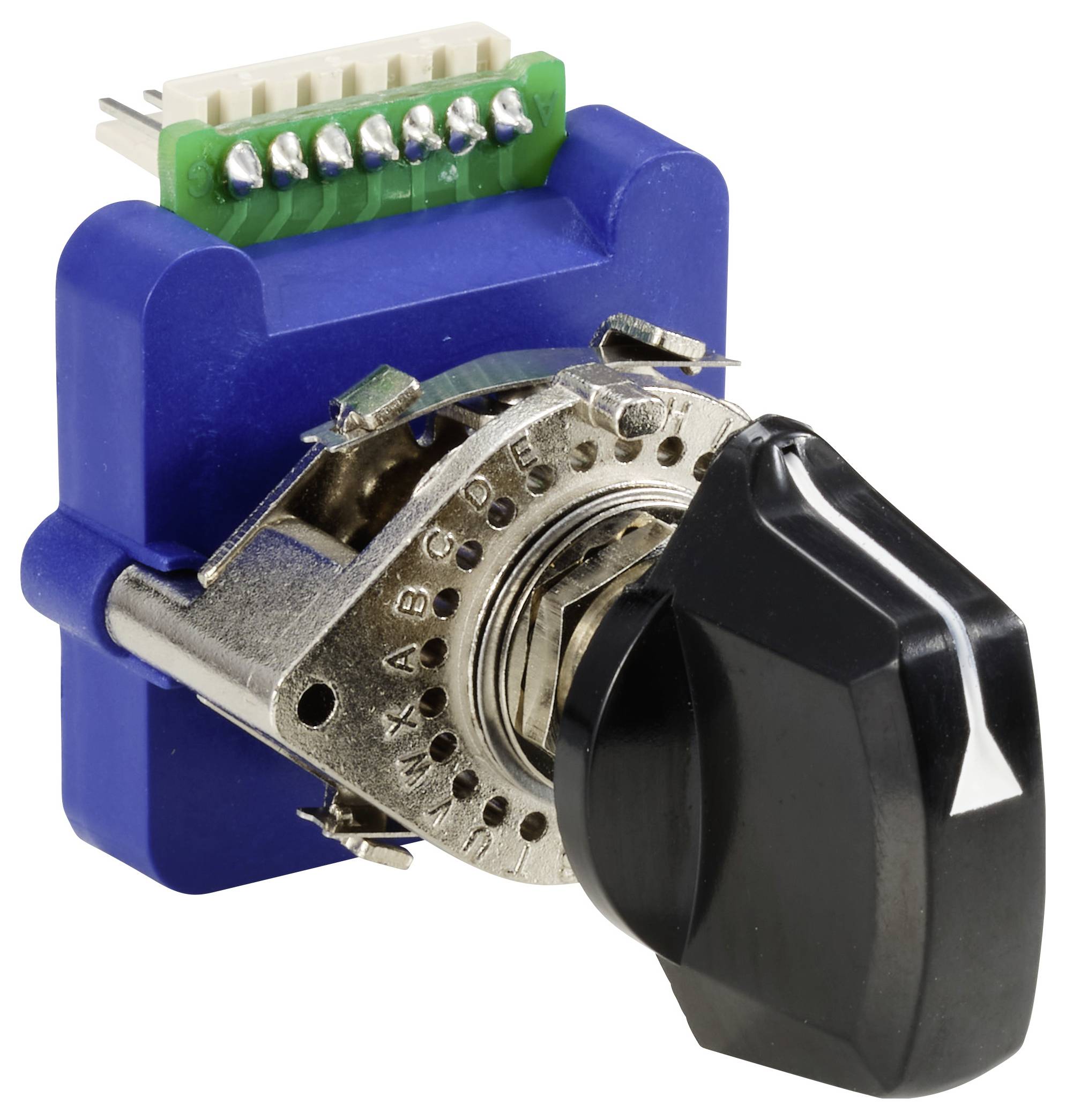

Close-up of a key switch with an electrical connection at the top, surrounded by a blue housing; used for controlling electrical circuits.

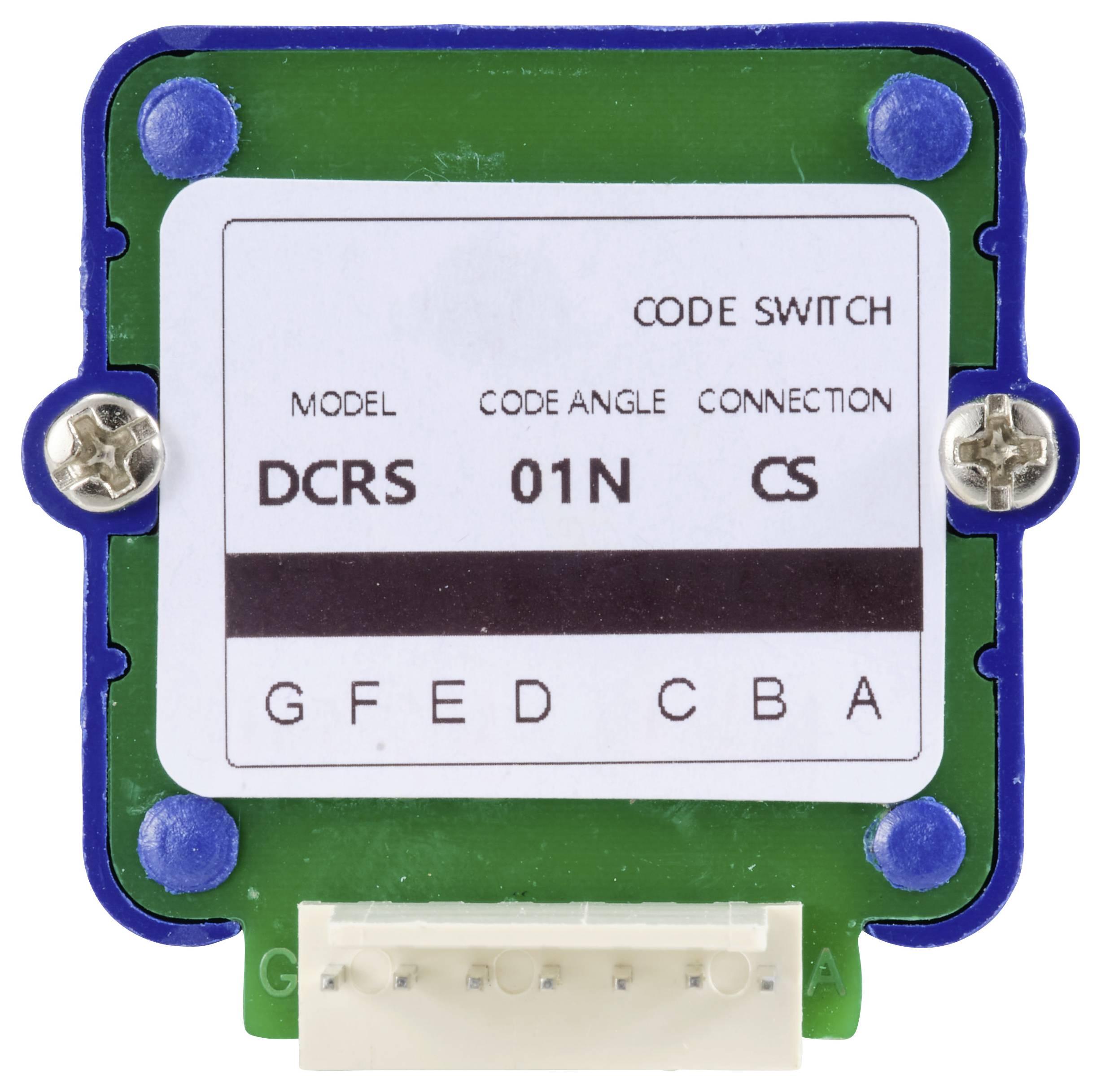

A rectangular electronic component with the inscription 'Model DCRS, Code Angle: 01N, Connection: CS' and letters 'GFED CBA'.

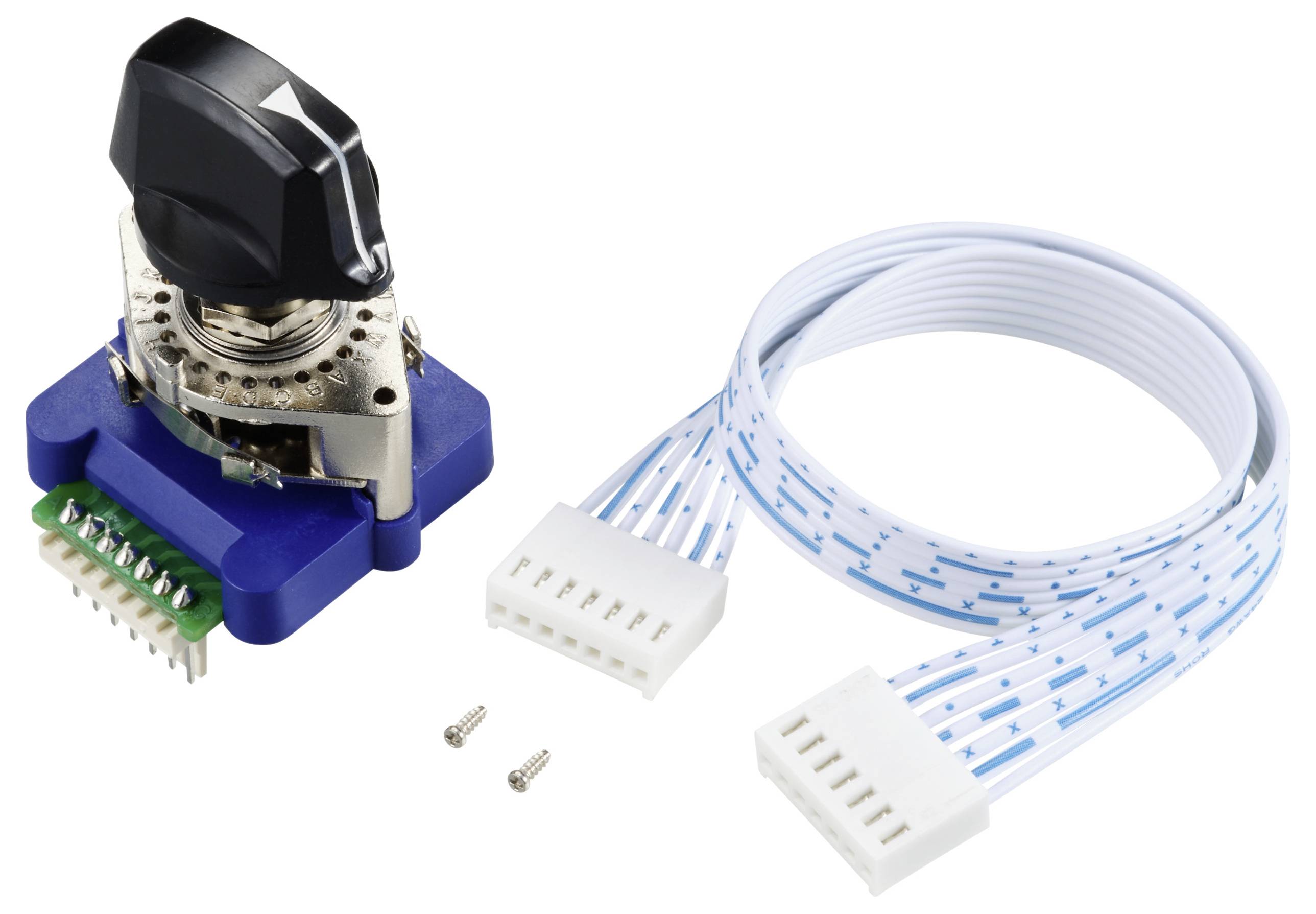

Rotary control with cable connection and two small screws, ready for installation.
1/4
Packaging type
Piece
Product type
Rotary switch
Operation type
Rotary switch
Switching voltage
5 V DC
25 V AC
50 V AC
Switching current (max.)
0.5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 13.10 / piece)
€ 13.10
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Rotary switch, Binary system

  • Designed for controlling operation mode, axial direction, and speed of CNC mechanical panels
  • The image shows the text 'powered by ONPOW' on a white background.

Technical specifications

  • Binary system
  • Switch rating: 5 V DC, 0.25 A / 25 V AC, 0.5 A / 50 V AC, 0.05 A
  • Mounting hole: Ø 9.2 mm & Ø 3.1 mm
  • Insulation resistance: ≥500 MΩ
Packaging type

Piece

Product type

Rotary switch

Operation type

Rotary switch

Switching angle

1 x 30 °

Lighting type

None

Contact resistance

≥500 MΩ

Switching voltage

5 V DC

25 V AC

50 V AC

Switching current (max.)

0.5 A

Min. temperature

-20 °C

Max. temperature

70 °C

Recess diameter

9.2 mm

Content

1 pc(s)

Type

TC-12830248

RoHS-compliant

Yes

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3207562 TRU COMPONENTS TC-12830248 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3207562 TRU COMPONENTS TC-12830248 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

Description

For controlling the operating mode, the axial direction and the speed of mechanical CNC panels.

This text is machine translated.

Scope of delivery

  • Main unit
  • Ribbon cable
  • 2x screws
