TRU COMPONENTS TC-12830252 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

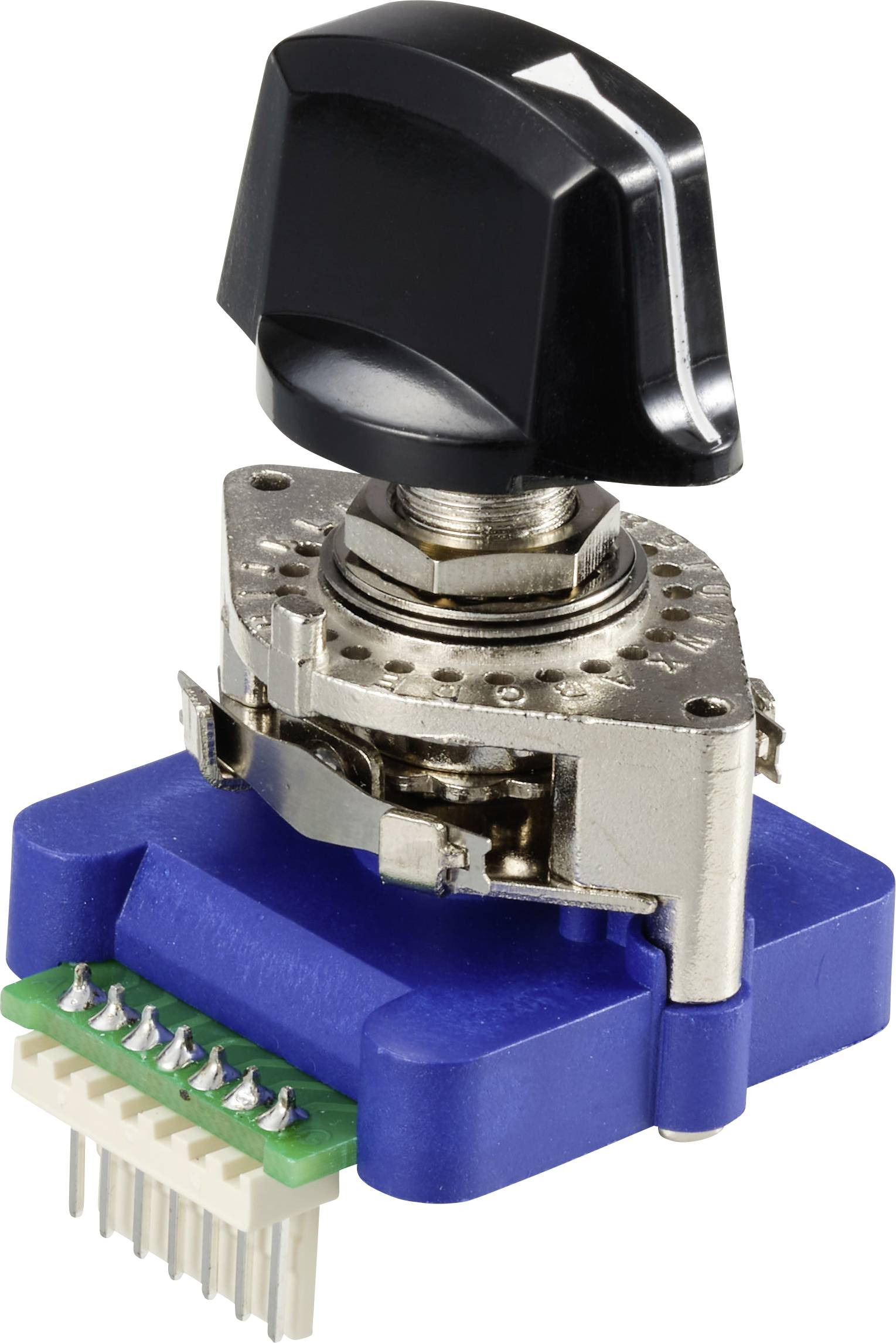

Rotary switch with a black knob on a blue base, featuring multiple metal terminals underneath; suitable for electronic devices.

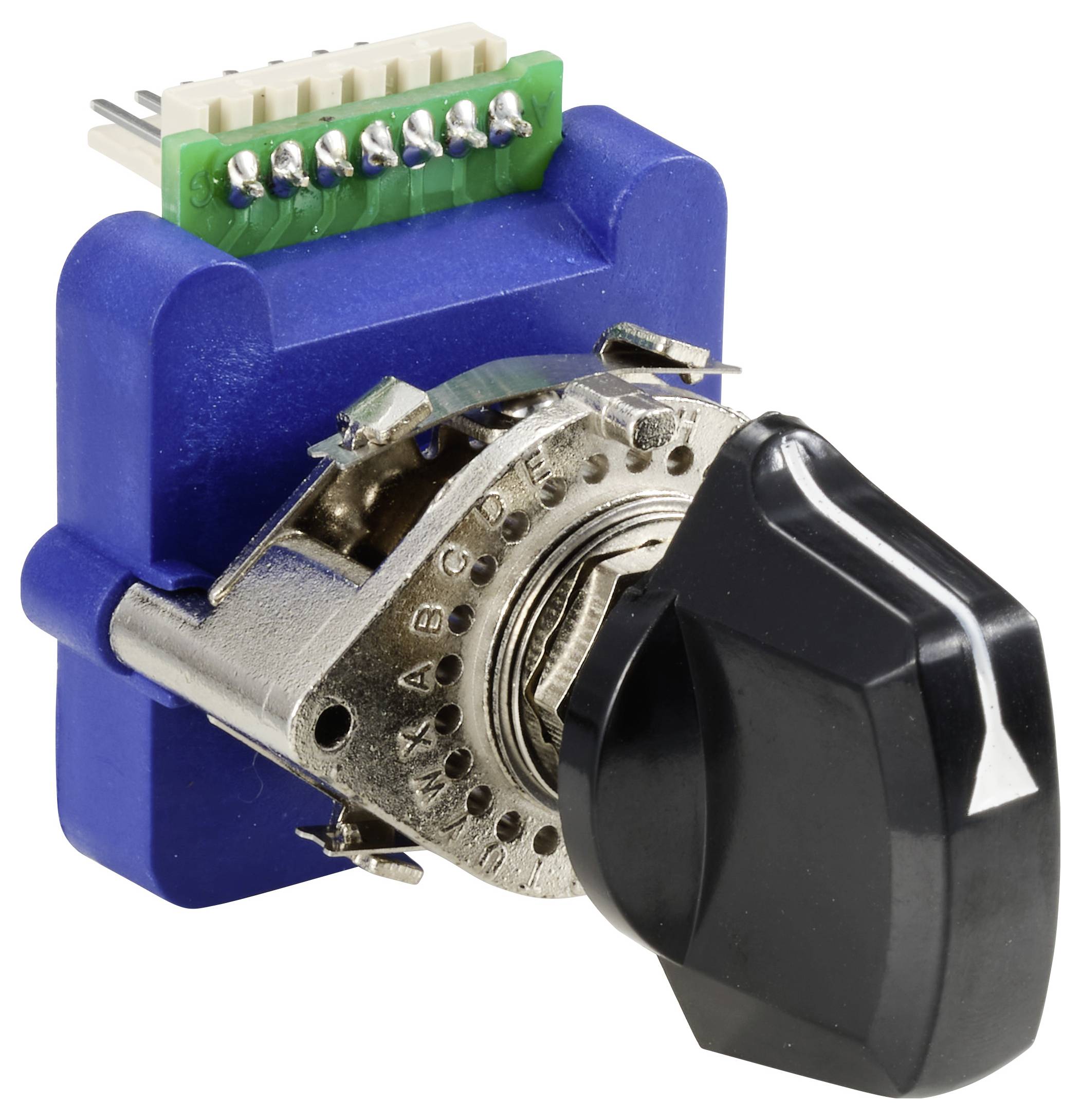

A blue rotary switch with a metal casing and black handle, with electrical contacts visible on the top.

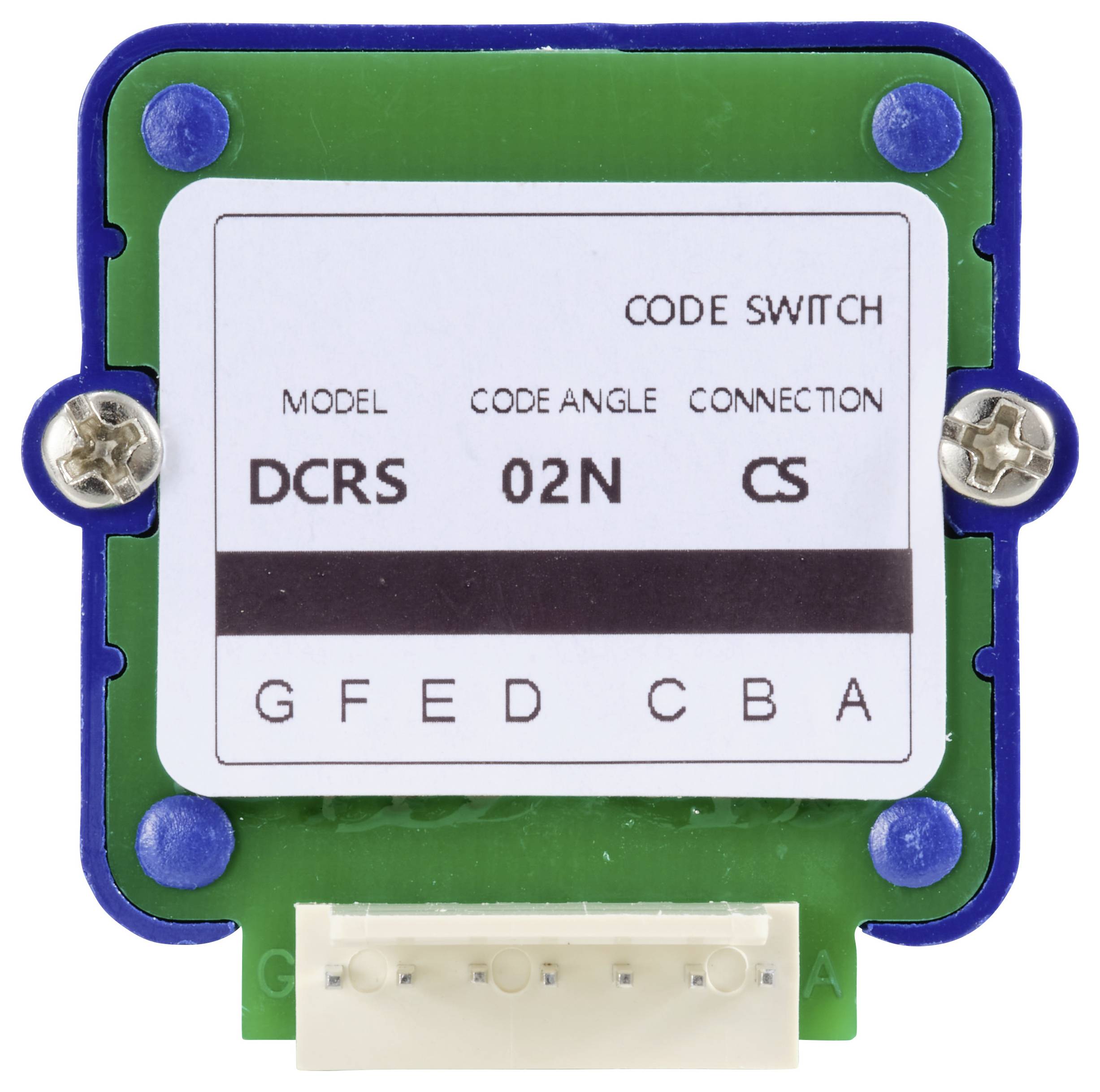

An electronic component marked 'CODE SWITCH', model 'DCRS', code angle '02N', and connection 'CS'.

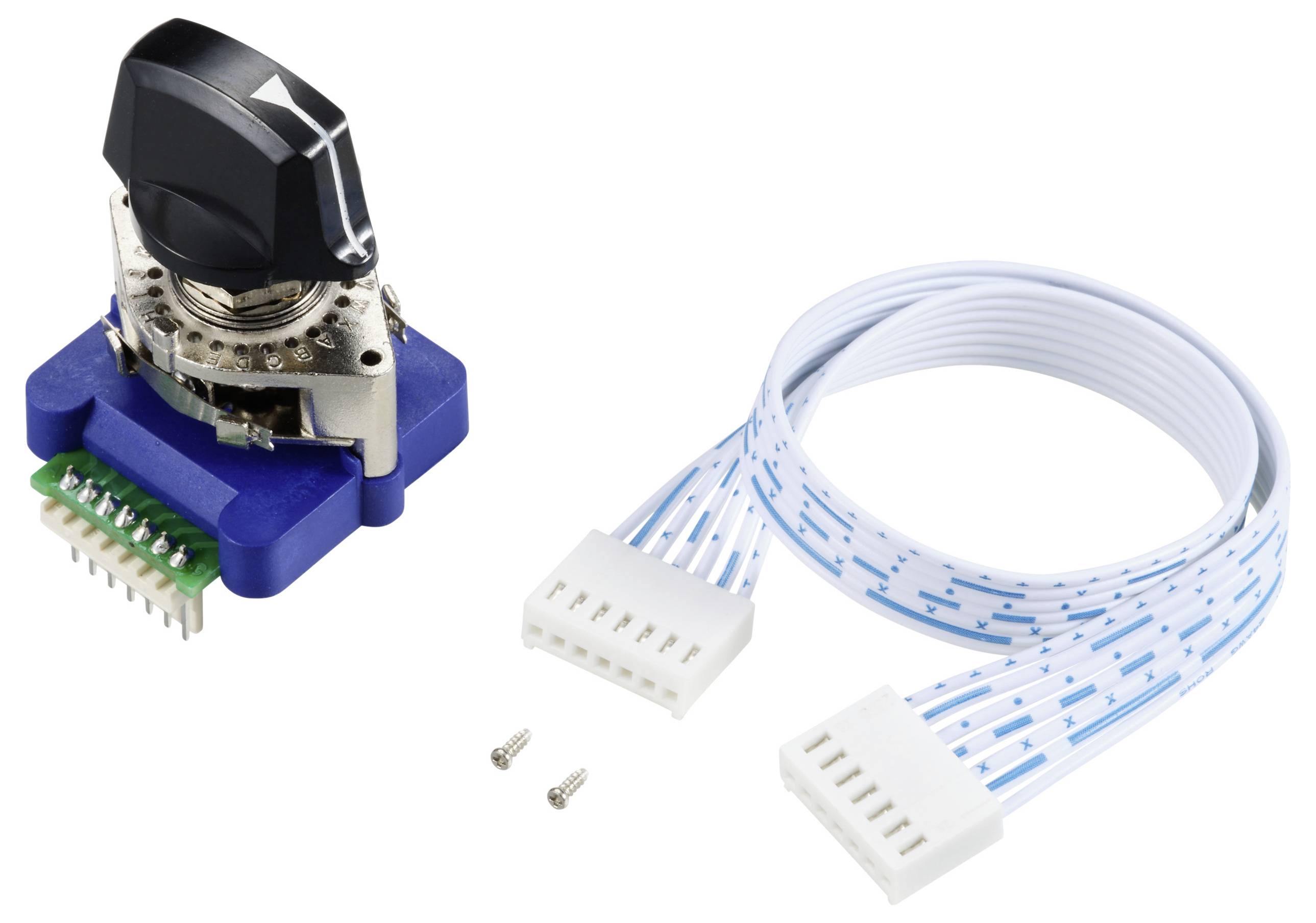

'Rotary encoder and flat ribbon cable with connectors. The rotary encoder has a black rotary knob on a silver housing.'
1/4
Product type
Rotary switch
Operation type
Rotary switch
Switching voltage
5 V DC
25 V AC
50 V AC
Switching current (max.)
0.5 A
Switching angle
1 x 30 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
34 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 12.10 / piece)
€ 12.10
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Rotary switch, Binary complementary system

  • Designed for controlling operation mode, axial direction, and speed of CNC mechanical panels
  • The image shows the text 'powered by ONPOW' on a white background.

Technical specifications

  • Binary complementary system
  • Switch rating: 5 V DC, 0.25 A / 25 V AC, 0.5 A / 50 V AC, 0.05 A
  • Mounting hole: Ø 9.2 mm & Ø 3.1 mm
  • Insulation resistance: ≥500 MΩ
Product type

Rotary switch

Operation type

Rotary switch

Switching angle

1 x 30 °

Lighting type

None

Contact resistance

≥500 MΩ

Switching voltage

5 V DC

25 V AC

50 V AC

Switching current (max.)

0.5 A

Min. temperature

-20 °C

Max. temperature

70 °C

Recess diameter

9.2 mm

Content

1 pc(s)

Type

TC-12830252

RoHS-compliant

Yes

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3207563 TRU COMPONENTS TC-12830252 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3207563 TRU COMPONENTS TC-12830252 Rotary switch 5 V DC, 25 V AC, 50 V AC 0.5 A 1 x 30 ° 1 pc(s)

Description

For controlling the operating mode, the axial direction and the speed of mechanical CNC panels.

This text is machine translated.

Scope of delivery

  • Main unit
  • Ribbon cable
  • 2x screws
