Ubiquiti Networks USW-WAN-RJ45 WAN Switch RJ45 19" switch box 10 GBit/s

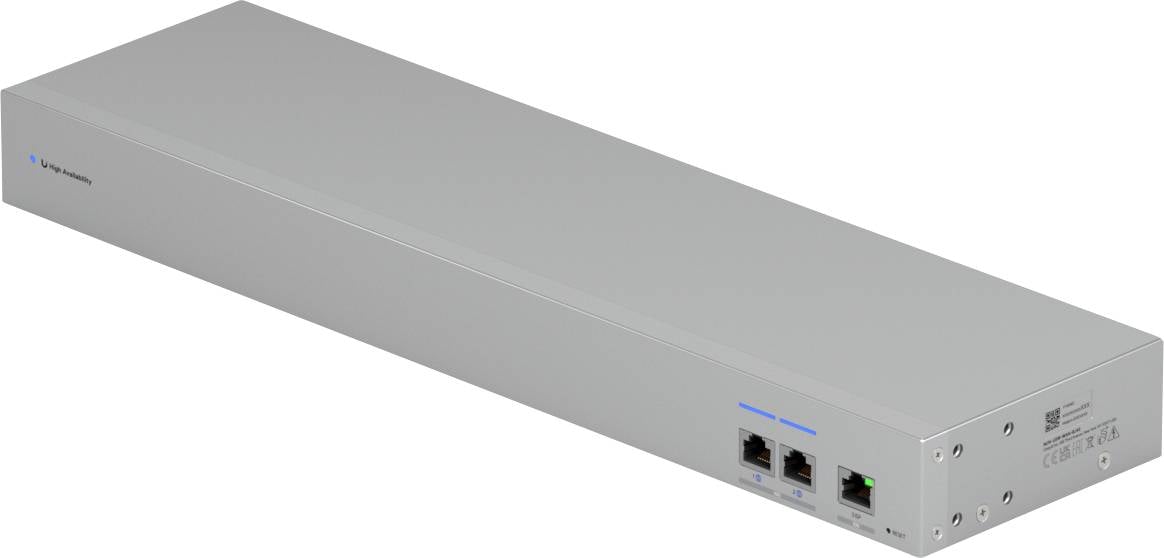

A rectangular metal electronic device with multiple ports on one side, commonly used for connecting network cables or devices.

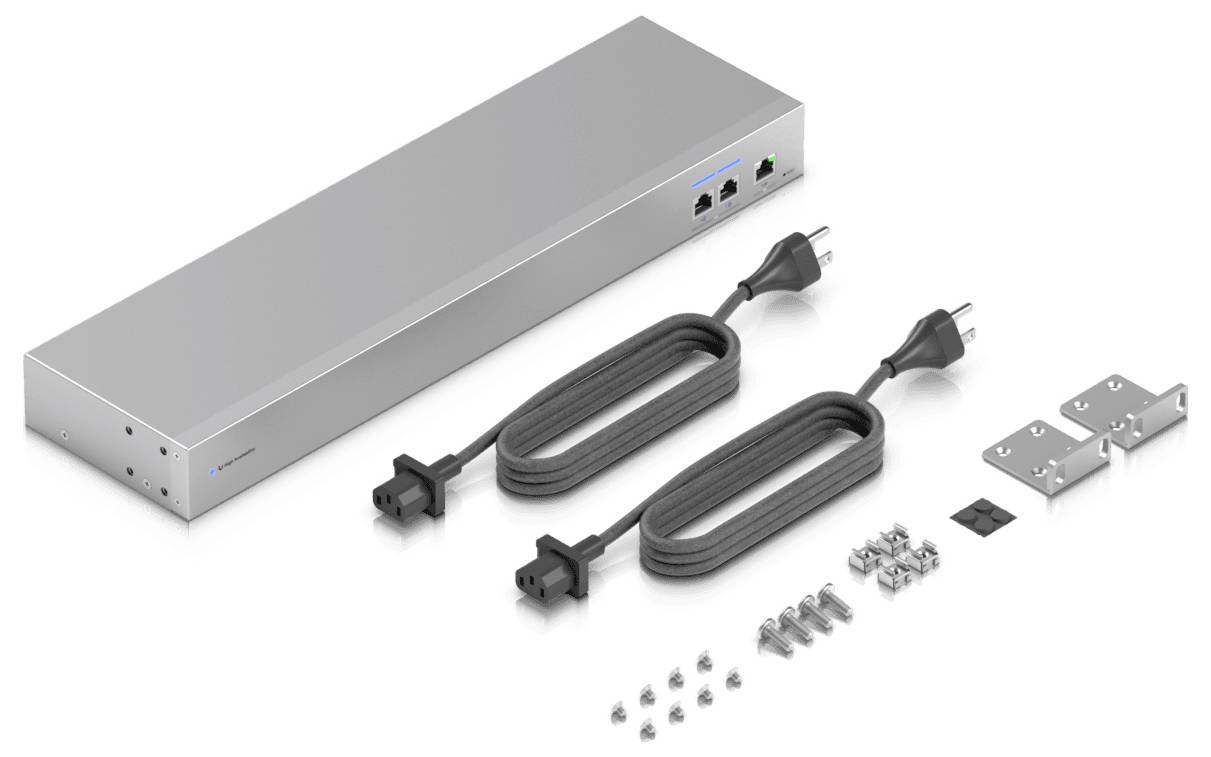

Steel power distribution unit with two black power cords, mounting brackets, and screws, designed for server rack installation.
The image shows the rear panel of a network switch with one Ethernet port on the left and two power input sockets on the right.

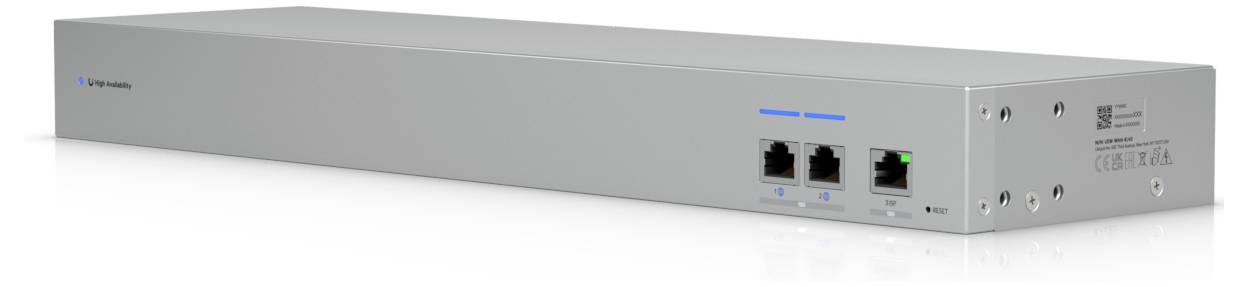

A sleek, silver network switch with company logo, three Ethernet ports, and power indicator light, angled to show side and front.
Network appliance with three ports labeled 'Console', 'Ethernet', and 'Power' on the right. Blue logo and indicator lights on the left.
A gray network device with two Ethernet ports and indicator lights.
1/6
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 309.00 / piece)
€ 309.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Ubiquiti WAN switch 4 port • 1x GbE • 1x 10 GbE ISP uplink • 2x 10 GbE downlink • 19" • Unifi • USW-WAN-RJ45

  • Combine it with Shadow Mode High Availability to ensure uninterrupted connectivity
  • (1) 10 GbE ISP uplink and (2) 10 GbE downlink ports
  • (2) AC inputs for power redundancy
  • (1) GbE port for management with Unifi Network

Technical specifications

  • Form factor: 1U
  • Energy source AC / DC
  • Routing/switching capacity - 20 Gbps
  • Throughput - 10 Gb/s.
  • Transfer rate - 15 Mpps
Product type

19" switch box

LAN transfer rate

10000 MBit/s

Transfer rate

10 GBit/s

Ethernet ports

1

No. of 100 Mbps/1Gbps/10Gbps ports

4 x

10/100/1000 Mbps ports

1 x

Weight

2.3 kg

Width

442.4 mm

Height

43.7 mm

Depth

120 mm

Type

WAN Switch RJ45

Interfaces

RJ45

Factory colour

Grey

Current consumption

18 W

Length

150 cm

Material (details)

SGCC

Power supply (details)

100 - 240 V

UKCA

not relevant

Operating temperature (T-T)

-5 - 40 °C

Basic switching RJ-45 Ethernet ports quantity

1

Switching capacity

20 Gbit/s

Rack mount kit

yes

Power over Ethernet (PoE)

no

Throughput

10 Gbit/s

Gigabit Ethernet (copper) ports quantity

1

Reset button

yes

Power cables quantity

2

10G Ethernet (copper) ports quantity

3

Rack mounting

yes

Operating relative humidity (H-H)

10 - 90 %

10G support

yes

Forwarding rate

15 Mpps

Power consumption (max)

18 W

Power supply included

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738673 Ubiquiti Networks USW-WAN-RJ45 WAN Switch RJ45 19" switch box 10 GBit/s

Description

10 GbE WAN switch that connects two Shadow Mode High Availability Unifi gateways to a single ISP.

This text is machine translated.

Hints

*Use an additional USW WAN RJ45 switch for ISP failover deployments.
