Visaton WL 16 EV - 100 V Wall speaker White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 109.99 / piece)
€ 125.00
-12 %
€ 109.99
incl. VAT
14-day return policy included
Highlights & Details
Visaton WL 16 EV Wall Loudspeaker
- Wall speakers in evacuation systems
- Horizontal or vertical mounting on wall or ceiling possible
- Certified according to EN 54-24
- Housing made of flame-resistant plastic according to UL 94: V0
- Ceramic terminal and thermal fuse
Technical specifications
- Height: 254 mm
- Width 204 mm
- Depth: 85 mm
- Product type
Wall speaker
- Operating voltage
100 V
- Max. load
6 W
- Impedance
6670 Ω
- Max. sound pressure
99 dB
- Features
fire-resistant
- Material
Plastic
- Length
8.5 cm
- Width
20.4 cm
- Content
1 pc(s)
- Weight
1.6 kg
- Factory colour
White
- Type
Square
- Frequency range
150 - 20000 Hz
- Power levels
6 W
3 W
1.5 W
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2344792 Visaton WL 16 EV - 100 V Wall speaker White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2344792 Visaton WL 16 EV - 100 V Wall speaker White 1 pc(s)
Warranty Terms
Warranty Terms 2344792 Visaton WL 16 EV - 100 V Wall speaker White 1 pc(s)
Description

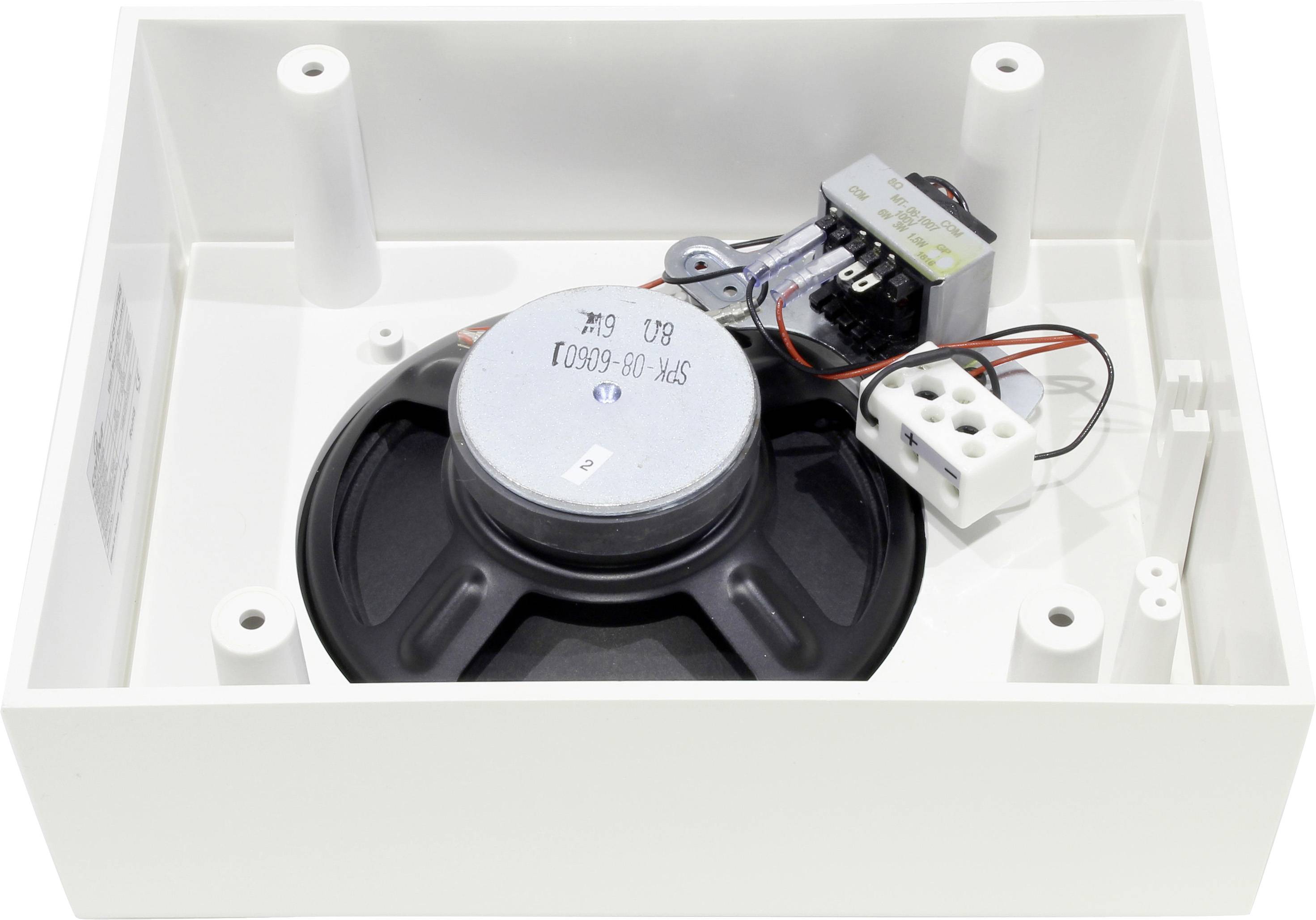

Wall loudspeaker with white plastic housing and perforated plate cover. Equipped with a full range speaker and a 100 V transformer. Clear speech intelligibility. Connection to the 100 V mains and level adjustment by screw terminal.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Visaton WL 16 EV Wall Loudspeaker
