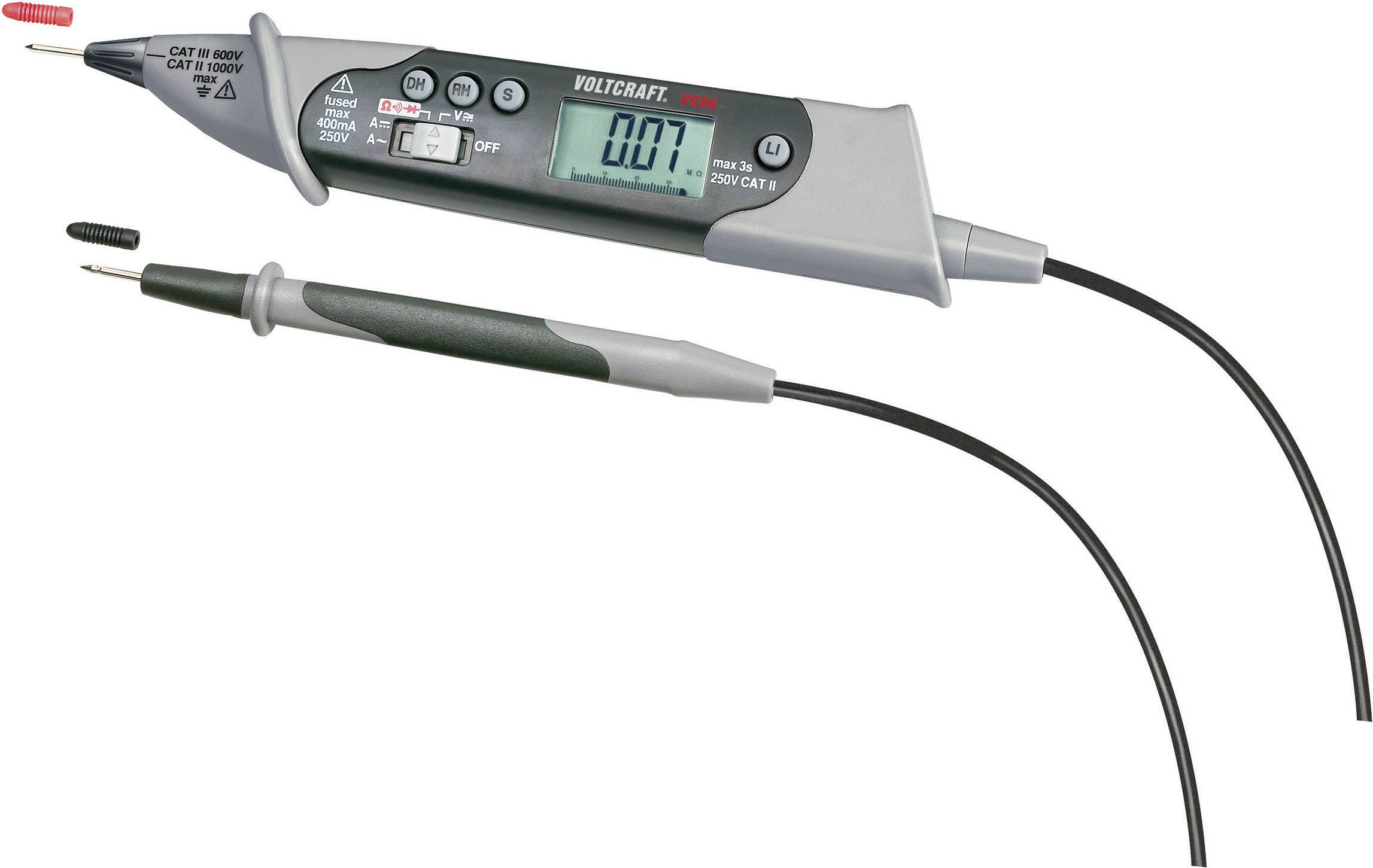

VOLTCRAFT VC86 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 250 V Display (counts): 4000
EAN:
Part number:
Item no:
Number
Total (€ 78.98 / piece)
€
Only 1 Piece(s) available
Highlights & Details
Pen multimeter VC (ISO-calibrated)
- Inclusive of. ISO test certificate
- Simple "one Hand operating"
- Switchable input resistance 10 MΩ on to 400 kΩ
- Current measurement
- Impact-resistant by soft plastic shaped parts
- 3400 Counts display range with Bar graph
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
250 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
250 V
- Amperage reading range DC (min.)
0.01 mA
- A DC reading range (max.)
400 mA
- A AC reading range (min.)
0.01 mA
- Amperage reading range AC (max.)
400 mA
- Reading range - resistance
0 - 40 MΩ
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 400 Hz Hz
- Interfaces
none
- Power supply (details)
3 V/DC (2 x LR44)
- Height
230 mm
- Width
35 mm
- Weight
140 g
ISO standards
- Reading category
CAT III 250 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC86
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 35 mm x 230 mm
- Basic accuracy
0.8 %
- Displays
3400 digits
- Reading category
CAT III 250 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 121706 VOLTCRAFT VC86 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 250 V Display (counts): 4000
Warranty Terms
Warranty Terms 121706 VOLTCRAFT VC86 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 250 V Display (counts): 4000
Description
Robust "pen" multimeter for one-handed operation. Excellent for service engineers and others who need a multimeter that is easy to use but still has all the features of a normal multimeter. The VC-86 has all the important ranges, and includes a continuity tester. The range switch in the centre can be easily operated with the thumb.
Features
- Automatic range selection with range hold
- Auto power-off
- Data hold
- Switchable input resistance for suppression of "stray voltages" 10 MO to 400 kO
- Low battery indicator
- Diode test
- Acoustic continuity tester
- Shock-resistant with soft plastic moulded parts
- Easy fuse and battery replacement without having to completely open the housing.
Scope of delivery
- 4 batteries (LR 44)
- Storage pouch
- Replacement probe tips 70 mm
- Replacement fuse
- Alligator clips for minus pole
- Manual
- ISO test certificate.
