Wachendorff PLT200KIT Tachometer Optical, Mechanical 0.5 - 20000 U/min 5 - 200000 U/min
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 536.97 / piece)
€ 536.97
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Handheld laser speedometer PLT200
- Class 2M laser handheld speedometer with 8 m range
- Timer, counter and speedometer in one device
- Signal input for external sensors
- Device easily programmable using the front keys
- Ergonomic and robust plastic housing
- Can be used also as a contact speedometer with additional module
Technical specifications
- Temperature range: +5 to +40°C
- RPM accuracy
Optisch: ±0,01 % des Messwertes
Kontakt: ±0,05 % des Messwertes
- Speed resolution
0.001 U/min
- Reading distance
5 cm - 8 m
- Operating voltage
2 type AA batteries.
- Dim
(L x W x H) 41 x 61 x 175 mm
- Height
175 mm
- Length
41 mm
- Width
61 mm
- Rotational speed range (max.)
0.5 - 20000 U/min
- Rotational speed (optical)
5 - 200000 U/min
Manufacturer's standards (no certificate)
- Display
LED
- Measuring type
Optical
Mechanical
- Type
PLT200KIT
- Rotational speed, mechanical (max.)
20000 U/min
- Rotational speed, mechanical (min.)
0.5 U/min
- Rotational speed, optical (max.)
200000 U/min
- Rotational speed, optical (min.)
5 U/min
- Temperature range
+5 to +40 °C
- Product type
Tachometer
Documents & Downloads
Datasheet
Datasheet 126553 Wachendorff PLT200KIT Tachometer Optical, Mechanical 0.5 - 20000 U/min 5 - 200000 U/min
User & Safety Instructions
User & Safety Instructions 126553 Wachendorff PLT200KIT Tachometer Optical, Mechanical 0.5 - 20000 U/min 5 - 200000 U/min
Information
Information 126553 Wachendorff PLT200KIT Tachometer Optical, Mechanical 0.5 - 20000 U/min 5 - 200000 U/min
Conformity certificate
Conformity certificate 126553 Wachendorff PLT200KIT Tachometer Optical, Mechanical 0.5 - 20000 U/min 5 - 200000 U/min
Description
The PLT200 laser handheld tachometer is a battery-powered functional handset for taking speed, impulse counting, totalling and time measurements. The class 2M laser sensor allows accurate measurements up to a speed of 200 000 rpm. The impulses are recorded using a corresponding reflex tape. An internal memory enables the detection of the speed's maximum and minimum value. For example, a number of items or the number of revolutions of the shaft can be measured using the summing function. An input plug enables the triggering and impulse capture via an external sensor with TTL signal. For contact measurement, there is an adapter with the usual measuring tips. The recorded impulses can be transferred 1:1, for example, to an additional display via an output connector.
Features
- Class 2M laser handheld speedometer with 8 m range
- Timer, counter and speedometer in one device
- Signal input for external sensors
- Device easily programmable using the front keys
- Ergonomic and robust plastic housing
- Can be used also as a contact speedometer with additional module.

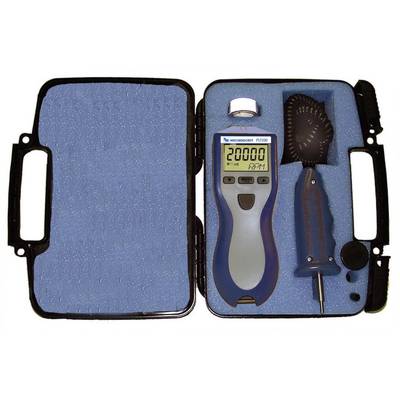

Scope of delivery
- Reflex tape
- Batteries
- Contact module
- Plastic case
- Measuring tips
- Measuring wheel
- Measuring taper
- Instructions for use.
