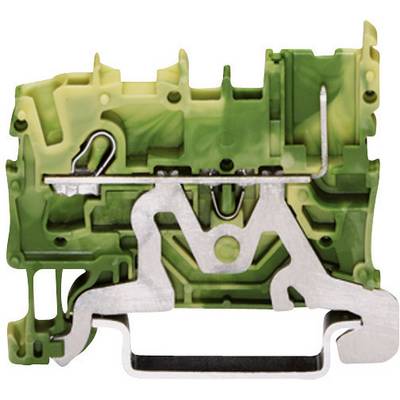

WAGO 2022-1207 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Base terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.68
-22 %
€ 2.09
plus VAT.
Highlights & Details
WAGO 2022-1207 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Technical specifications
- Product type
Base terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2022-1207
- Content
1 pc(s)
- Type
2022-1207
- Width
5.20 mm
- Nominal voltage (details)
690 V
- Nominal current (details)
-
- Connection
-
Documents & Downloads
Datasheet
Datasheet 738025 WAGO 2022-1207 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Datasheet 738025 WAGO 2022-1207 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 738025 WAGO 2022-1207 Base terminal 5.20 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
Core TS 35 to EN 60715 standard
