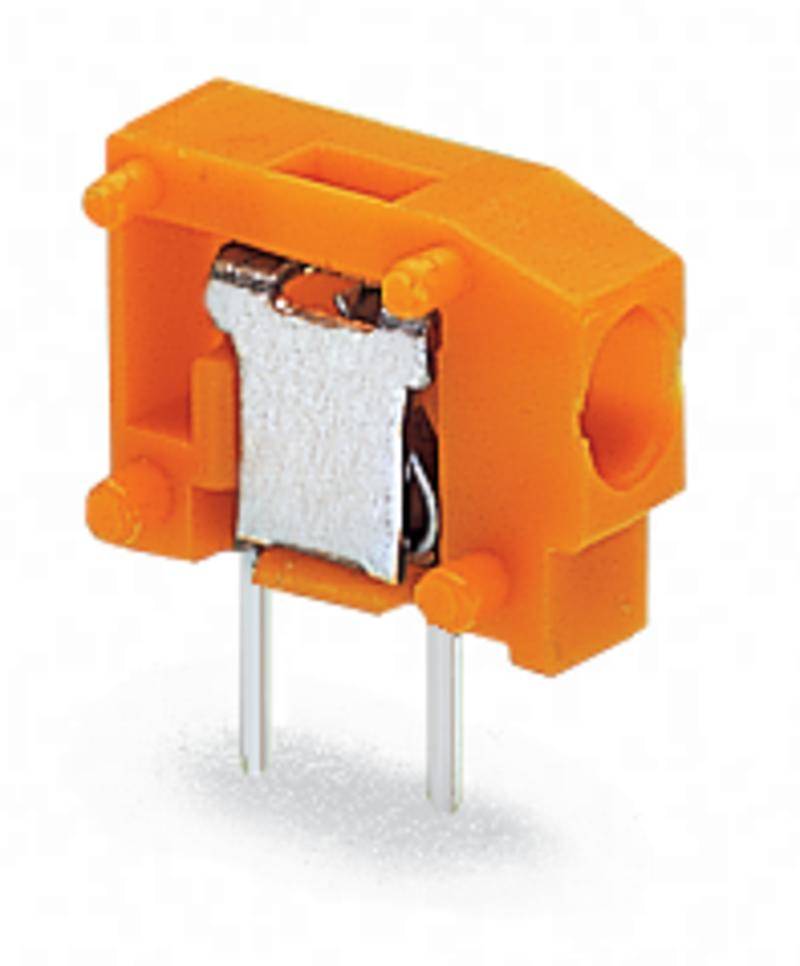

WAGO 235-101/330-000 Spring-loaded terminal 0.75 mm² Number of pins 1 Orange 800 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded terminal
CS
3.81 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Print
Datasheet (PDF)
Sales and shipping:
Number (Package size 800 pc(s))
Total (€ 0.24 / piece)
€
Highlights & Details
1-conductor PCB terminal block
- Content 800 pc(s)
Technical specifications
- EINZELKLEMME 3,81MM OHNE DRüCKER
- Type
235-101/330-000
- Product type
Spring-loaded terminal
- Features
+ PUSH WIRE®
- CS
3.81 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Series
235
- Min. stripping length
6 mm
- Stripping length (max.)
10 mm
- Connection
Spring-loaded terminal
Print
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (inflexible) (min.)
0.50 mm²
- Cross section (flexible) (max.)
0.75 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
16
- Contact material
Cathode copper, tin plated
- Factory colour
Orange
- Wire protection
Yes
- Manufacturer part #
235-101/330-000
- Industrial packaging
Yes
- Content
800 pc(s)
- Nominal voltage
320 V

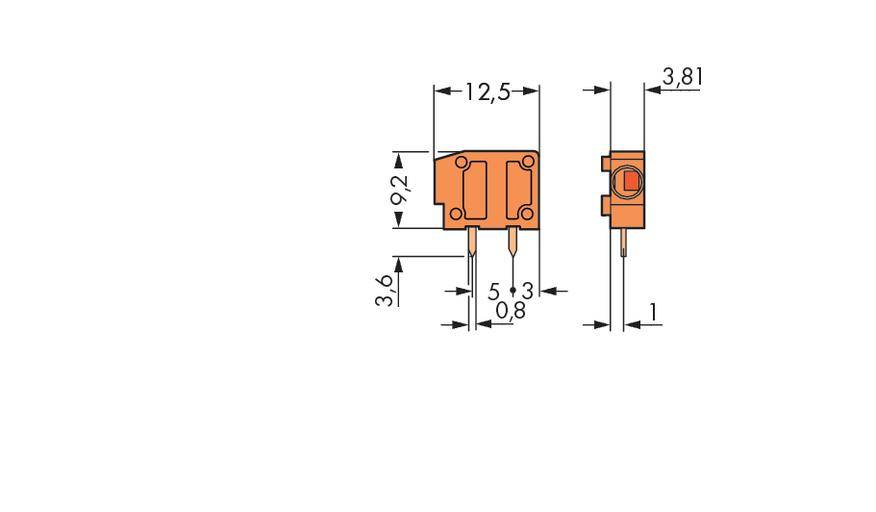

- Width
12.80 mm
- Height
12.50 mm
- Length
5.30 mm
