WAGO 279-620/281-408 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s) Package

Electrical terminal connected to three conductors via metal contacts and screws. Cables lead to a central black element.

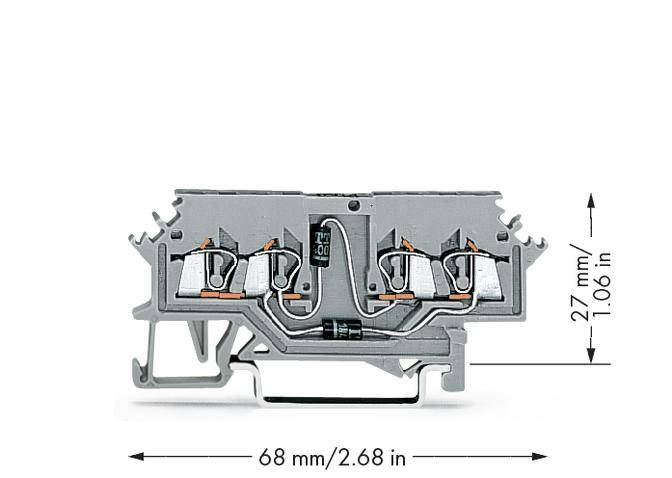

A cross-section of an electrical terminal block with dimensions: width 68 mm (2.68 inches), height 27 mm (1.06 inches).

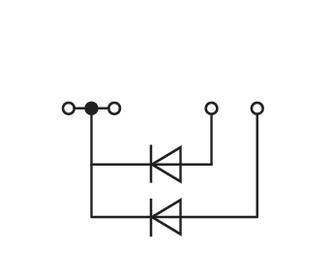

A simple circuit diagram with two diodes connected in parallel and oriented in opposite directions symbolises current flow control.
1/3
Packaging type
Package
Product type
Diode terminal
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 19 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 100 pc(s))
Total (€ 12.39 / piece)
€ 1,239.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

4-conductor diode terminal block

  • 279-620/281-408
  • Industrial packaging with 100 pieces

Technical specifications

  • DOUBLE DIODE TERM.BL. 1,5SQMM GREY
Packaging type

Package

Product type

Diode terminal

Features

+ 2 diodes

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

1.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

1.50 mm²

AWG (min.)

28

AWG max.

16

Clamp width

4 mm

No. of rows

1

Pins per row

4

Number of pins

4

Factory colour

Grey

Nominal current

0.5 A

Nominal current - rounded value

500 mA

Nominal voltage

60 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

279-620/281-408

Content

100 pc(s)

Industrial packaging

Yes

Type

279-620/281-408

Dim

(W x H) 4 mm x 27 mm

Width

4 mm

Height

27 mm

Connector colour

Grey

DIN rail (top hat rail) 35 mm

Grey

4

68 mm

27 mm

60 V

105-105 °C

V0

TRUE

Spring clamp connection

Spring clamp connection

1

4

FALSE

0.08-1.5 mm²

0.08-1.5 mm²

0.08-1.5 mm²

Thermoplastic

0.5 A

FALSE

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 535361 WAGO 279-620/281-408 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s) Package

User & Safety Instructions

User & Safety Instructions 535361 WAGO 279-620/281-408 Diode terminal 4 mm Pull spring Configuration: L Grey 100 pc(s) Package

Description

With 2 1N4007 diodes, for lamp test circuits up to 60 V gray.
