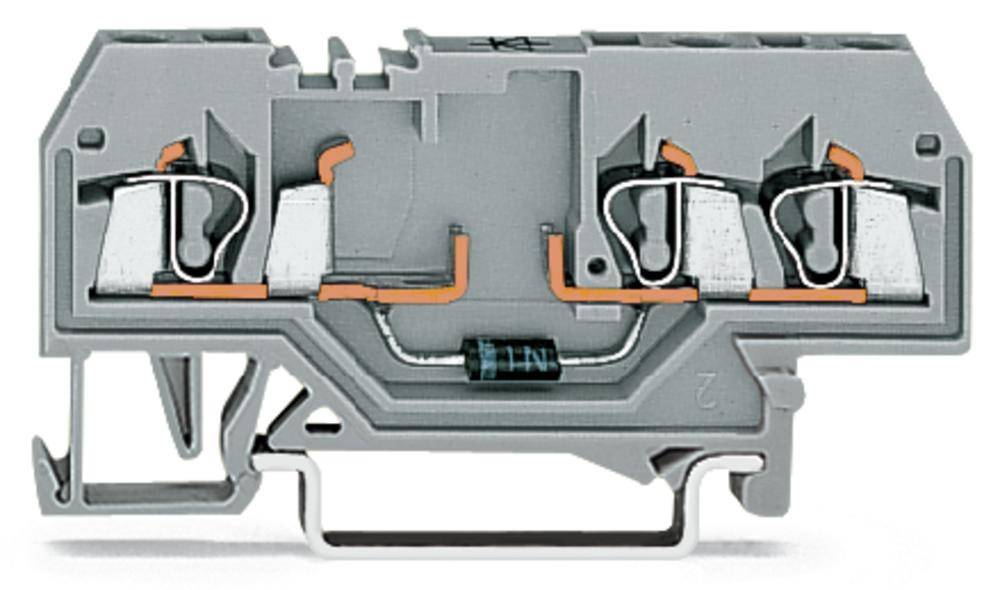

WAGO 280-673/281-410 Diode terminal 5 mm Pull spring Configuration: L Grey 100 pc(s)

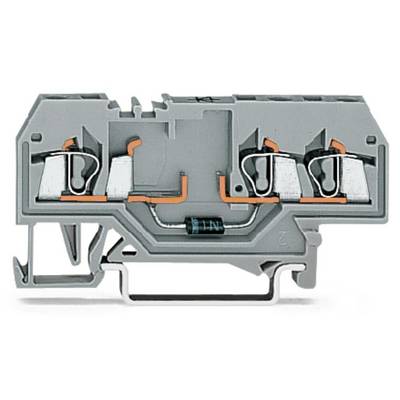

Grey terminal block with integrated resistance, three copper conductor connections, suitable for electrical connections in control cabinets.

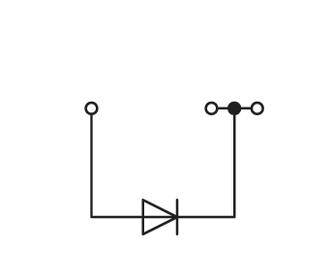

An electronic circuit shows a diode placed in a parallel connection with points at both ends.

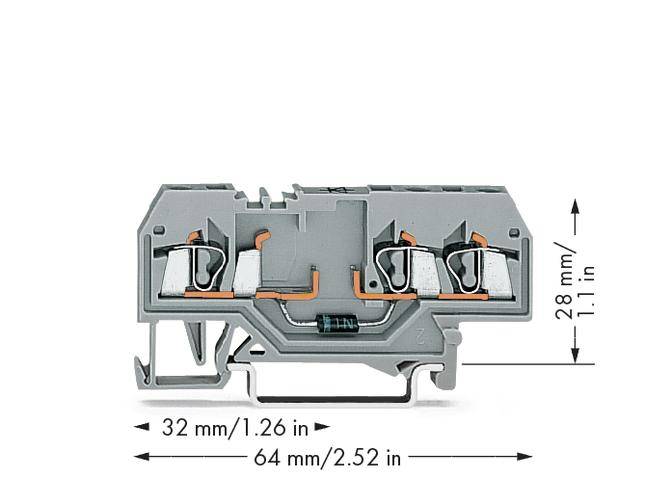

Grey electrical terminal block with screw connections, two terminals, and dimensions: 32 mm width, 64 mm length, 28 mm height.
1/3
Product type
Diode terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
500 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue, 12 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 100 pc(s))
Total (€ 5.85 / piece)
€ 585.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

3-conductor diode terminal block

  • 280-673/281-410
  • Industrial packaging with 100 pieces

Technical specifications

  • 3-LEITER-KLEMME MIT DIODE 1 N 4007
Product type

Diode terminal

Features

+ 1 diode

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5 mm

No. of rows

1

Pins per row

3

Number of pins

3

Factory colour

Grey

Nominal current

0.5 A

Nominal current - rounded value

500 mA

Nominal voltage

250 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-673/281-410

Content

100 pc(s)

Industrial packaging

Yes

Type

280-673/281-410

Dim

(W x H) 5 mm x 28 mm

Width

5 mm

Height

28 mm

Connector colour

Grey

Documents & Downloads

Datasheet

Datasheet 536081 WAGO 280-673/281-410 Diode terminal 5 mm Pull spring Configuration: L Grey 100 pc(s)

User & Safety Instructions

User & Safety Instructions 536081 WAGO 280-673/281-410 Diode terminal 5 mm Pull spring Configuration: L Grey 100 pc(s)

Description

With 1N4007 diode, gray.
