WAGO 756-3104/040-200 Sensor/actuator data cable (pre-fab) M12 Plug, right angle 20.00 m No. of pins (RJ): 4 1 pc(s)

An angled M8 connector with cable, on a white background. The connector is finished in black and silver.
'Pin 1 - 4: 0.75 mm²' followed by a list with 1: brown, 2: white, 3: blue, 4: black.
A round, numbered connector with four pins, labelled clockwise: 1 at the bottom, 2 on the right, 3 at the top, 4 on the left.

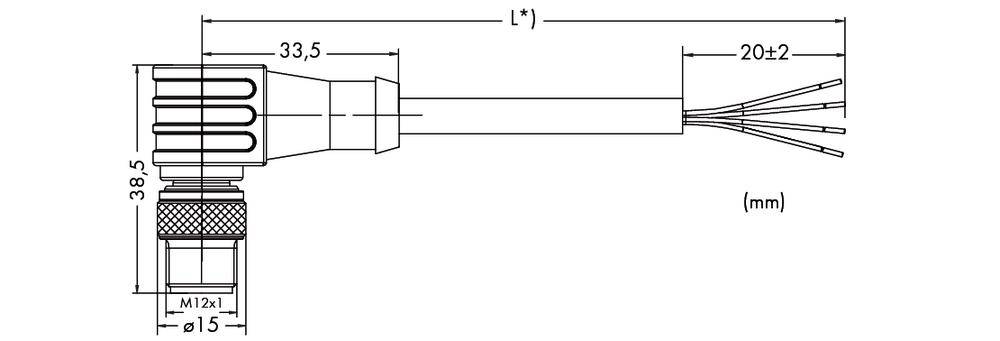

Technical drawing of an electrical connector with dimensions: length 33.5 mm, diameter 38.5 mm and M12x1 thread.
1/4
Product type
Sensor/actuator data cable (pre-fab)
Connector type
Plug, right angle
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M12 plug, right angle
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 14 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 144.99 / piece)
€ 144.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • POWER KABEL M12 ST. WINKL. 20,00M
Type

756-3104/040-200

Product type

Sensor/actuator data cable (pre-fab)

Connector type

Plug, right angle

Connector standard

Sensor connector

Connection side A

Cable, open end

Connection side B

M12 plug, right angle

No. of pins

4

Cable length

20.00 m

Jacket material

PUR

Nominal voltage

250 V

Nominal current

4 A

Nominal current - rounded value

4 A

Cross-section (sensor/actuator wiring)

0.75 mm²

Connection

Open end cable

Thread type connection side

M12

Cable colour

Grey

IP67

Features

Halogen-free

Hydrolysis-resistant

Oil-resistant

UV-resistant

Suitable for drag chains

Min. temperature

-30 °C

Max. temperature

+80 °C

Seal type

Screw-on

Manufacturer part #

756-3104/040-200

Content

1 pc(s)

Cable diameter (details)

6.20 mm

Documents & Downloads

Datasheet

Datasheet 546222 WAGO 756-3104/040-200 Sensor/actuator data cable (pre-fab) M12 Plug, right angle 20.00 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546222 WAGO 756-3104/040-200 Sensor/actuator data cable (pre-fab) M12 Plug, right angle 20.00 m No. of pins (RJ): 4 1 pc(s)

Description

, Angled, 20 m one end prefabricated, B-coded, M12 connector, angled, open end, gray.
