Name: WAGO 787-1642 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)
Brand: WAGO
SKU: 1429824
Price: 395 EUR
Availability: InStock

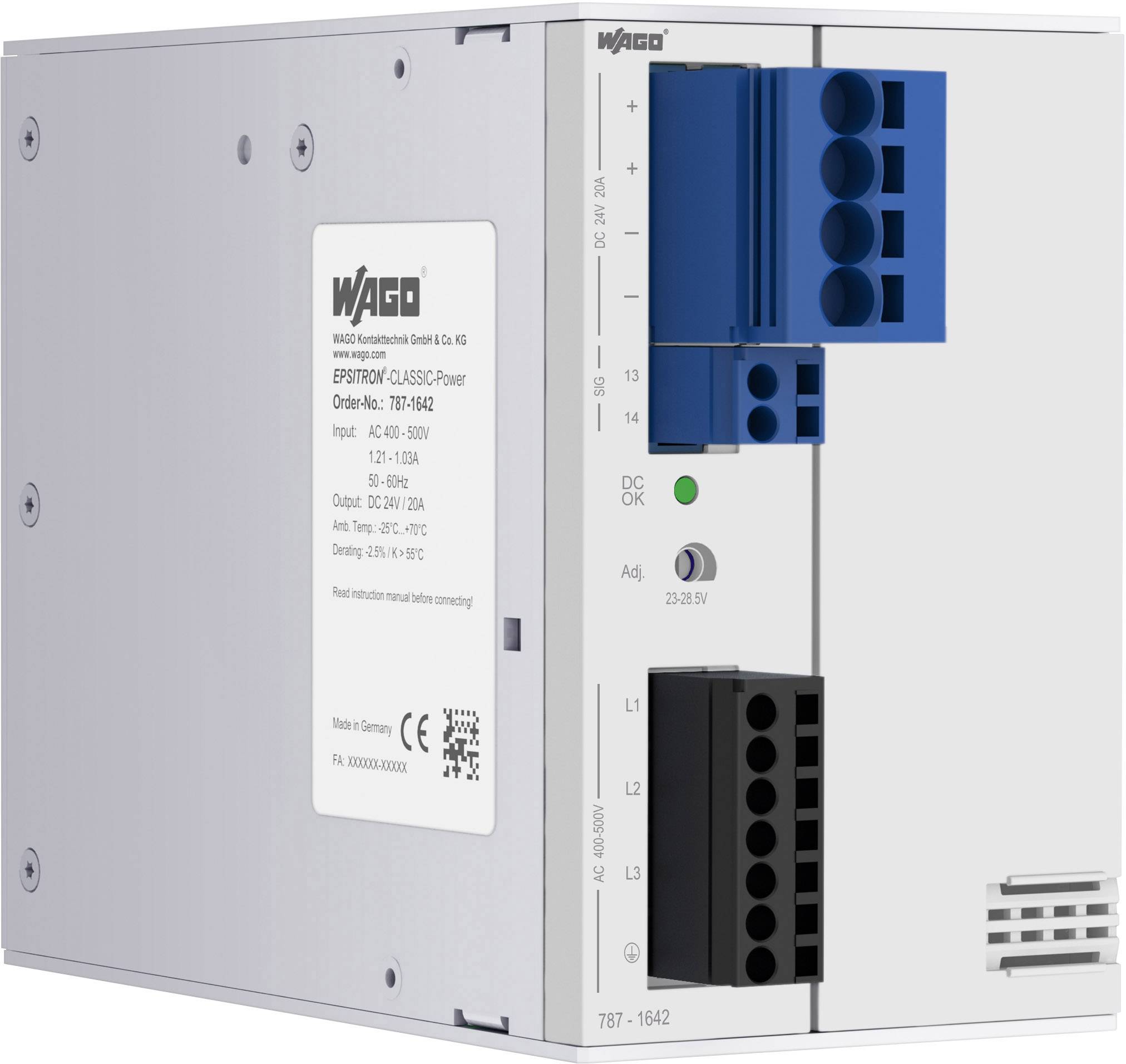

Power supply module with blue and black connection terminals, side labelling and technical specifications on the front.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 395.00 / piece)

€ 395.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

WAGO 787-1642 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Input voltage range: 100 - 240 V AC
3 phase
Output: 24V DC
Switched Mode
Termination type: CAGE CLAMP terminals

Technical specifications

Protection type IP20
TopBoost
Ambient temperature -25 °C to +70°C

Type: Switched PSU

Nominal input voltage: 400 V/AC
500 V/AC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 320 V AC

Output voltage: 24 V DC

Input voltage: 100 - 240 V AC

Input voltage (max.): 575 V AC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

: 480 W

Output type (power supply units): Fixed voltage

Phases: 3

Output voltage (nominal): 24 V

No. of outputs: 1 x

Dim: (L x W x H) 180 x 80 x 127 mm

Weight: 1500 g

Output voltage (max.): 28.5 V

Output voltage (min.): 23 V

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 787-1642

Content: 1 pc(s)

Width: 80 mm

Height: 127 mm

Length: 180 mm

Max. temperature: 70 °C

Min. temperature: -25 °C

Type: 787-1642

Connections: Terminal

: 80

: 127 mm

: 180 mm

: FALSE

: FALSE

: 5

: AC/DC

: Spring clamp connection

: TRUE

: IP20

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1429824 WAGO 787-1642 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1429824 WAGO 787-1642 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Description

787-1642 power supply with 24V DC output - belonging to Wago's EPSITRON ECO POWER series of economical DIN rail power supplies for standard applications.

These power supplies are an economical alternative for applications that simply require 24Vdc without additional functions. Packaged in a flat and solid metal housing, the 787-1642 provides a output current.

ECO Power Supplies lower project and operating costs with advanced features including: LED status indication, front-panel adjustable output voltage, efficiency levels up to 82% and maintenance-free CAGE CLAMP® terminations.

Fast and Safe Connection
CAGE CLAMP® Spring Pressure Connection Technology provides fast, vibration-free and maintenance-free termination of solid, finestranded or ferruled conductors.

Fast Installation
All ECO Power Supplies have a flat and very robust DIN rail mount metal housing. Mounting is simple, thanks to a readily accessible plate on the device.

Clear Indication
All ECO Power Supplies indicate output voltage availability via green LED. A red LED indicates an overvoltage. This simplifies start-up and quickly provides maintenance personnel with system or machine status.

High Load-Carrying Capacity
ECO Power Supplies detect overload from 1.15x nominal output current. The units can be overloaded up to 1.4x the nominal current. The output voltage is considerably reduced if the overload continuous rising. In case of a low-resistance short-circuit, the output will be switched off. As soon as the short circuit has been removed, the output will automatically reactivate.

Universal Supply
The wide range of input voltages ECO Power Supplies allows feeds of 85 to 264Vac – mass-produced machines can operate on different supply networks in Europe, America or Asia without additional conversion or setting. This feature increases tolerance of voltage fluctuations within a supply network, increasing reliability.
