Akyga AK-EC-21 Charging station Type 2 11 kW
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Number of phases: 3 phase
- Max. Current 16 A.

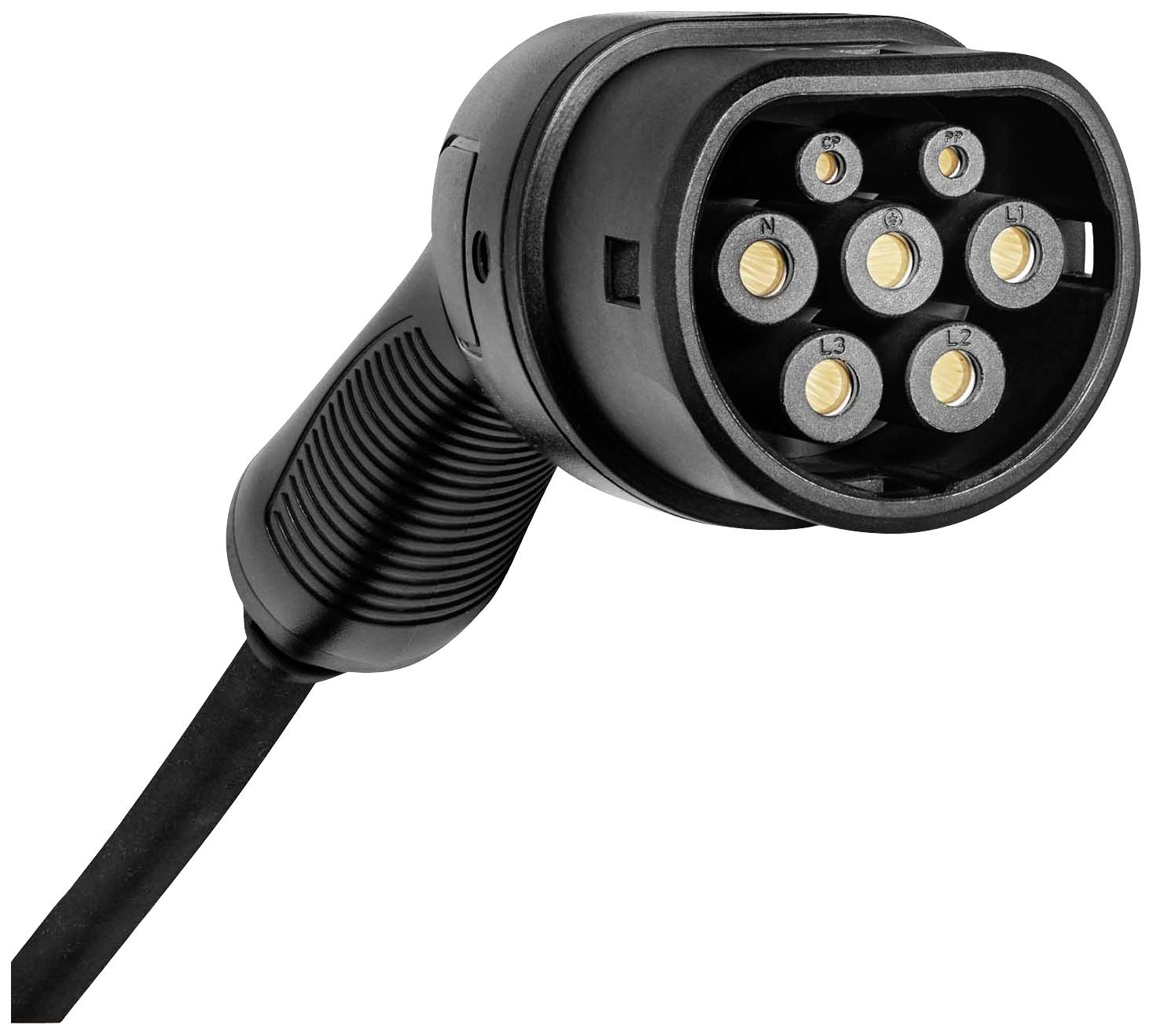

- Power supply cable: Type 2 (IEC 62196-2) jack
- Product Colour: White
- Product dimensions (L x W x H) 90 x 180 x 180 mm
- Net weight: 3180 g
- Grounding: Yes
- Cable length 5 m + 0.75 m
- Material of the cable: Copper
- Packaging dimensions (L x B x H) 235 x 275 x 405 mm
- Gross weight 3975 g
- Power supply voltage 380-440 V/50/60 Hz
- Maximum power: 11 kW
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- Operating temperature -35 to +50 °C
- Packaging: Cardboard box
- Manufacturing material: ABS
- OPP fuse: Yes
- SCP fuse: Yes
- Flame protection UL94V-0
- IP rating: IP54
- MTBF 10000 h
- Product type
Charging station
- Charger connectors
Type 2
- Charging capacity
11 kW
- No. of phases
3-phase
- Nominal voltage
440 V AC
- Cable length
5 m
IP54
- Factory colour
White
- Length
90 mm
- Width
180 mm
- Height
180 mm
- Weight
3180 g
- Nominal current
16 A
- Type B
Type 2 (IEC 62196-2) socket
Copper
Documents & Downloads
Datasheet
Datasheet 3137216 Akyga AK-EC-21 Charging station Type 2 11 kW
User & Safety Instructions
User & Safety Instructions 3137216 Akyga AK-EC-21 Charging station Type 2 11 kW
Description
The Akyga® AK-EC-21 Electric Car Charging Station is a device that allows quick charging with three-phase power. The integrated Type 2 plug (IEC 62196-2) allows a maximum current of 16 A, WAS corresponds to a charging power of up to 11 kW. The charging station, also known as a Wallbox, is compatible with a variety of electric vehicles and thus offers flexibility and comfort.
For maximum user comfort, the charging station is equipped with a 5 meter cable, which offers a lot of freedom while charging and allows the vehicle to be placed at a suitable distance from the station. Two RFID-cards included in the delivery guarantee a safe use, in which they control the access to the charging station. In addition, the Wallbox offers a practical wall bracket, with which the device can be mounted simply and space-saving.

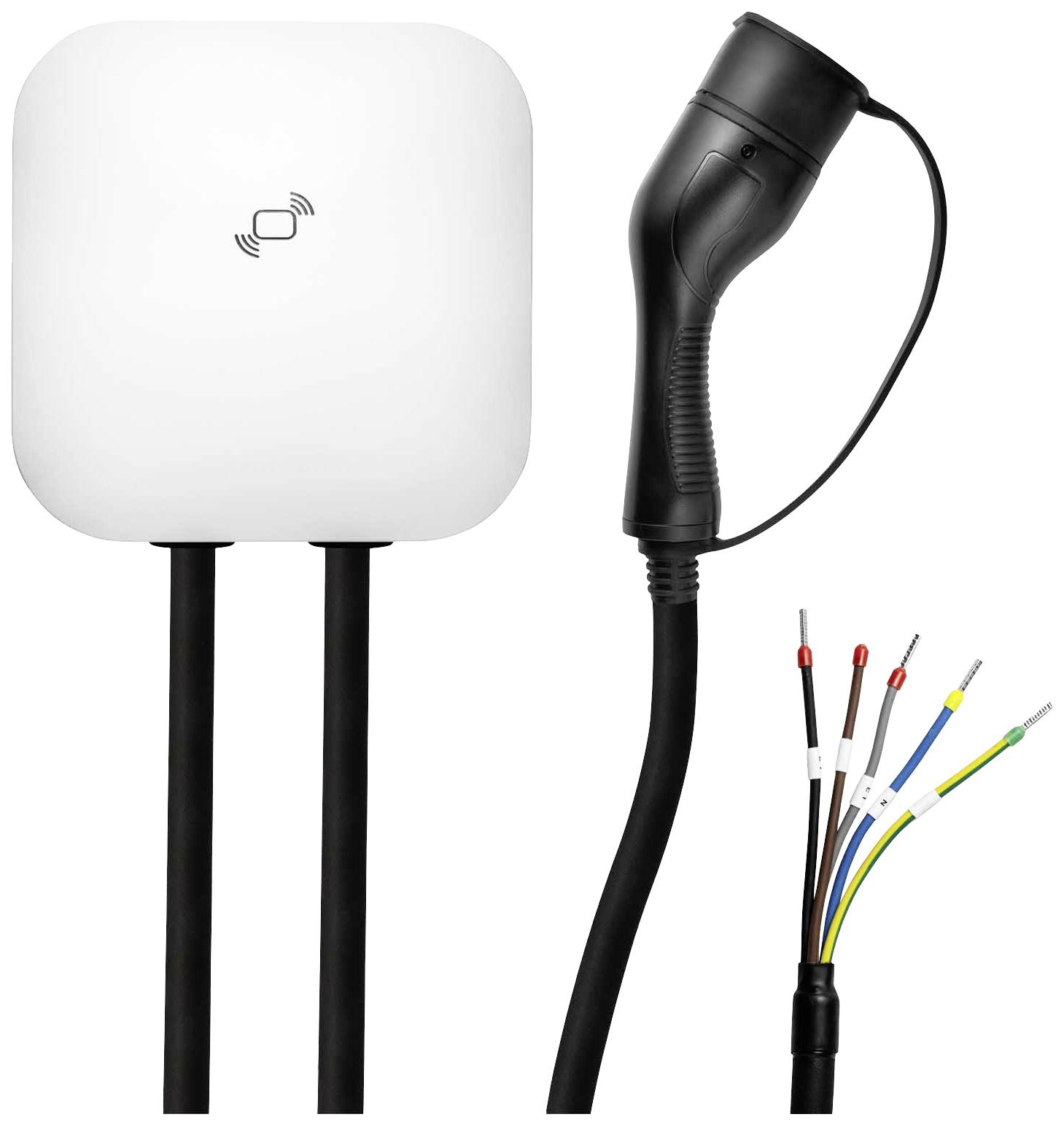

The AK-EC-21 electric car charging station has specially prepared cables for connection to the electrical installation that allow easy installation and quick start-up of the charging station. In addition, the Wallbox is the ideal choice for all, who are looking for an efficient and easy-to-use solution for charging electric cars at home.
This text is machine translated.
For maximum user comfort, the charging station is equipped with a 5 meter cable, which offers a lot of freedom while charging and allows the vehicle to be placed at a suitable distance from the station. Two RFID-cards included in the delivery guarantee a safe use, in which they control the access to the charging station. In addition, the Wallbox offers a practical wall bracket, with which the device can be mounted simply and space-saving.
The AK-EC-21 electric car charging station has specially prepared cables for connection to the electrical installation that allow easy installation and quick start-up of the charging station. In addition, the Wallbox is the ideal choice for all, who are looking for an efficient and easy-to-use solution for charging electric cars at home.
This text is machine translated.
