Brennenstuhl 1384020 eMobility charging cable Type 2 Mode 2 16 A 11 kW
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 474.79 / piece)
€ 474.79
plus VAT.
Highlights & Details
EV portable battery charger type 2 - CEE 11kW (Mobile Wallbox with 8m and carrying case, 16A, IP44, display with charging information)
- The portable EV charger type 2 on CEE offers a range of 8 m flexibility at the charging location and a maximum charging power of 11 kW for quick charging - plug & play design for convenient charging without installation
- For an efficient charging procedure, the maximum charging current can be changed between 8, 10, 13 and 16A - in addition the timer function enables a delay of the charging start over the selected period (1,2,4,6,8 or 10 hours).
- The-phase 3-16A-charger mode 2 according to IEC 61851-1 with ICCB for electric vehicles is manufactured strictly according to the standard IEC 62752 and is protected against over/under voltage, overload, fault current and excess temperature

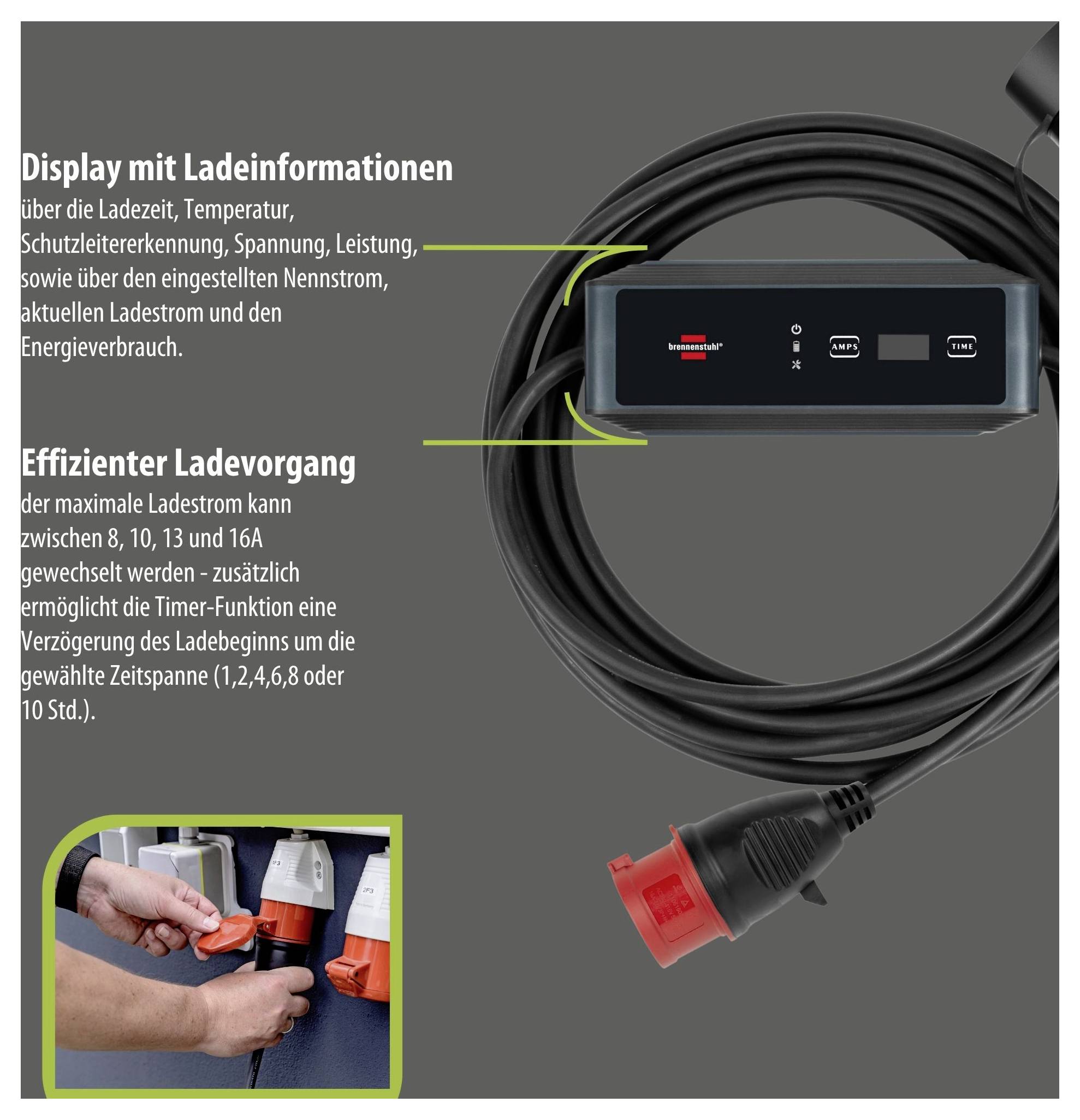

- The EV charging cable is equipped with a display that provides basic charging information about charging time, temperature, protective conductor detection, voltage, power, as well as the adjusted nominal current, current charging current and energy consumption

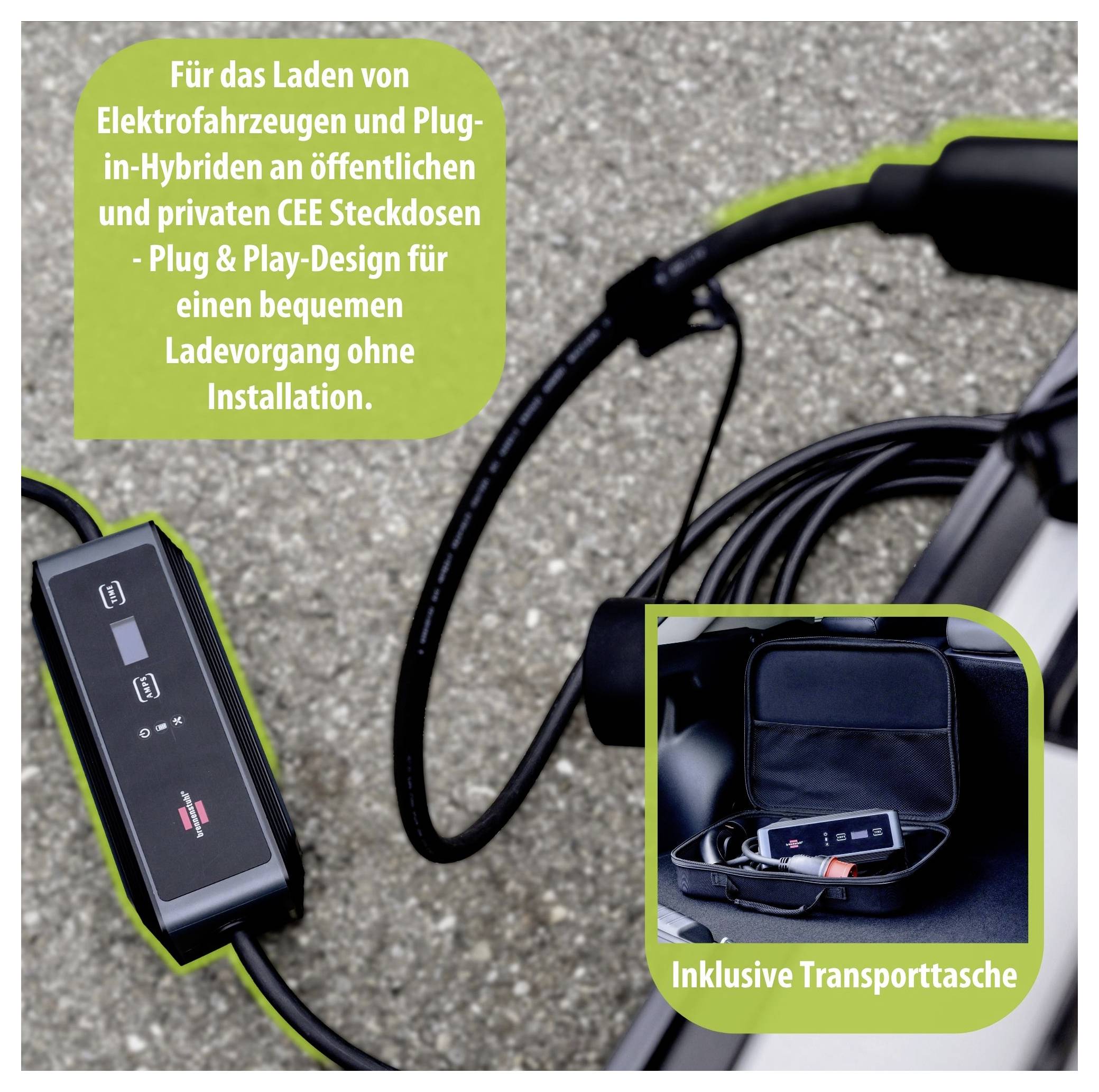

- The mobile Wallbox is delivered with a carrying case so that it can be transported easily and stored safely - mobile, ready-to-plug solution for charging the electric vehicle at a conventional CEE socket
Technical specifications
- Cable name: Other
- Cable length: 8 m
- With FI switch: No.
- Oil resistant: Yes
- Connection: Other
- Protection type (IP) IP44
- Suitable for outdoor use: Yes
- Product width (excluding packaging): 37 cm
- Product weight (excluding packaging): 3.50 kg
- Product height (excluding packaging): 10.50 cm
- Product length (without packaging): 48.50 cm
- UV-resistant: Yes
- Product type
eMobility charging cable
- Charger connectors
Type 2
- Charging mode
Mode 2
- Charging current
16 A
- Charging capacity
11 kW
- No. of phases
3-phase
- Nominal voltage
380 V AC
450 V AC
- Cable length
8 m
IP44
- Factory colour
Black
- Length
48.50 cm
- Width
37 cm
- Height
10.50 cm
- Weight
3.5 kg
- Max. temperature
-30 °C
- Min. temperature
50 °C
- Version
Mains cable
- Cable use
Current
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3439035 Brennenstuhl 1384020 eMobility charging cable Type 2 Mode 2 16 A 11 kW
User & Safety Instructions
User & Safety Instructions 3439035 Brennenstuhl 1384020 eMobility charging cable Type 2 Mode 2 16 A 11 kW
User & Safety Instructions 3439035 Brennenstuhl 1384020 eMobility charging cable Type 2 Mode 2 16 A 11 kW
Warranty Terms
Warranty Terms 3439035 Brennenstuhl 1384020 eMobility charging cable Type 2 Mode 2 16 A 11 kW
Description
The portable EV charger type 2 - CEE 11kW with 8m length of Brennenstuhl enables easy, quick and three-phase charging at CEE sockets. For an efficient charging process the rated current can be changed between 8, 10, 13 and 16A according to the user requirements. The timer function also enables a delay of the charging start over the selected period (1,2,4,6,8 or 10 hours), so that lower electricity prices can be used at night. The display provides basic charging information via the charging time, temperature, earthing conductor detection, voltage, power, as well as the adjusted nominal current, current charging current and energy consumption. For easy portability and secure storage, the charging cable is delivered with a practical transportation bag. With its robust features, easy to use and convenient bag, it is a reliable solution for owners of electric cars looking for a high-quality charging solution. In addition, the Type 2 on CEE charger convinces by the following features:
* Protection against over/under voltage, overload, residual current, over temperature
* Type 2 coupling manufactured in accordance with IEC 62196-2
* The type 2 coupling is non-slip according to IEC 62196

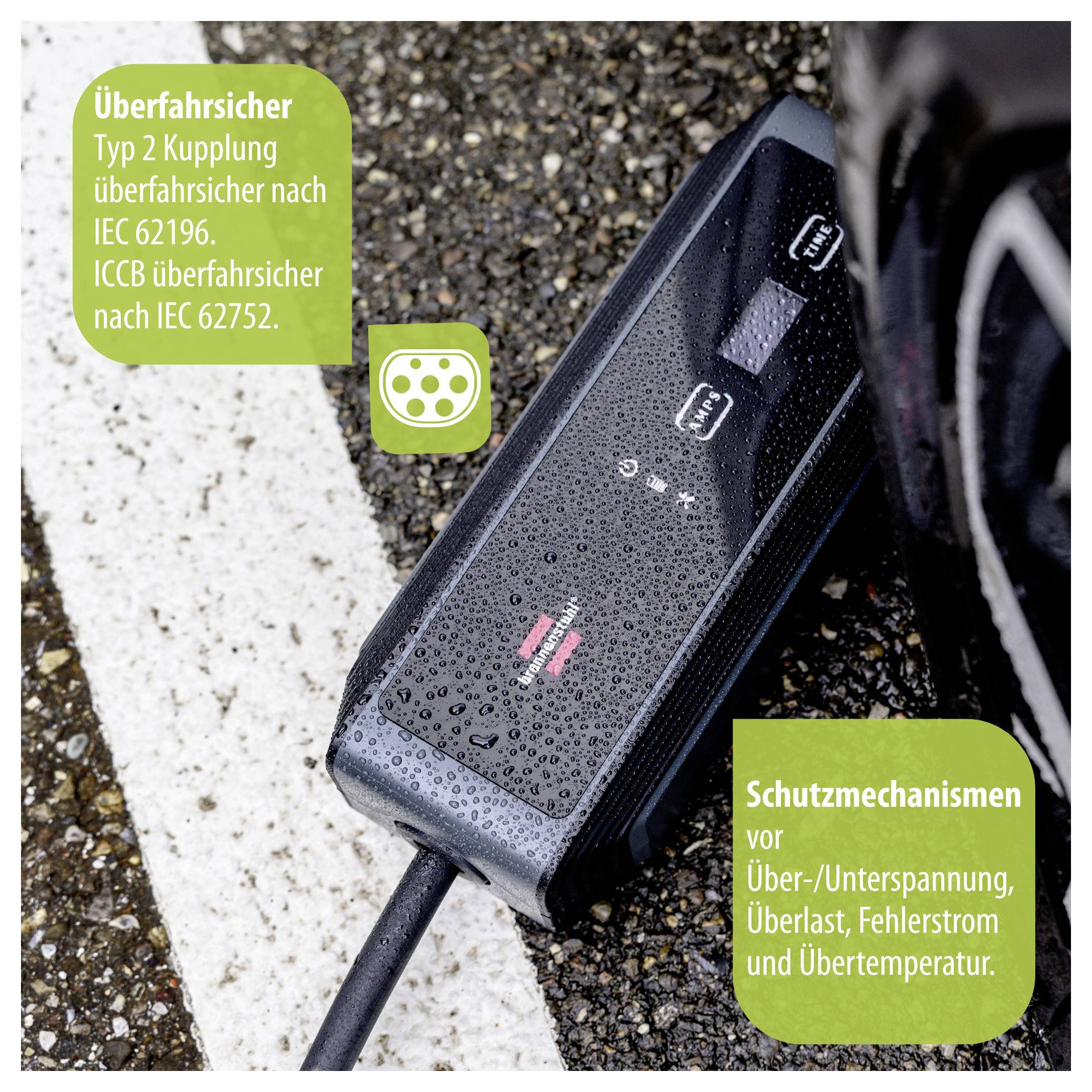

* The ICCB is safe to drive over according to IEC 62752
* Protective conductor monitoring can be deactivated
* Maximum charge capacity: 11kW
* Phases: 3-phase
* Cable length: 8m
* Charging current: 8-10-13-16A
* Input voltage: 380-450V AC
* Ambient temperature: -30°C - +50°C.

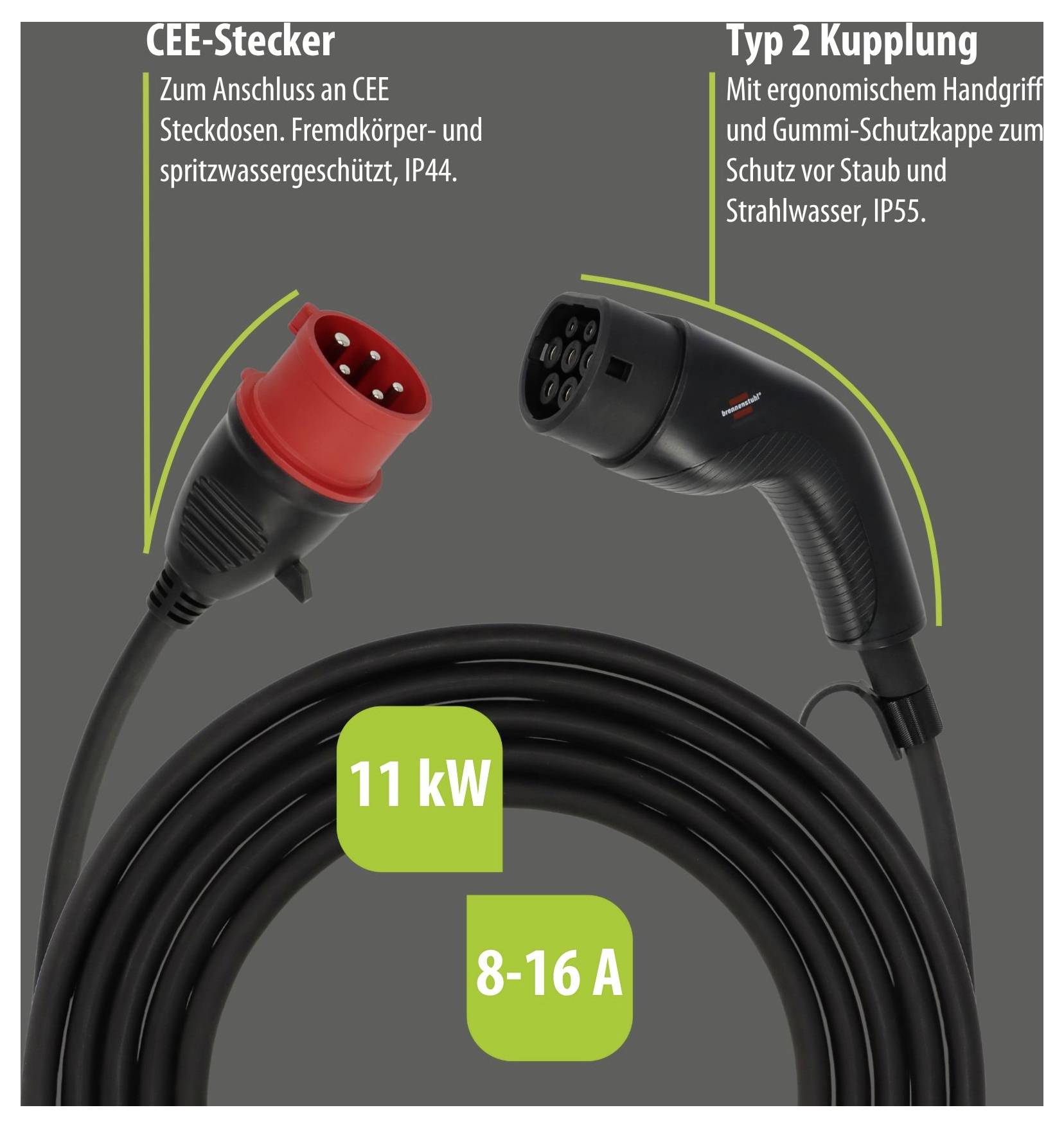

* Protection class CEE plug: IP44
* Protection class type 2 coupling: IP55
* Protection class of control box: IP65
This text is machine translated.
* Protection against over/under voltage, overload, residual current, over temperature
* Type 2 coupling manufactured in accordance with IEC 62196-2
* The type 2 coupling is non-slip according to IEC 62196
* The ICCB is safe to drive over according to IEC 62752
* Protective conductor monitoring can be deactivated
* Maximum charge capacity: 11kW
* Phases: 3-phase
* Cable length: 8m
* Charging current: 8-10-13-16A
* Input voltage: 380-450V AC
* Ambient temperature: -30°C - +50°C.
* Protection class CEE plug: IP44
* Protection class type 2 coupling: IP55
* Protection class of control box: IP65
This text is machine translated.
Scope of delivery
- Brennenstuhl portable EV charger type 2 - CEE 11kW (Mobile Wallbox with 8m cable, 16A, IP44, 3-phase, display, Adjustable charging current for electric & hybrid vehicles BEV/PHEV, with carry bag)
