Buy Sygonix Mobile charging station Type 2 Mode 2 16 A 11 kW

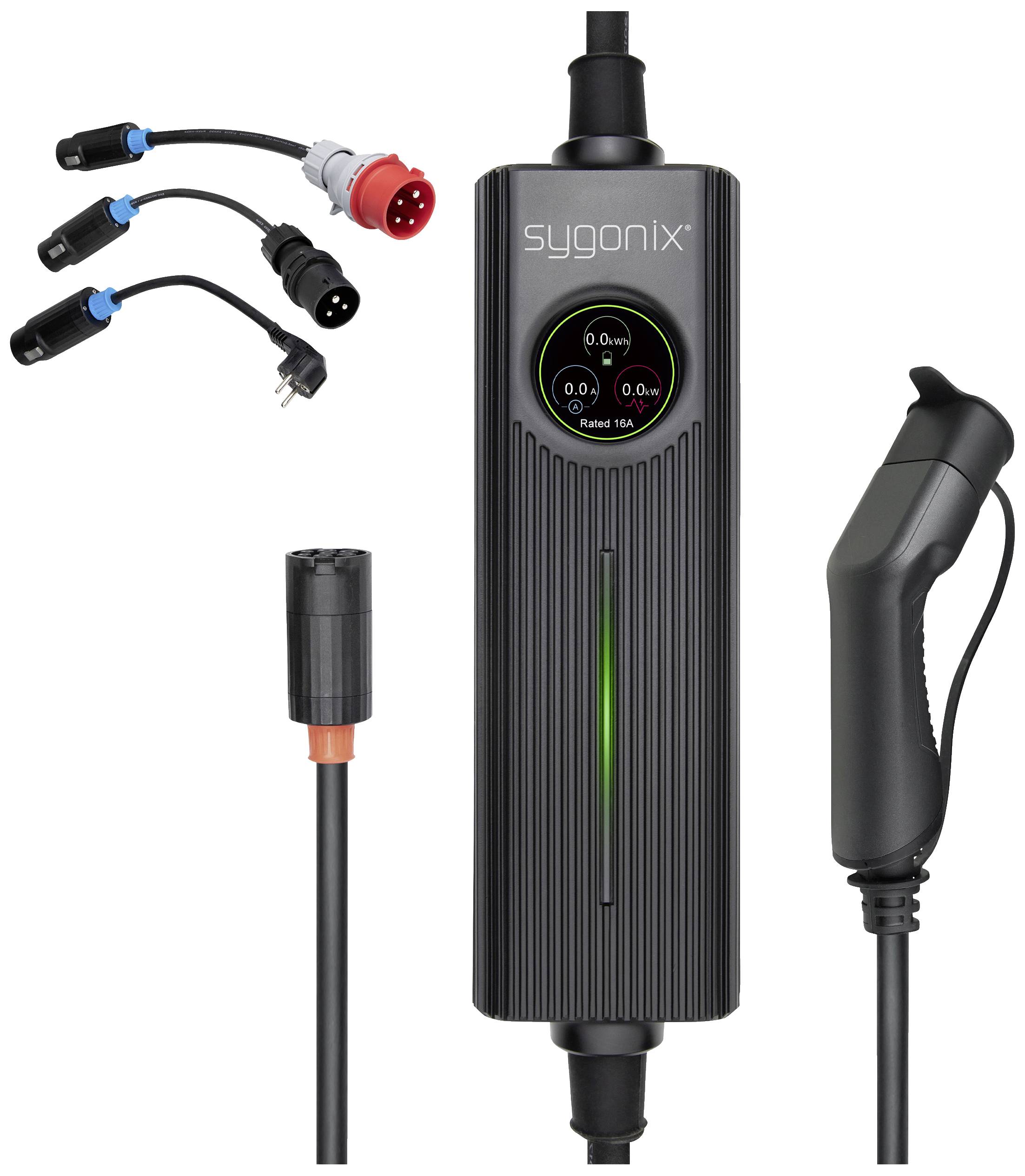

A portable charger by sygonix for electric vehicles with multiple plug connections and a display for charging status.

A charging cable for electric vehicles with various plugs for different connections, suitable for mobile charging.

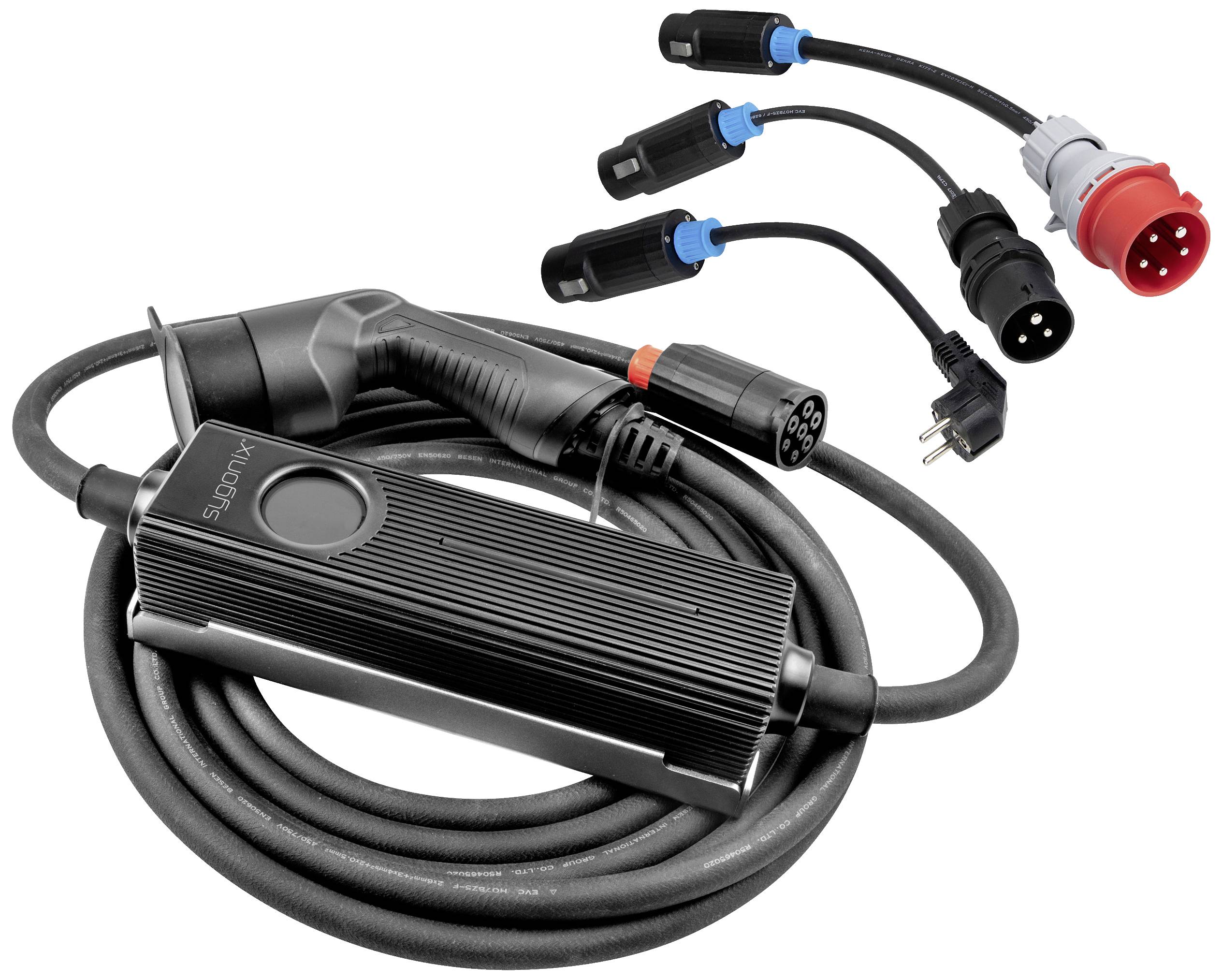

Electric vehicle charging cable with multiple plug adapters for different socket types. Suitable for flexible charging on the go.

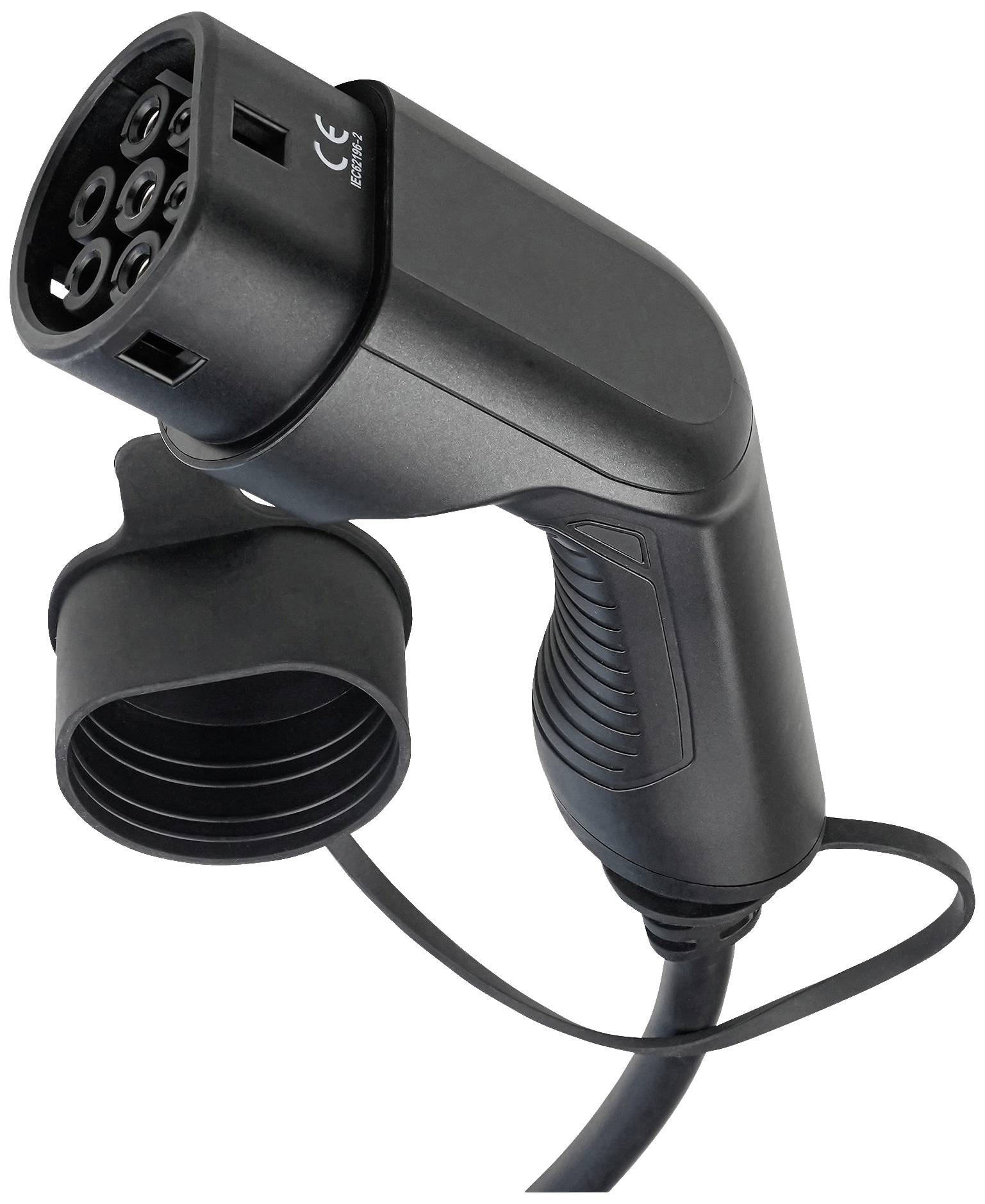

Black and ivory-coloured electric vehicle charging plug with a protective cap, showing a side view of the plug and connected cable.

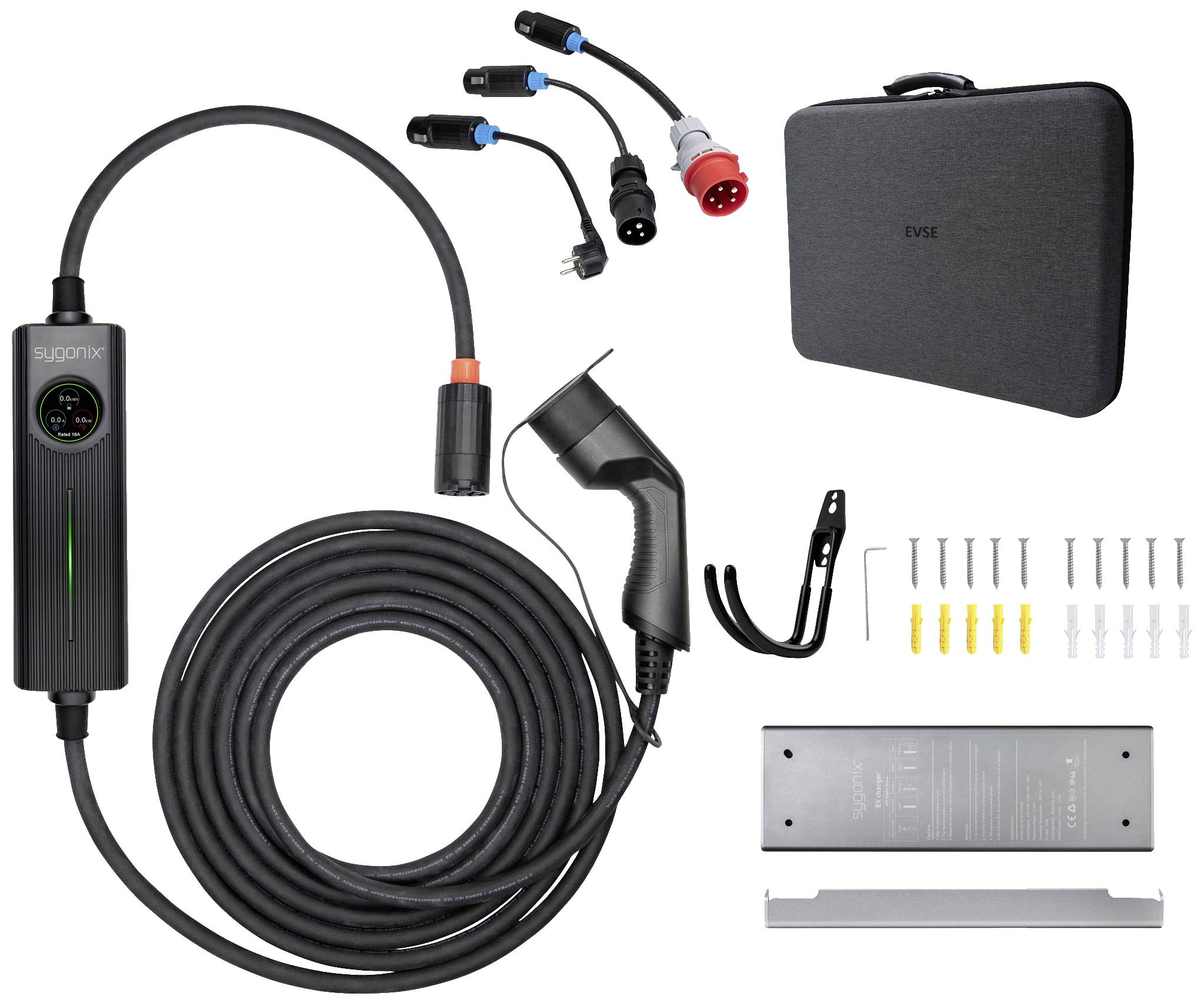

Electric vehicle charging cable set with various adapters, wall mount, screws, and carry bag.

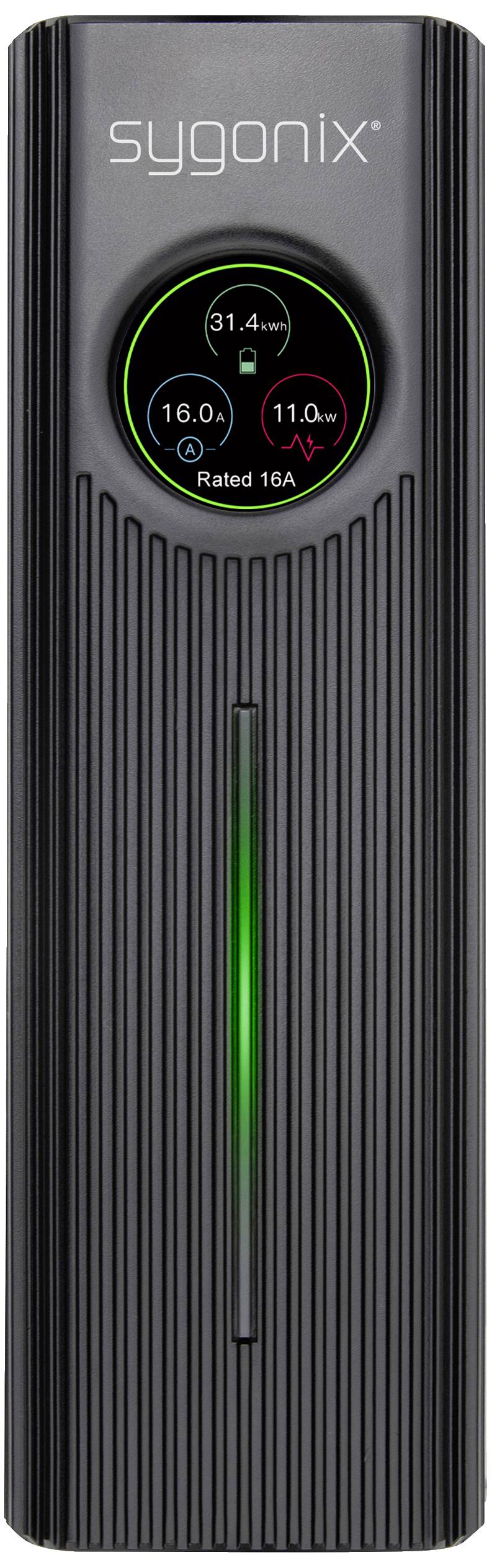

Black sygonix charger with digital display showing current, voltage, and power. LED bar illuminates green.

A grey electric car is being charged in a futuristic garage. Neon lights illuminate the room and the charging station.

A grey electric car is being charged in a futuristic environment, with a charging cable running from a wall station to the vehicle.

A silver electric car is charging in a modern garage. Mountains are visible through a window in the evening light in the background.

A grey electric car is charging at a charging station in a modern, minimalist environment with mountains in the background.

An electric car is parked in a modern garage and is being charged at a wall-mounted charging point. Twilight scene with violet lighting.

A grey electric car is being charged at a charging station in a modern setting, with mountains visible in the background.

1/12

Our service for you

Fast track dispatch on Fri, 18 Sep

86 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 508.40 / piece)

€ 508.40

plus VAT.

Report legal concerns

Highlights & Details

Mobile charging station Traveler, 11 kW, Type 2

Portable design
Universal adapter kit for different sockets, Type 2 plug
Output power: max. 11 kW (3 phase)
Adjustable phase, current, time and delay setting

Technical specifications

Maximum output power 3.6 kW (1 phase); 11 kW (3 phase)
Maximum current 16 A (1 phase); 16 A (3 phase)

Product type: Mobile charging station

Charger connectors: Type 2

Charging mode: Mode 2

Charging current: 16 A

Charging capacity: 11 kW

No. of phases: 1- & 3-phase

Nominal voltage: 230 V
400 V

Cable length: 6 m

: IP20
IP66
IP54

Factory colour: Black

Width: 300 mm

Height: 66 mm

Depth: 86 mm

Weight: 7.5 kg

Nominal current: 16 A

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2739816 Sygonix Mobile charging station Type 2 Mode 2 16 A 11 kW

Warranty Terms

Warranty Terms 2739816 Sygonix Mobile charging station Type 2 Mode 2 16 A 11 kW

Description

The mobile charging station Traveller can be used universally thanks to the supplied power supply unit with various plug formats and type 2 plugs. The charger recognizes the adapter and the respective current limit automatically. The charging station has a maximum charging power of 11 kW. It can be operated via LCD touch display and you can read the current charging status via the LED display.

This text is machine translated.

Features

3 socket adapters:
CEE red, max. 16 A (three phase)
CEE black, max. 16 A (single phase)
SCHUKO CEE 7/7 plug, max. 16 A
Universal adapter with automatic recognition (the charger automatically recognizes the adapter and corresponding current limit)
Overvoltage protection
Undervoltage protection
Overload protection
Short circuit protection
Earth leakage protection
Over-temperature protection
Lightning protection
LED indicator light for charging status
Touch LCD display
IP rating: IP20 (plug), IP66 (control box), IP54 (EV connector)
EV connector rating: IP54

Scope of delivery

EV charger
3x Socket adapters
Bracket
Accessories for charger bracket:
5x Screws
5x Dowels
1x L-shape spanner
Accessories for cable bracket:
5x Screws
5x Dowels
Bag
User manual
