Brennenstuhl 1384010 EV charging station Type 2 Mode 2 10 A No. of ports 2 x 2.3 kW none
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
14-day return policy included
Highlights & Details

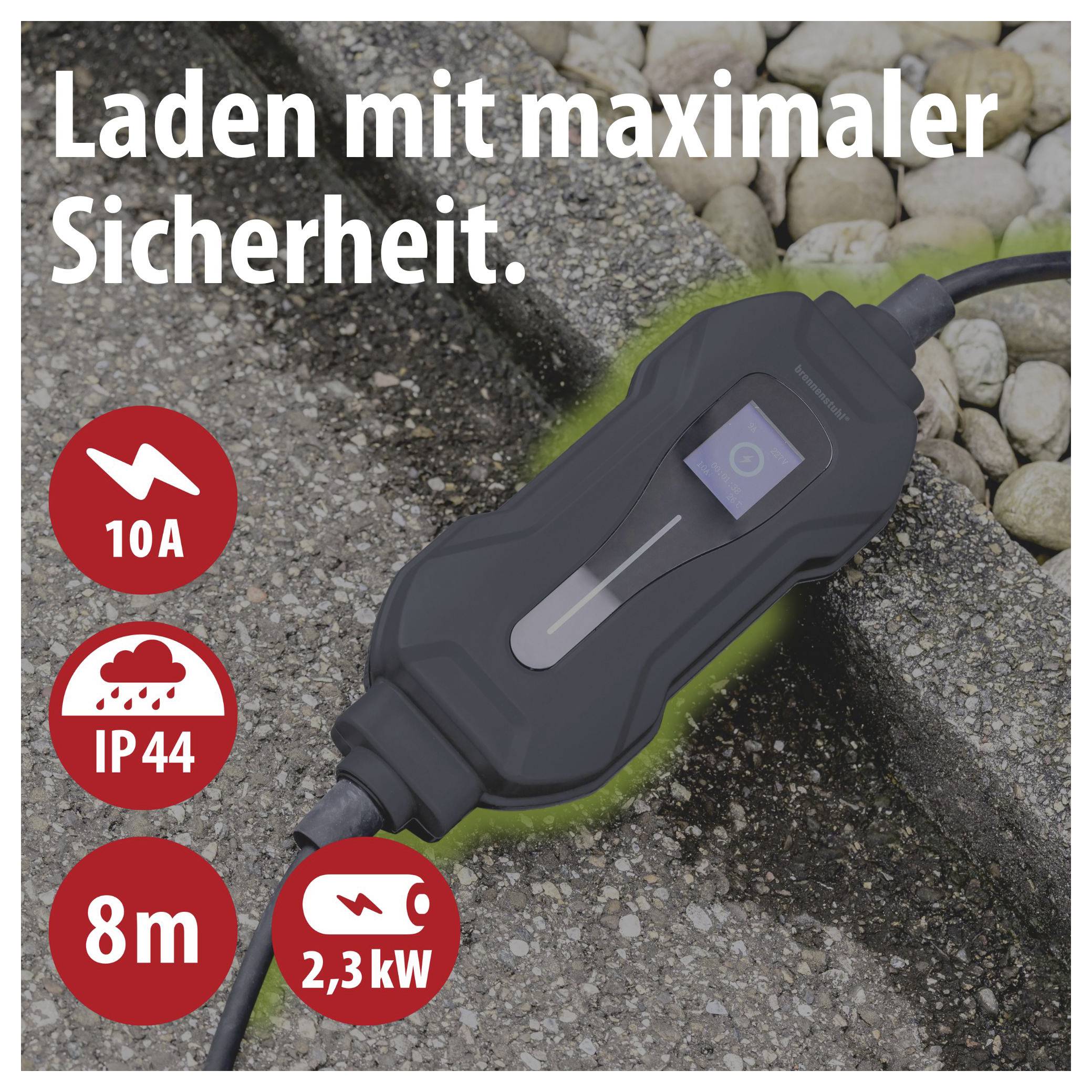

Type 2 portable EV charger - 10A, 2.3kW, IP44, single phase, display with charging information, for BEV/PHEV electric & hybrid vehicles
- The portable EV charger type 2 - protective contact offers a range of 8 m flexibility at charging locations and a maximum charging current of 10A for a safe charging - plug & play design for convenient charging without installation
- The single-phase 2 10A charger mode according to IEC 61851-1 with ICCB with a maximum charging power of 2.3kW for electric vehicles is manufactured according to the standard IEC 62752 and is protected against over/under voltage, overload, fault current and excess temperature

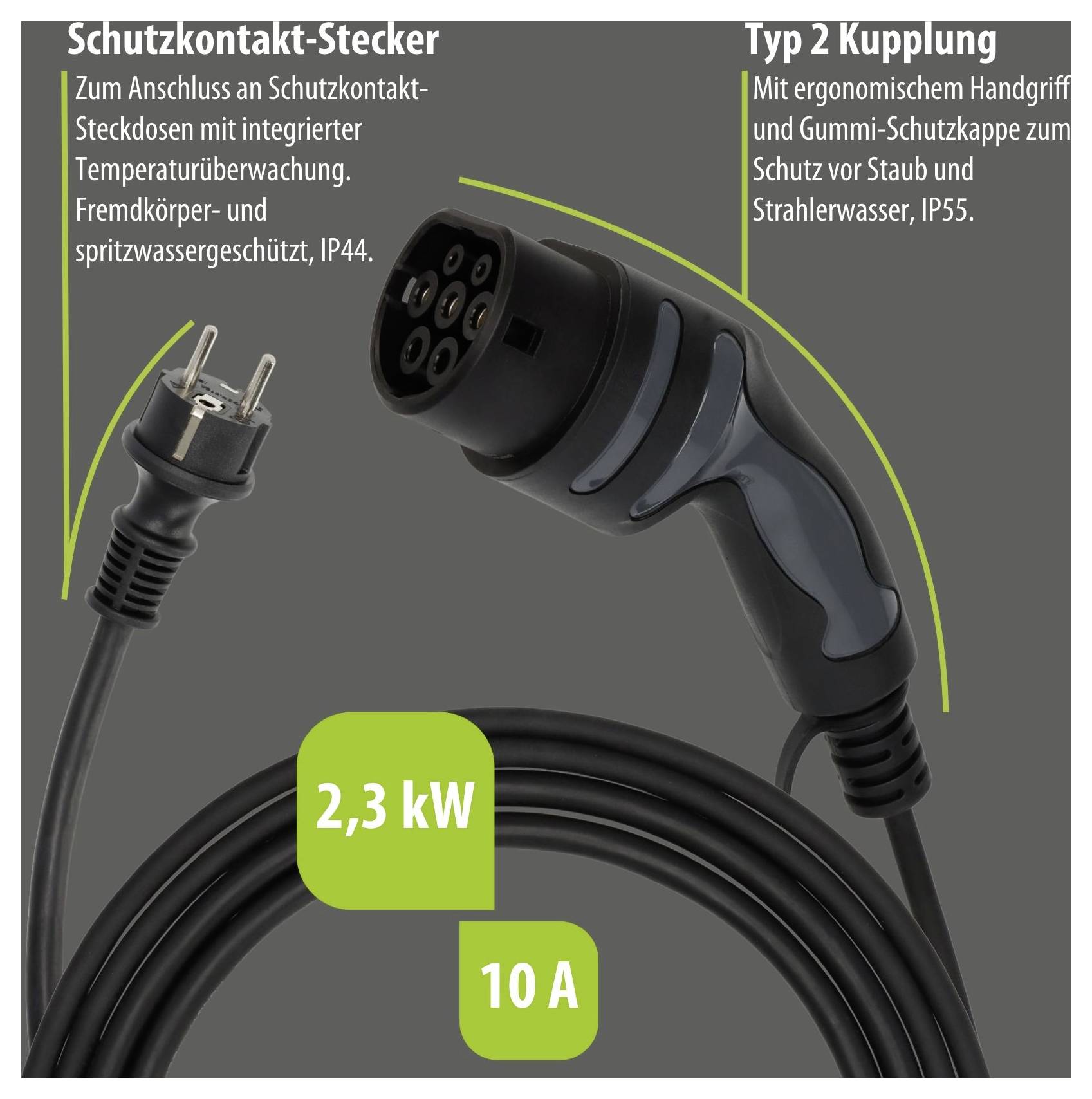

- The charging cable for electric cars is equipped with a safety plug (IP44) with integrated temperature monitoring and a type 2 coupling (IP55)

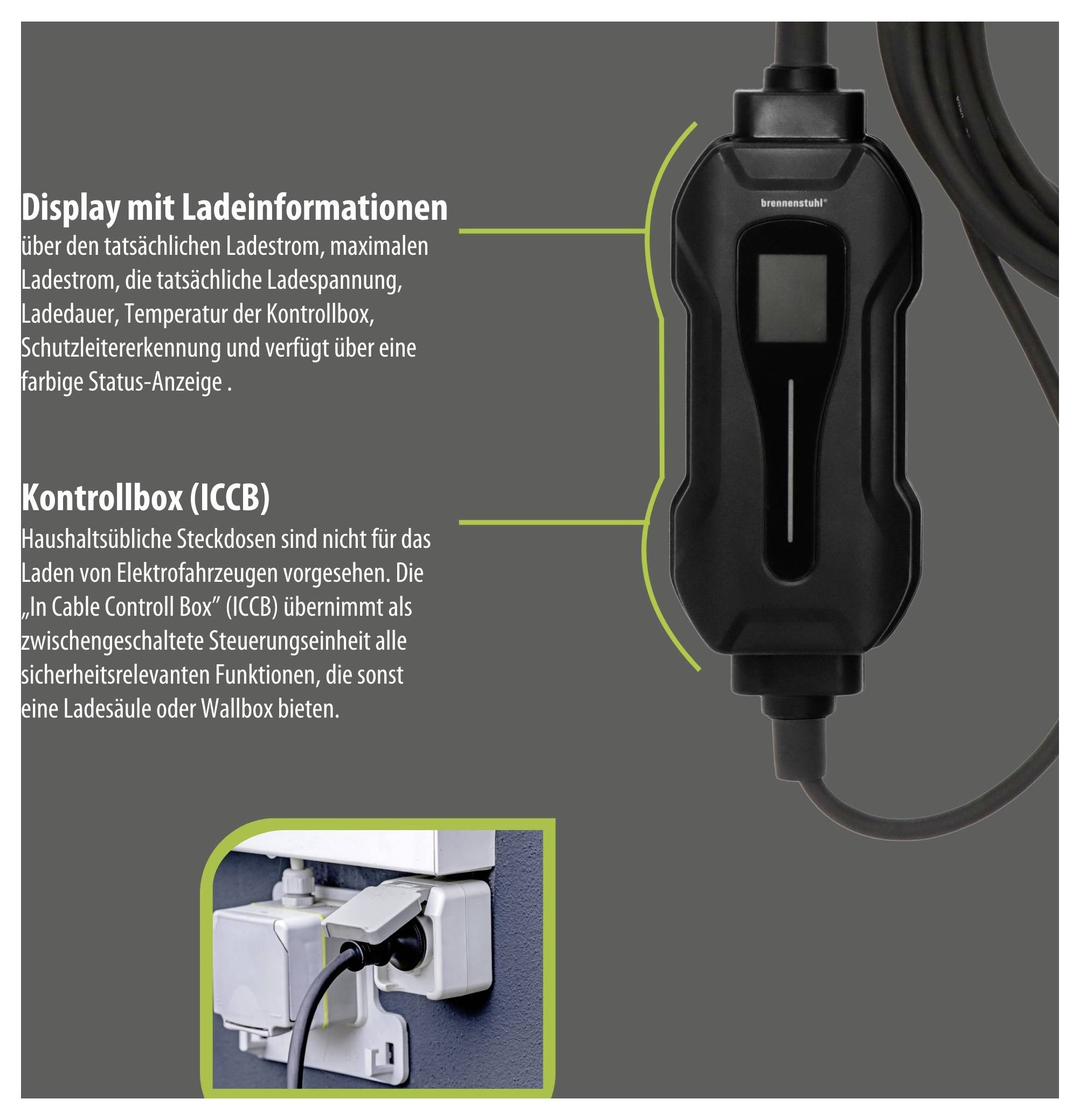

- The display provides basic charging information about the actual charging current, maximum charging current, the actual charging voltage, charging time, temperature of the control box, Earth conductor detection and has a colored status display

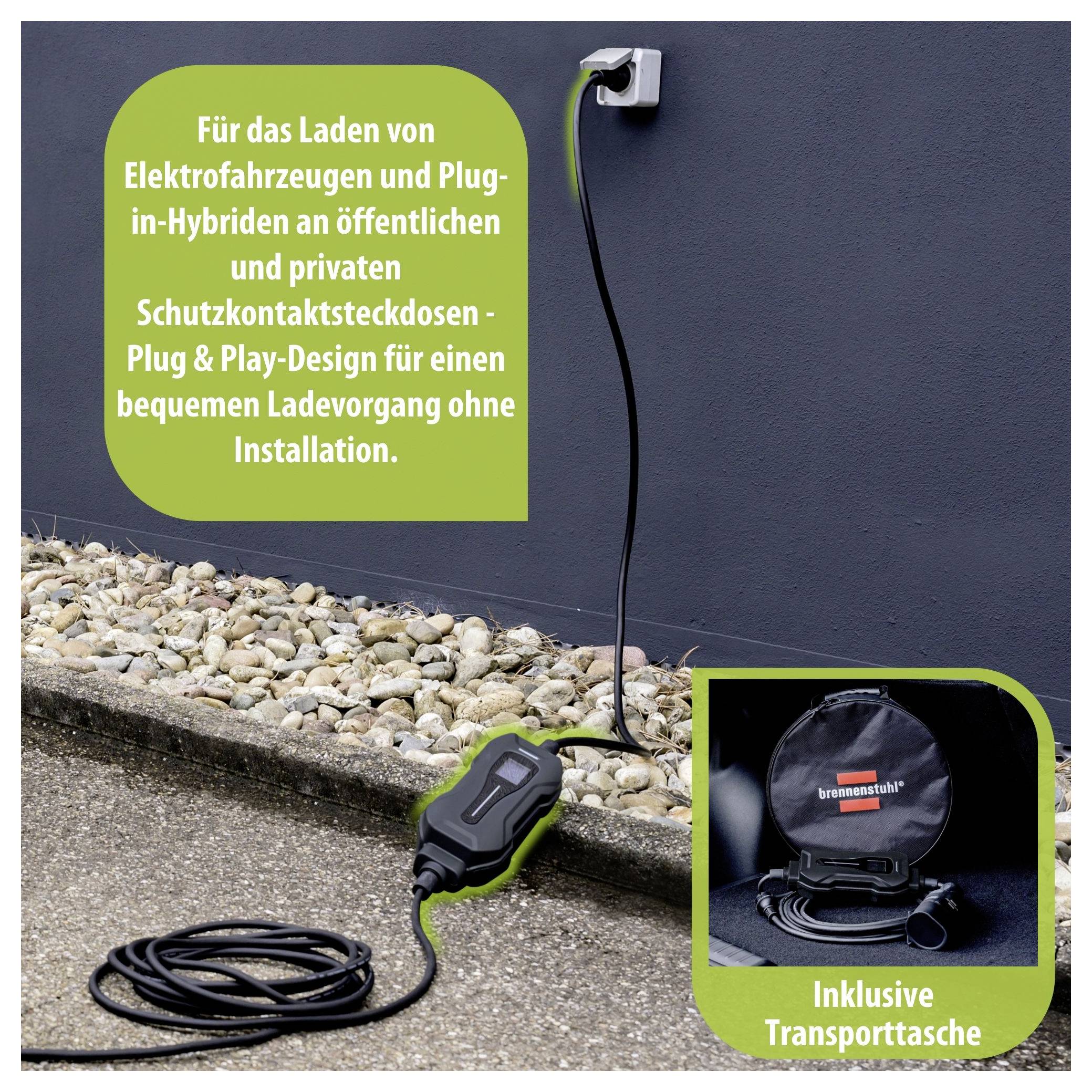

- The mobile charging station is delivered with a carrying case so that it can be transported easily and stored safely - mobile, ready to plug solution for charging the electric vehicle at a conventional earthing contact socket
Technical specifications
- Cable name: Other
- Cable length: 8 m
- Protection type (IP) IP44
- Product width (excluding packaging): 35.50 cm
- Product weight (excluding packaging): 2.20 kg
- Product height (excluding packaging): 7.20 cm
- Product length (without packaging): 35.50 cm
- Product type
EV charging station
- Authorisation
none
- Charger connectors
Type 2
- Charging mode
Mode 2
- Charging current
10 A
- No. of ports
2 x
- Charging capacity
2.3 kW
- No. of phases
1-phase
- Nominal voltage
230 V AC
- Cable length
8 m
IP55
IP44
IP66
- Factory colour
Black
- Length
35.50 cm
- Width
35.50 cm
- Height
7.20 cm
- Weight
2.20 kg
- Max. temperature
-25 °C
- Min. temperature
45 °C
- Version
Mains cable
- Keyboard layout
German, QWERTZ
- Cable use
Current
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3439030 Brennenstuhl 1384010 EV charging station Type 2 Mode 2 10 A No. of ports 2 x 2.3 kW none
User & Safety Instructions
User & Safety Instructions 3439030 Brennenstuhl 1384010 EV charging station Type 2 Mode 2 10 A No. of ports 2 x 2.3 kW none
User & Safety Instructions 3439030 Brennenstuhl 1384010 EV charging station Type 2 Mode 2 10 A No. of ports 2 x 2.3 kW none
Warranty Terms
Warranty Terms 3439030 Brennenstuhl 1384010 EV charging station Type 2 Mode 2 10 A No. of ports 2 x 2.3 kW none
Description
The portable EV charger type 2 - protective contact with 8 m length of Brennenstuhl enables simple, safe and single-phase charging at public and private protective contact sockets. This device is limited to a maximum charging current of 10A, since continuous operation on a standard household socket with 16A is not permitted in Germany. The display provides basic charging information about the actual charging current, maximum charging current, the actual charging voltage, charging time, temperature of the control box, Earth conductor detection and has a colored status display. For easy portability and secure storage, the charging cable is delivered with a practical transportation bag. With its robust features, easy to use and convenient bag, it is a reliable solution for owners of electric cars looking for a high-quality charging solution. In addition, the Type 2 on protection contact Battery charger convinces by the following properties:
* Protection against over/under voltage, overload, residual current, over temperature
* Type 2 coupling manufactured in accordance with IEC 62196-2
* The type 2 coupling is non-slip according to IEC 62196

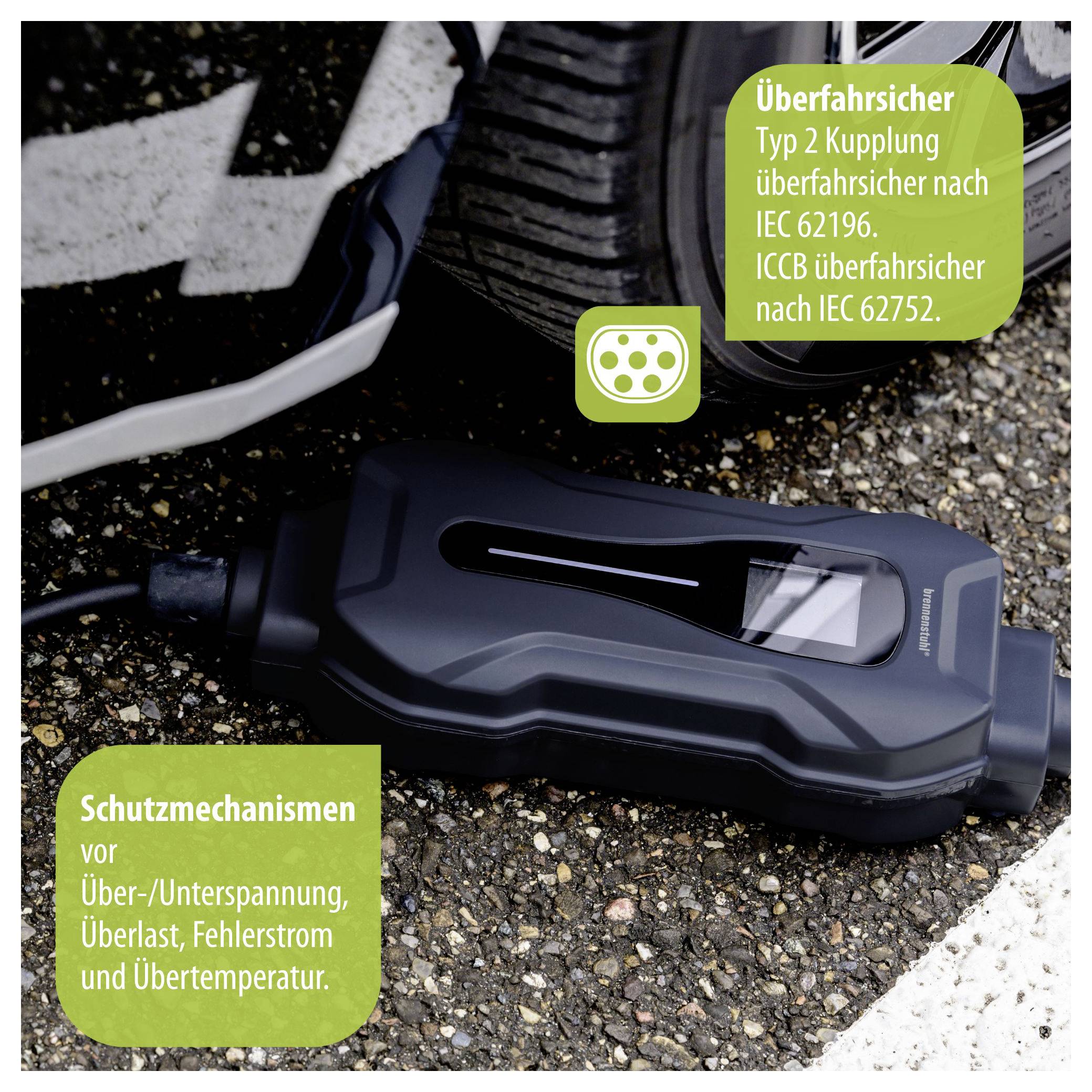

* The ICCB is safe to drive over according to IEC 62752
* Maximum charging capacity: 2.3kW
* Phases: 1-phase
* Cable length: 8m
* Maximum charge current: 10A
Voltage 230V, AC II
* Ambient temperature: -25°C - +45°C.
* Mains plug protection class: IP44
* Protection class type 2 coupling: IP55
* Protection class of control box: IP66
This text is machine translated.
* Protection against over/under voltage, overload, residual current, over temperature
* Type 2 coupling manufactured in accordance with IEC 62196-2
* The type 2 coupling is non-slip according to IEC 62196
* The ICCB is safe to drive over according to IEC 62752
* Maximum charging capacity: 2.3kW
* Phases: 1-phase
* Cable length: 8m
* Maximum charge current: 10A
Voltage 230V, AC II
* Ambient temperature: -25°C - +45°C.
* Mains plug protection class: IP44
* Protection class type 2 coupling: IP55
* Protection class of control box: IP66
This text is machine translated.
Scope of delivery
- Portable EV charger type 2 protective contact, 8 m cable, carrying bag
