Absina Wallbox Type 2 Mode 3 16 A 11 kW App, RFID
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
Only 7 Piece(s) available
Highlights & Details

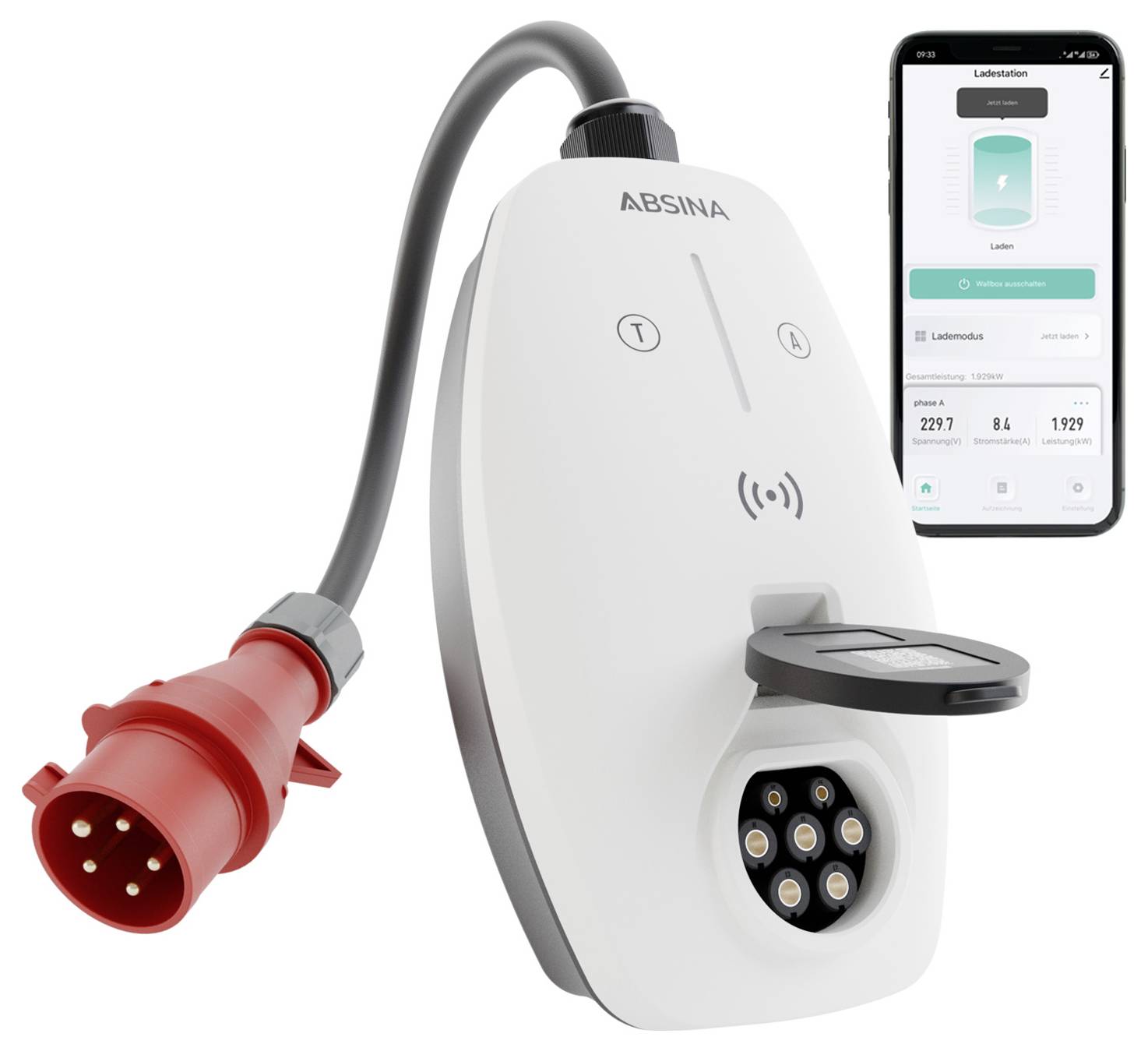

Absina Wallbox Charger

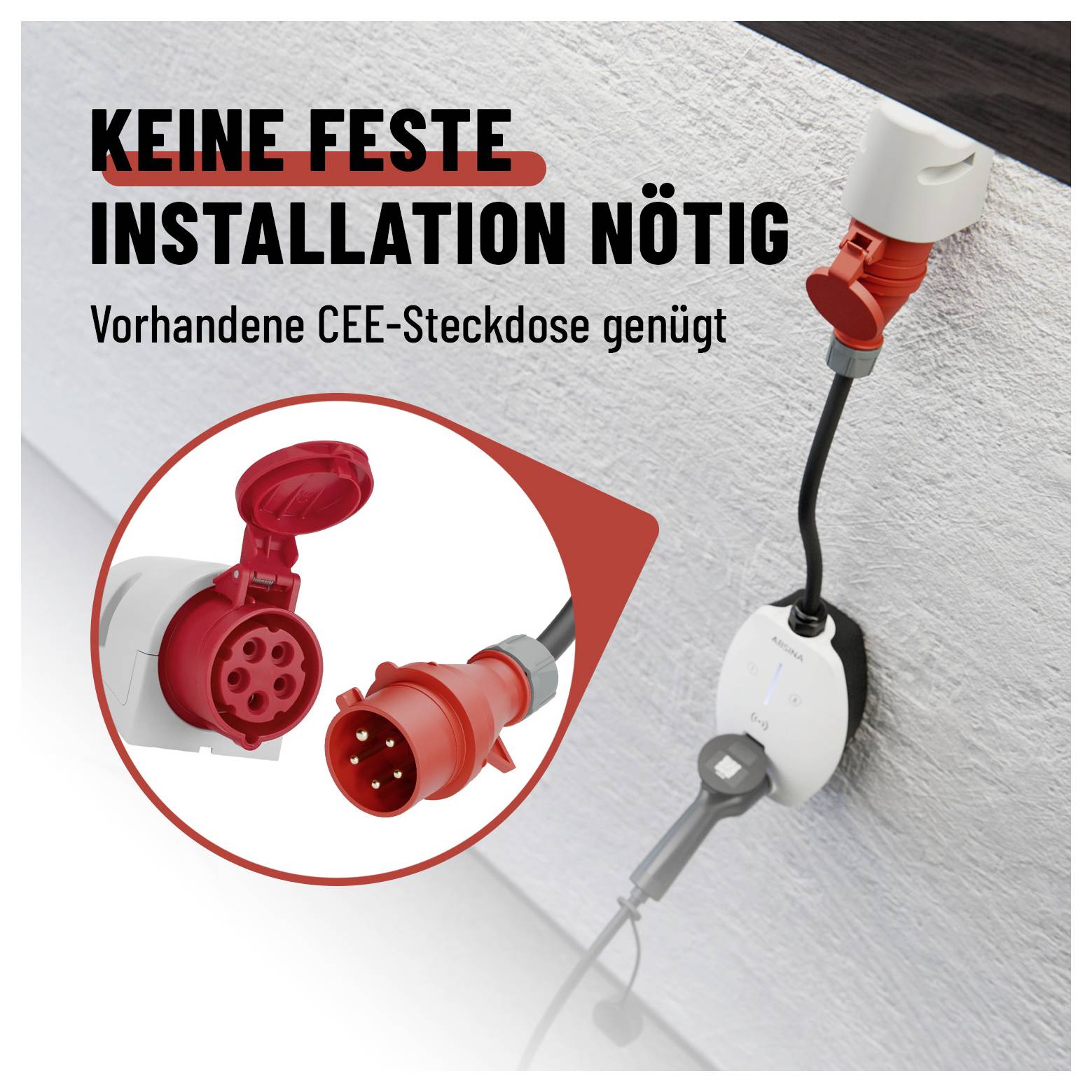

- Mobile charging station Electro-car installation-free with Plug-and-Play
- APP control
- Safe charging thanks to integrated earth leakage circuit breaker
- Compatible with all electric cars & plug in hybrids with a Type 2 connector, such as Model 3.
Technical specifications
- Product type
Wallbox
- Authorisation
App
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
16 A
- Charging capacity
11 kW
- No. of phases
3-phase
- Nominal voltage
400 V
- Cable length
60 cm
IP65
- Certification marks
CEE
- Factory colour
White
- Length
257 mm
- Width
153 mm
- Height
95 mm
- Weight
1500 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3124758 Absina Wallbox Type 2 Mode 3 16 A 11 kW App, RFID
User & Safety Instructions
User & Safety Instructions 3124758 Absina Wallbox Type 2 Mode 3 16 A 11 kW App, RFID
User & Safety Instructions 3124758 Absina Wallbox Type 2 Mode 3 16 A 11 kW App, RFID
Description
Discover the freedom of a reliable and powerful charging solution for your electric vehicle! Our innovative Wallbox offers flexible and efficient charging with a charging power of 11kW and an adjustable charging current from 8A to 16A. With the intuitive App-control you can easily monitor and control the charging process from your Smartphone so that you have full control over the charging status of your vehicle at all times. Moreover, the provided CEE connection cable ensures easy and safe connection to your mains supply.
This text is machine translated.
This text is machine translated.
Features
- Mobile charging station Electric car installation-free with Plug and Play & simple operation by APP - 11kW battery charger Type 2 for traveling or at home.
- APP control allows you to set the charge start, charge delay and charge current (8A to 16A) - the APP also shows the charging voltage in V, charging current in A, charging power in kW, invited energy in kWh, charging time in hours and much more.

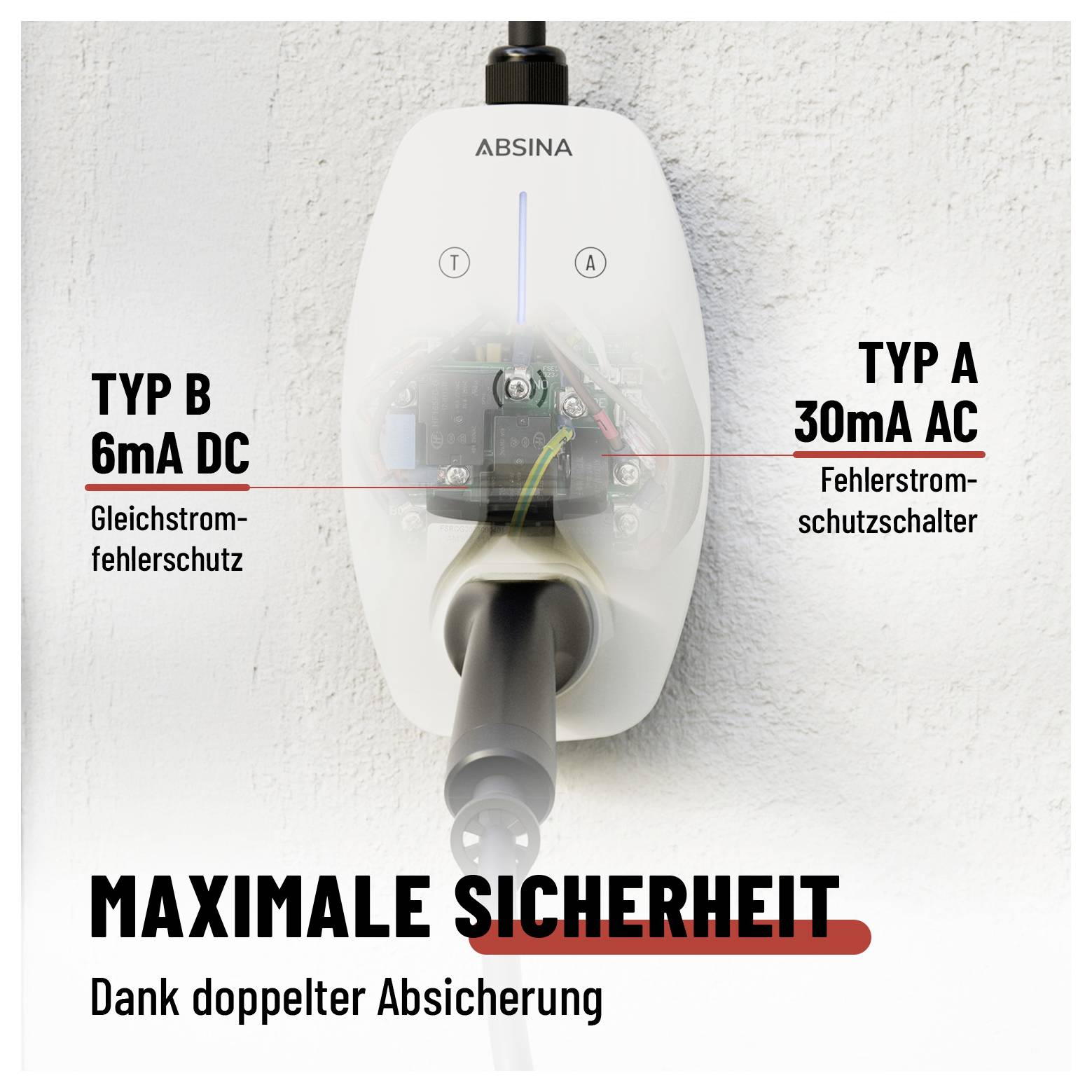

- Safe charging thanks to integrated ground fault circuit interrupter typeA+DC 6mA - waterproof according to protection class IP65 - shock resistance according to IK10 - protection against overvoltage, undervoltage, over-load voltage, temperature & short circuit - flammability class UL94V-0.
- Compatible with all electric cars & plug in hybrids with a Type 2 connector such as Model 3 / e-Up, ID.3, ID.4 / Zoe / Kono / Fortwo / 500 e, 500 / i3, X3 / A4, S4, RS4, A6, S6, RS6, e-tron, Q5 / GLK, GLC/Kuga/Leon/Yaris and many more.
- CEE connection cable 5-pin for simple and safe connection to the mains supply.
Scope of delivery
- Mobile Wallbox 11kW 16A 3-phase

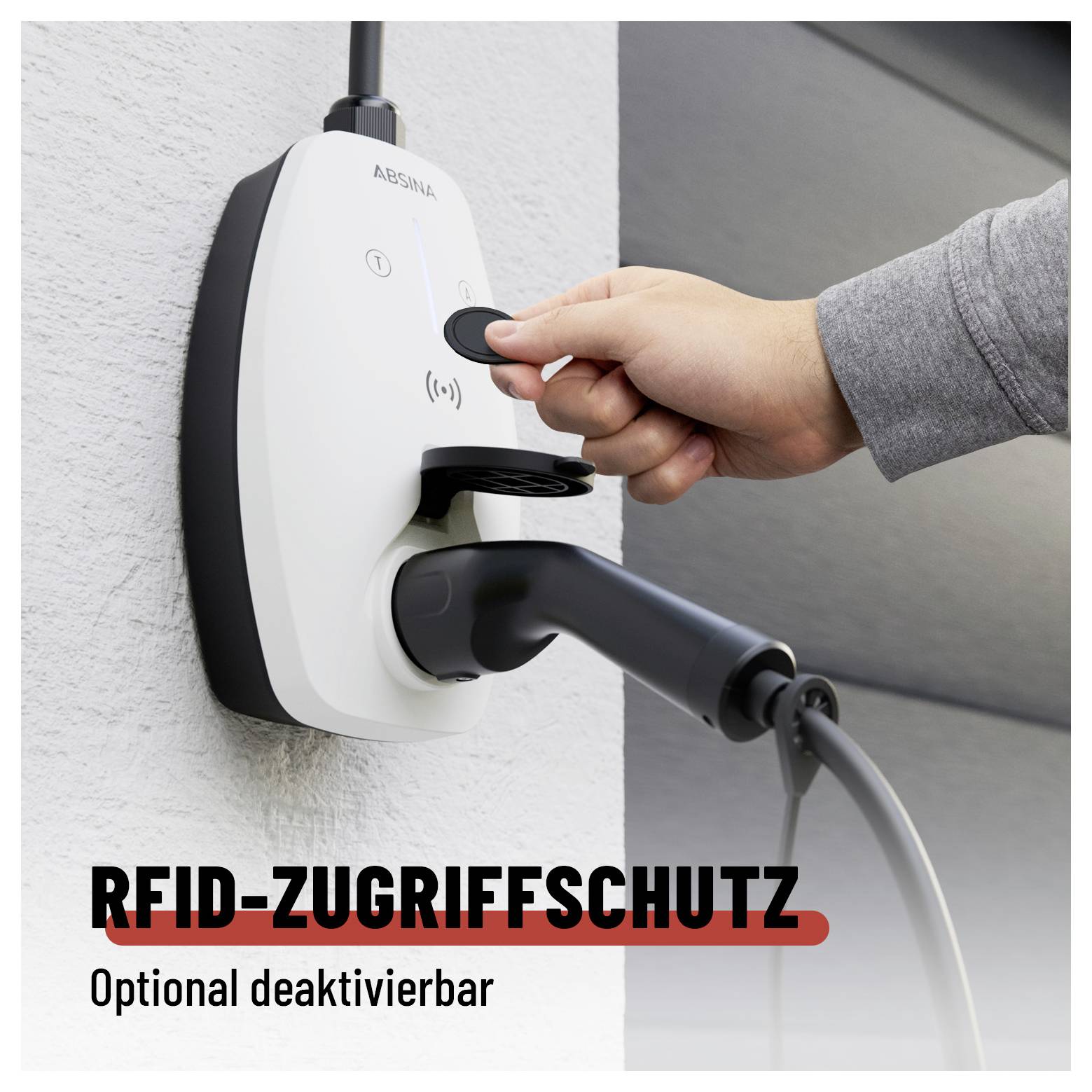

- 3x RFID chip for activating the charging process
- Wall bracket
- Fitting Material
- User manual.
