TechniSat TECHNIVOLT 100 Wallbox Type 2 Mode 3 16 A No. of ports 1 11 kW RFID
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.

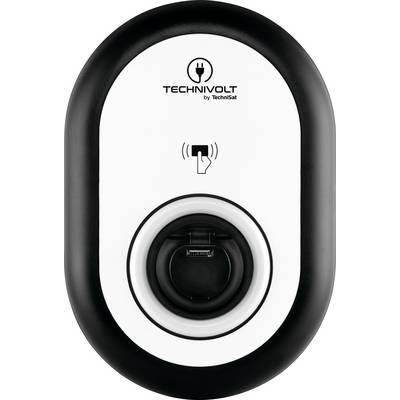

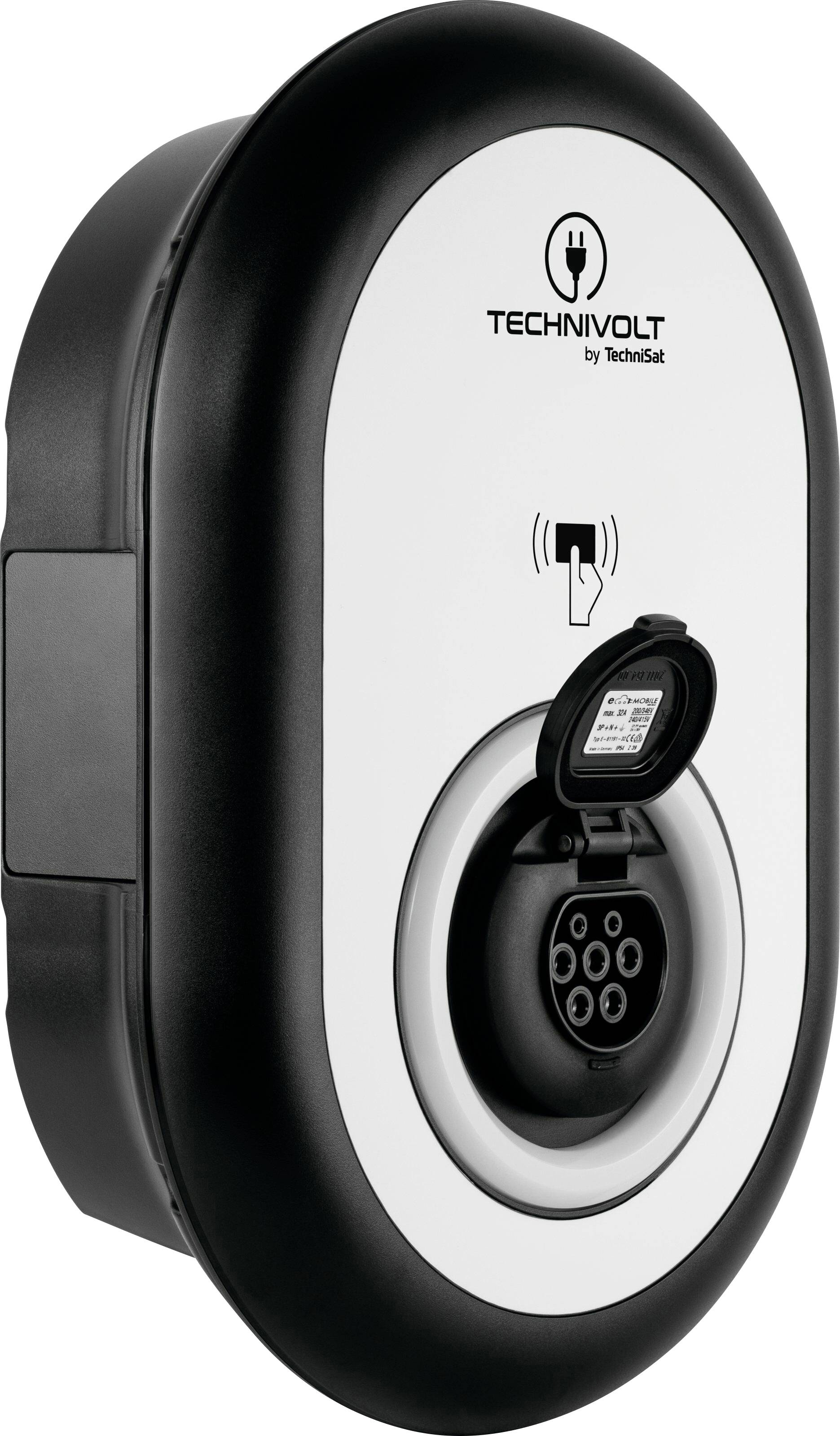

TECHNIVOLT 100 charging station
Highlights & Details
- With integrated charging socket type 2
- IP54 weatherproof
- 11 kW charging output
Technical specifications
- Product type
Wallbox
- Authorisation
RFID
- Charger connectors
Type 2
- Charging mode
Mode 3
- Charging current
16 A
- No. of ports
1
- Charging capacity
11 kW
- No. of phases
1- & 3-phase
- Nominal voltage
230 V
400 V
- Cable length
50 m
IK10
IP54
- Width
215 mm
- Height
460 mm
- Depth
135 mm
- Weight
4.4 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2424648 TechniSat TECHNIVOLT 100 Wallbox Type 2 Mode 3 16 A No. of ports 1 11 kW RFID
User & Safety Instructions
User & Safety Instructions 2424648 TechniSat TECHNIVOLT 100 Wallbox Type 2 Mode 3 16 A No. of ports 1 11 kW RFID
Description
11 kW charging station with integrated charging socket according to IEC 62196-2 type 2.
This text is machine translated.
This text is machine translated.
Features
- Charging mode mode 3 according to IEC 61851
- Charging current 16 A per phase, also single-phase charging possible
- Maximum charging current 16 A per phase
- Maximum charging power 11 kW
- Cable suspension integrated
- DC fault current detection 6 mA integrated
- RFID function for enabling the loading processes
- Nominal current 16 A, 3-phase
- Mains supply 5 x 4 mm² (50 m), Ø 15 - 21 mm
- Charging connection: Socket type 2, IEC-62196
- Output voltage 230/400 V.
- Housing material: Plastic, flame-proof
- Shock resistance: IK10
- RFID: ISO-14443A/B AND ISO-15693
- Data interface: RS485 Modbus.
