Name: Akyga USB-C adapter 100 W 5 A USB Power Delivery (USB-PD)
Brand: Akyga
SKU: 2865352
Availability: InStock

A black 90-degree adapter with a USB-C socket and a round pin connector.

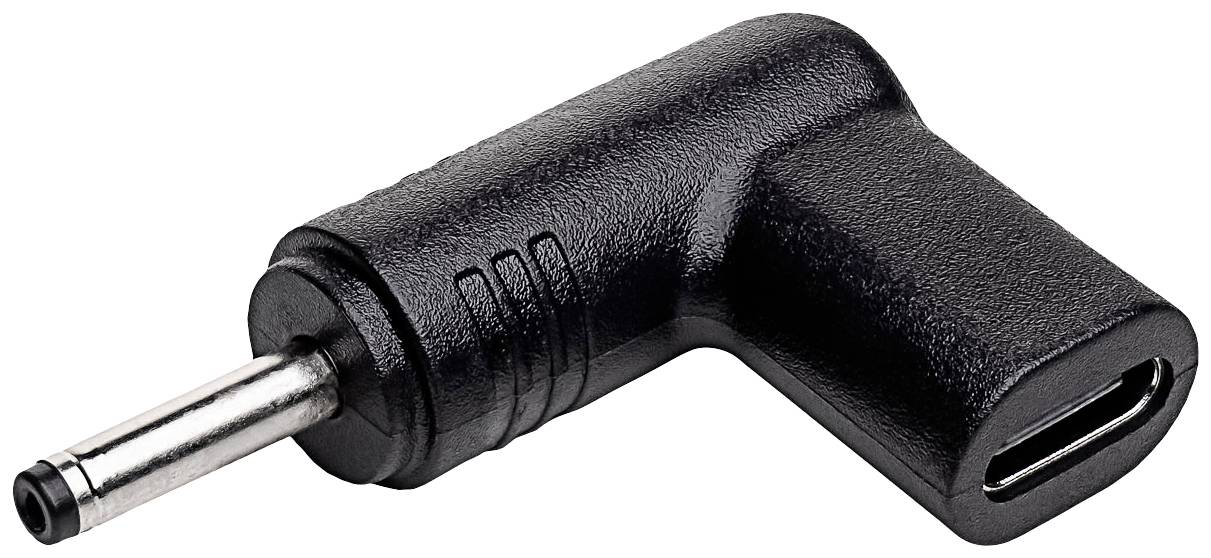

A black 90-degree adapter with a round plug on one side and a USB socket on the other, in close-up.

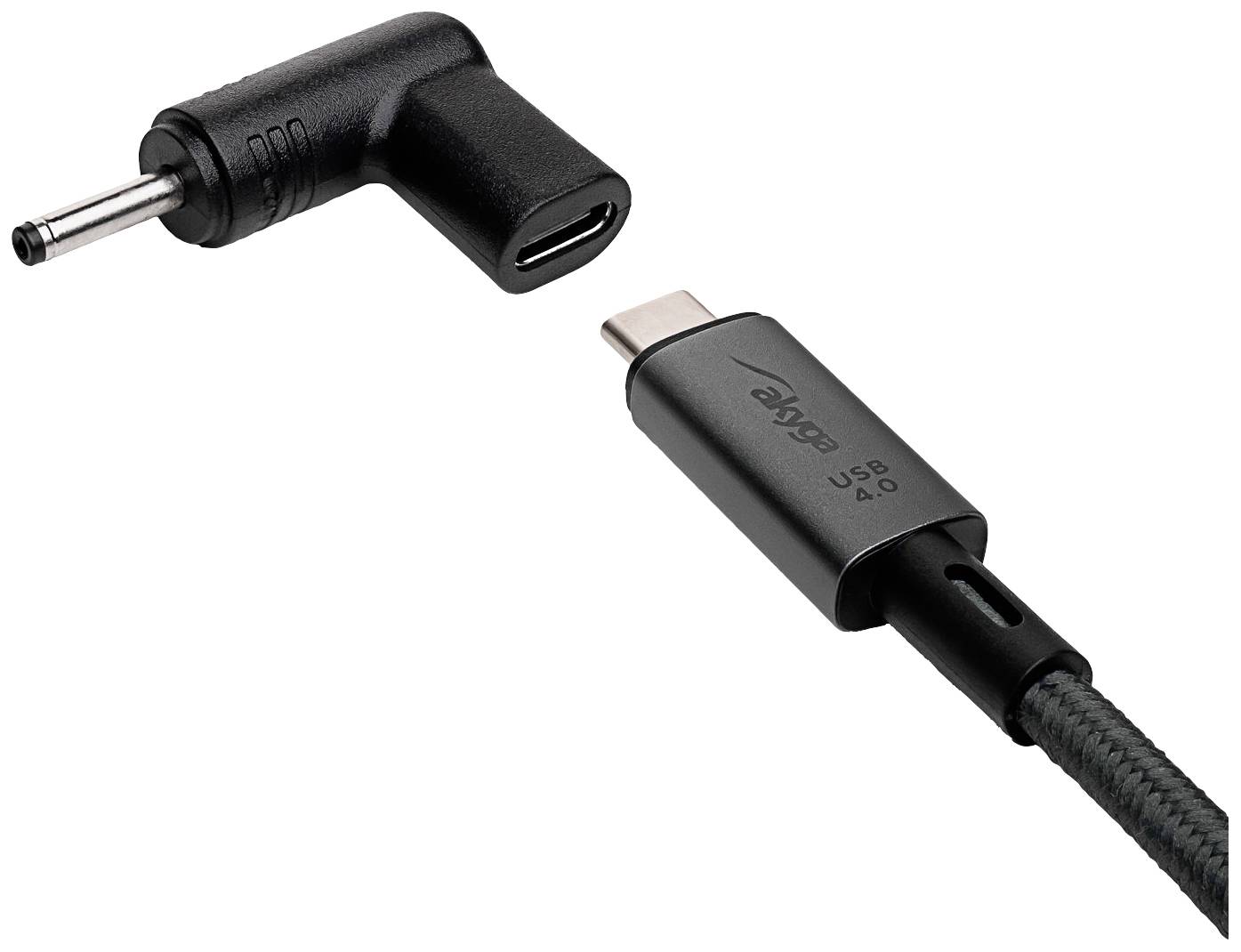

'USB 4.0 cable with plastic sheathing and L-shaped connector. Suitable for high-speed data transfer.'

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Laptop adapter AK-ND-C06 USB-C / 3.0 x 1.0 mm

18.5 - 20 V / 5 A
100 W Power
Suited for notebooks from Acer

Technical specifications

Maximum power: 100 W
Product dimensions (L x W x H) 38 x 24 x 10 mm
Connection 1: USB type C.
Connection 2 3.0 x 1.0 mm
Power output 18.5 - 20 V
Output current: Max. 5 A
Pin length 12 mm

Product type: USB-C adapter

Type: AK-ND-C06

for brands: Acer

Compatible with: älteren Acer- und Samsung-Laptops

replaces OEM PSU (laptop): Ersatz für einen beschädigten oder verlorenen Stromadapter

Output: 3.0/1.0 coaxial connector

: 100 W

Inputs: 1

No. of outputs: 1 x

Output voltage range: 18.5 - 20 V

Output current (max.) - rounded: 5 A

Max. output current: 5 A

Max. output current per channel: 5 A

Dim: (L x W x H) 38 x 24 x 10 mm

Length: 38 mm

Width: 24 mm

Height: 10 mm

PSU features: USB Power Delivery (USB-PD)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2865352 Akyga USB-C adapter 100 W 5 A USB Power Delivery (USB-PD)

User & Safety Instructions

User & Safety Instructions 2865352 Akyga USB-C adapter 100 W 5 A USB Power Delivery (USB-PD)

Description

Akyga® AK-ND-C06 is a small and very convenient USB-C adapter. It allows you to quickly and easily convert the USB type C connector to a 3.0x1.0 mm connector found frequently on older Acer and Samsung laptops. The adapter is a great option for those who need a replacement for a damaged or lost power adapter. It is easy to use and allows you to charge your device quickly and safely. It allows you to charge your laptop and other mobile devices easily with the same universal USB-C-PD charger. In addition, the adapter enables charging with a maximum power of 100 W. Therefore, it can supply power to small ultrabooks as well as laptops that are charged with higher performance without any problem.

This text is machine translated.
