Buy VOLTCRAFT NPS-90-1-N Laptop PSU 90 W 5 V DC, 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC,

Power supply by Voltcraft with model number NPS-90-1-N, black casing, adjustable switch and green operational indicator light.

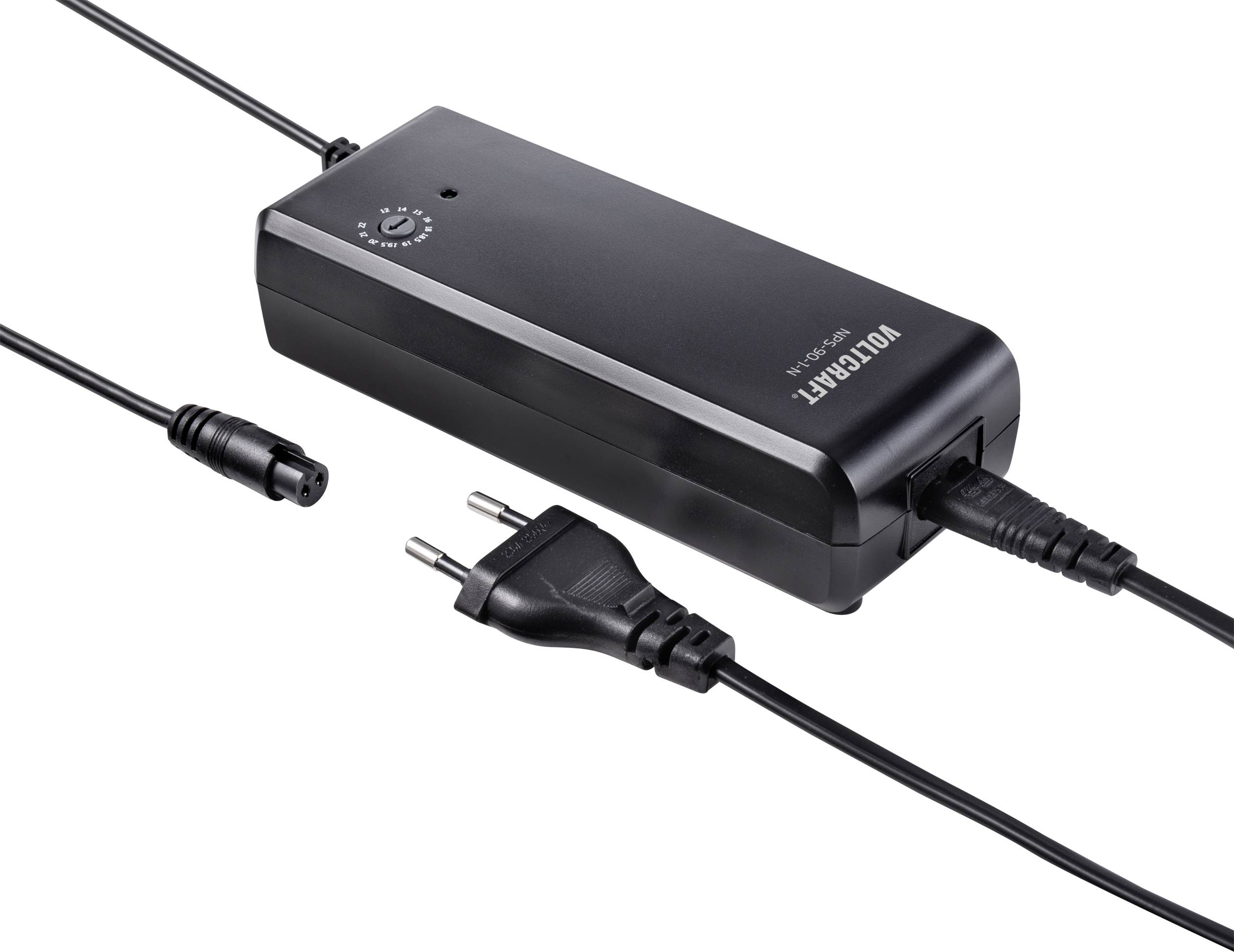

Power supply with cable, EU plug and reference scale. Used for powering electronic devices.

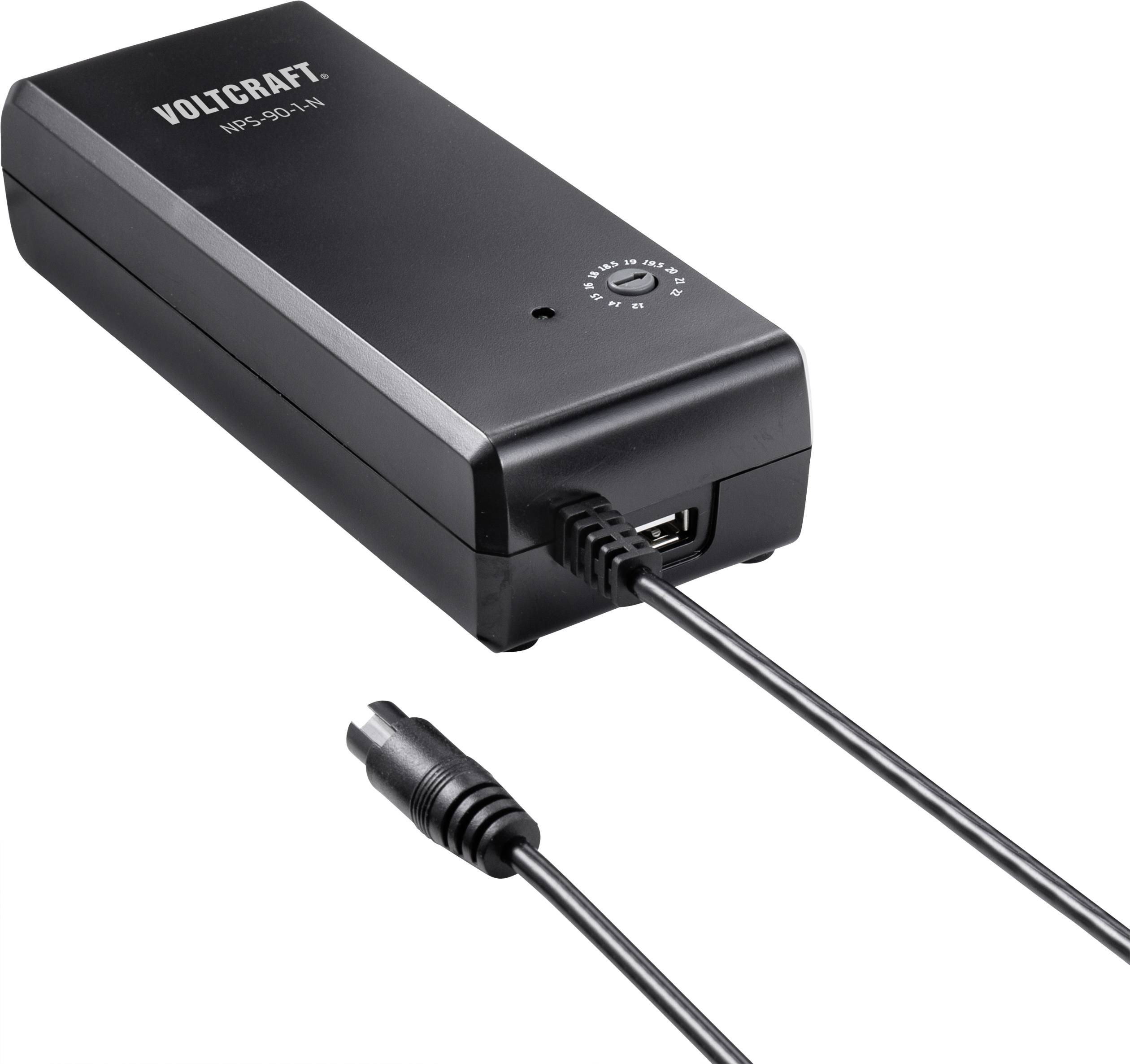

Compact black power supply unit 'Voltcraft NPS-90-3M' with connected cable and USB port, suitable for electronic devices.

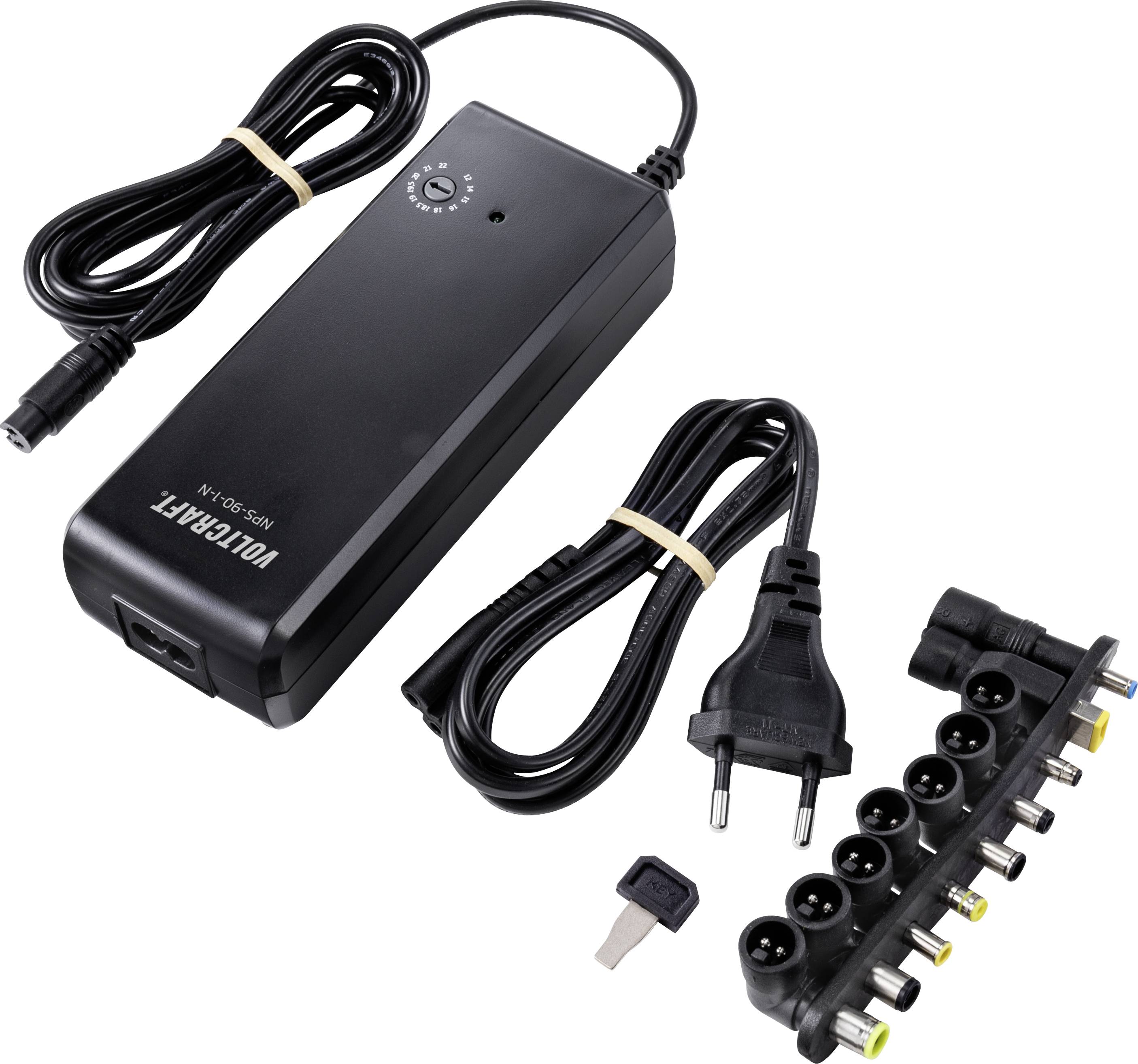

Black power adapter with multiple interchangeable plugs for voltage adjustment. Includes EU plug and adjustable voltage switch.

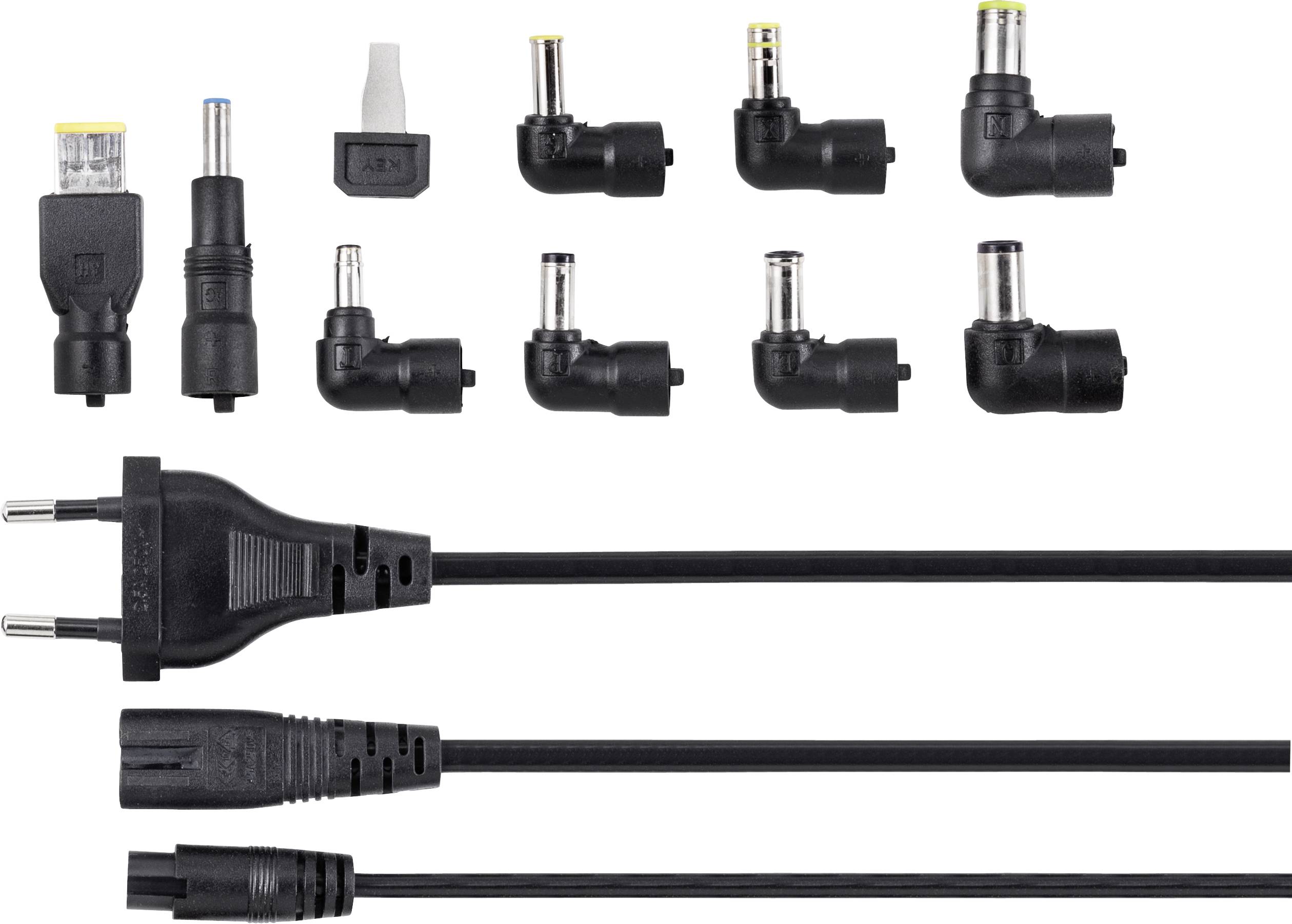

A set of various adapter plugs and power cables. At the top, several adapter tips are visible, with different cable plugs at the bottom.

1/6

Our service for you

Fast track dispatch on Wed, 23 Sep

56 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

NPS-90-1-N Notebook power supply

12 - 22 V/DC/4 A max.
Additional USB output
Suitable for Notebooks of Acer, Asus, Compaq, Dell, Fujitsu-Siemens, Gateway, HP, IBM, Lenovo, Panasonic, Sony, Toshiba, Samsung, Winbook
Location: socket

Technical specifications

Product type: Laptop PSU

Type: NPS-90-1-N

for brands: Acer
Asus
Compaq
Dell
Fujitsu-Siemens
Gateway
HP
IBM
Lenovo
Panasonic
Sony
Toshiba
Samsung
Winbook
Show more

Output: 5.5/2.5 coaxial connector
6.5/1.4 coaxial connector
5.0/1.0 coaxial connector
5.5/1.7 coaxial connector
7.9/0.9 coaxial connector
7.4/0.6 coaxial connector
4.75/1.7 coaxial connector
4.5/3.0 coaxial connector
Lenovo 11x4.6/6.6x3.3 connector

: 90 W

Input voltage: 100 - 240 V AC

No. of outputs: 2 x

Output voltage: 5 V DC
12 V DC
14 V DC
15 V DC
16 V DC
18 V DC
18.5 V DC
19 V DC
19.5 V DC
20 V DC
21 V DC
22 V DC
Show more

Output voltage range: 5 - 22 V

Output current (max.) - rounded: 4 A

Max. output current: 4 A

Output current (low): 2 A

Dim: (L x W x H) 170 x 53 x 30 mm

Length: 170 mm

Width: 53 mm

Height: 30 mm

Weight: 467.6 g

Factory colour: Black

Used at: Mains socket

PSU features: Adjustable voltage output

EuP Status: Level VI

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266530 VOLTCRAFT NPS-90-1-N Laptop PSU 90 W 5 V DC, 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC,

Warranty Terms

Warranty Terms 2266530 VOLTCRAFT NPS-90-1-N Laptop PSU 90 W 5 V DC, 12 V DC, 14 V DC, 15 V DC, 16 V DC, 18 V DC, 18.5 V DC, 19 V DC, 19.5 V DC,

Description

Compact and light power supply for notebooks.

This text is machine translated.

Features

Stabilised DC-output voltage 12/14/15/16/18/18.5/19/19.5/20 V (4 A), 21/22 V (3.5 A)
USB output 5 V/DC 2A max.
Short circuit and overload protection
Pole-reversal protected output connector.
High degree of efficiency and low current consumption
1.6 m long DC-connection cable.
