Asus PRIME Z690-P D4 Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z690
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 275.00 / piece)
€ 275.00
incl. VAT
14-day return policy included
Highlights & Details

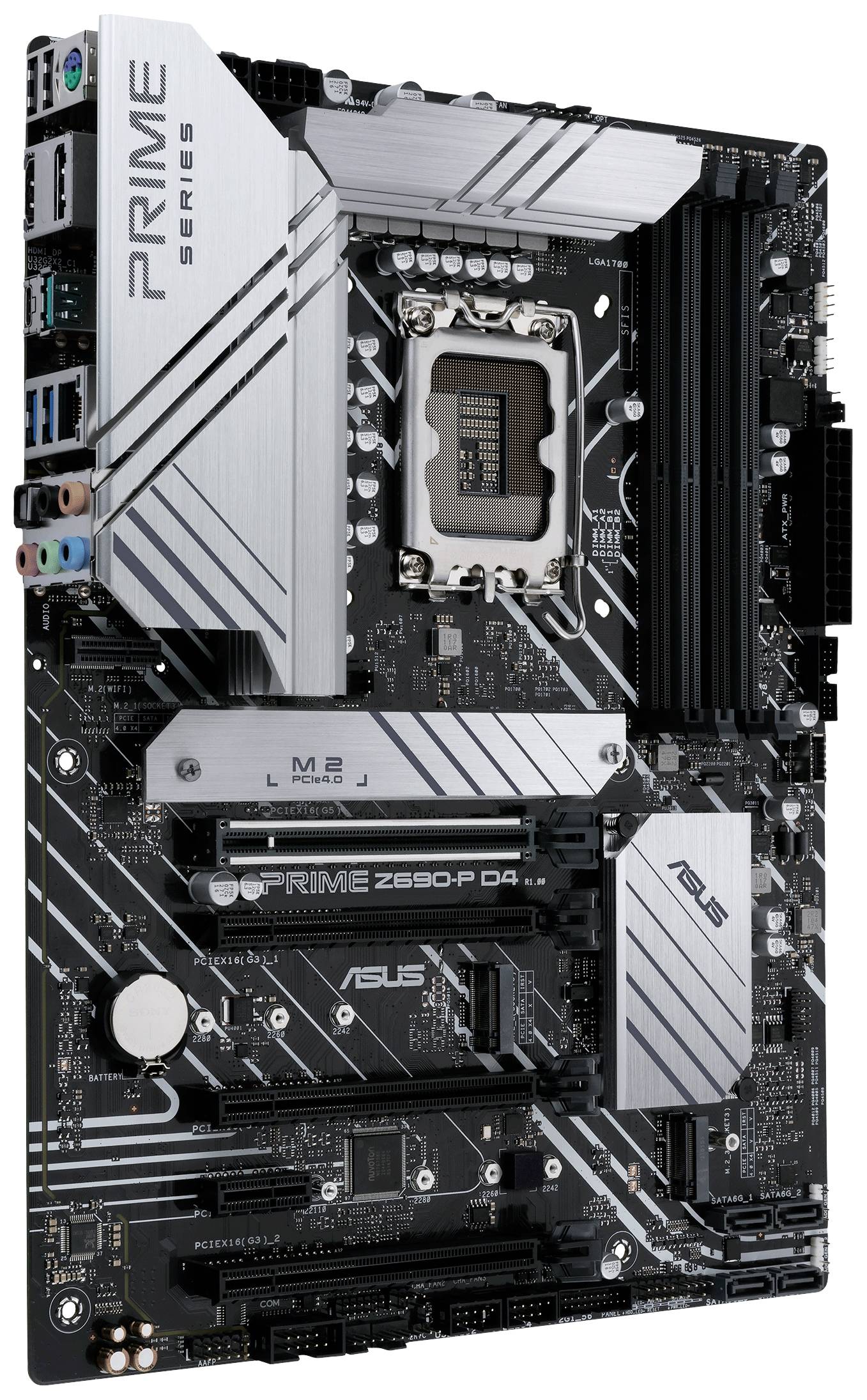

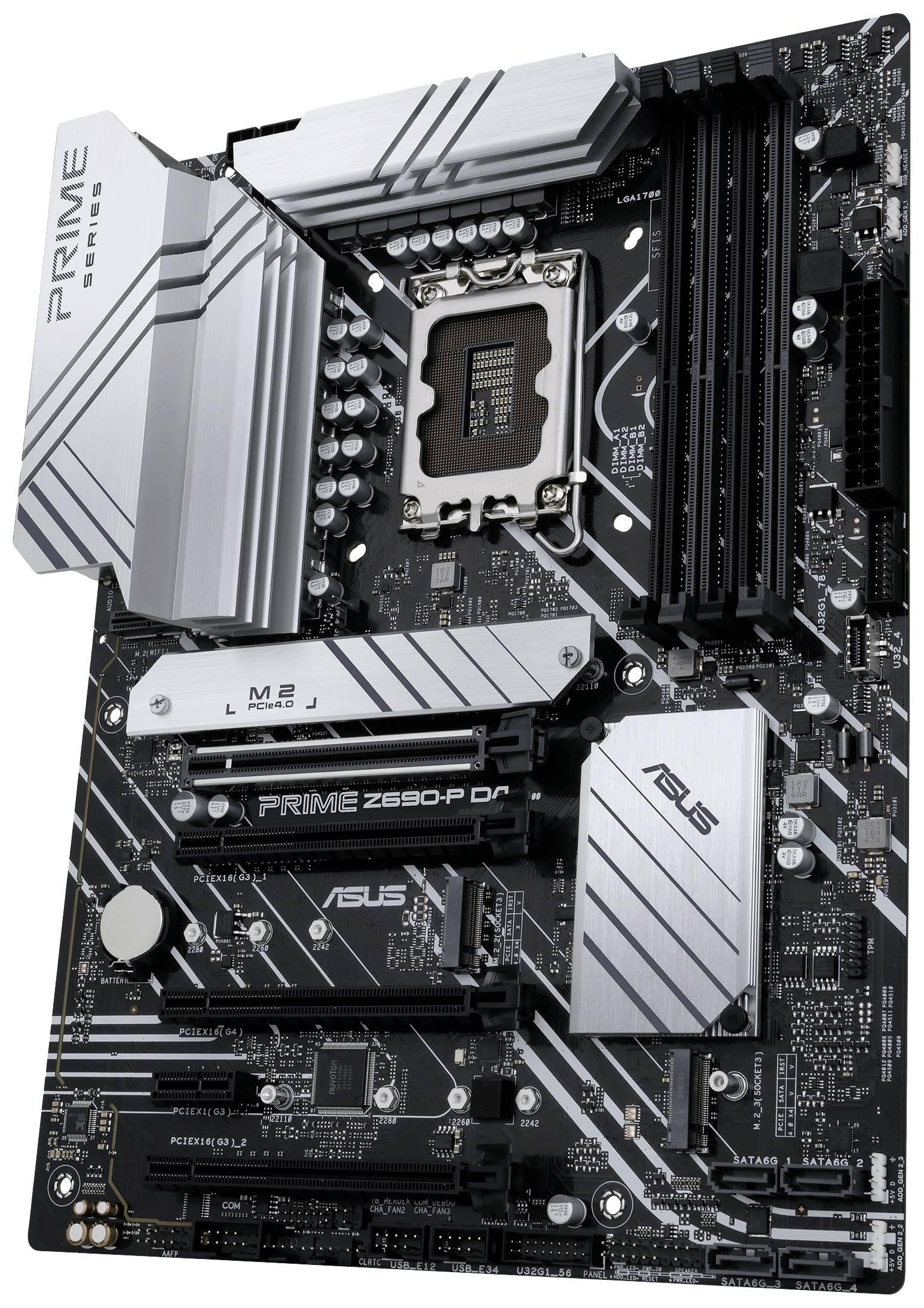

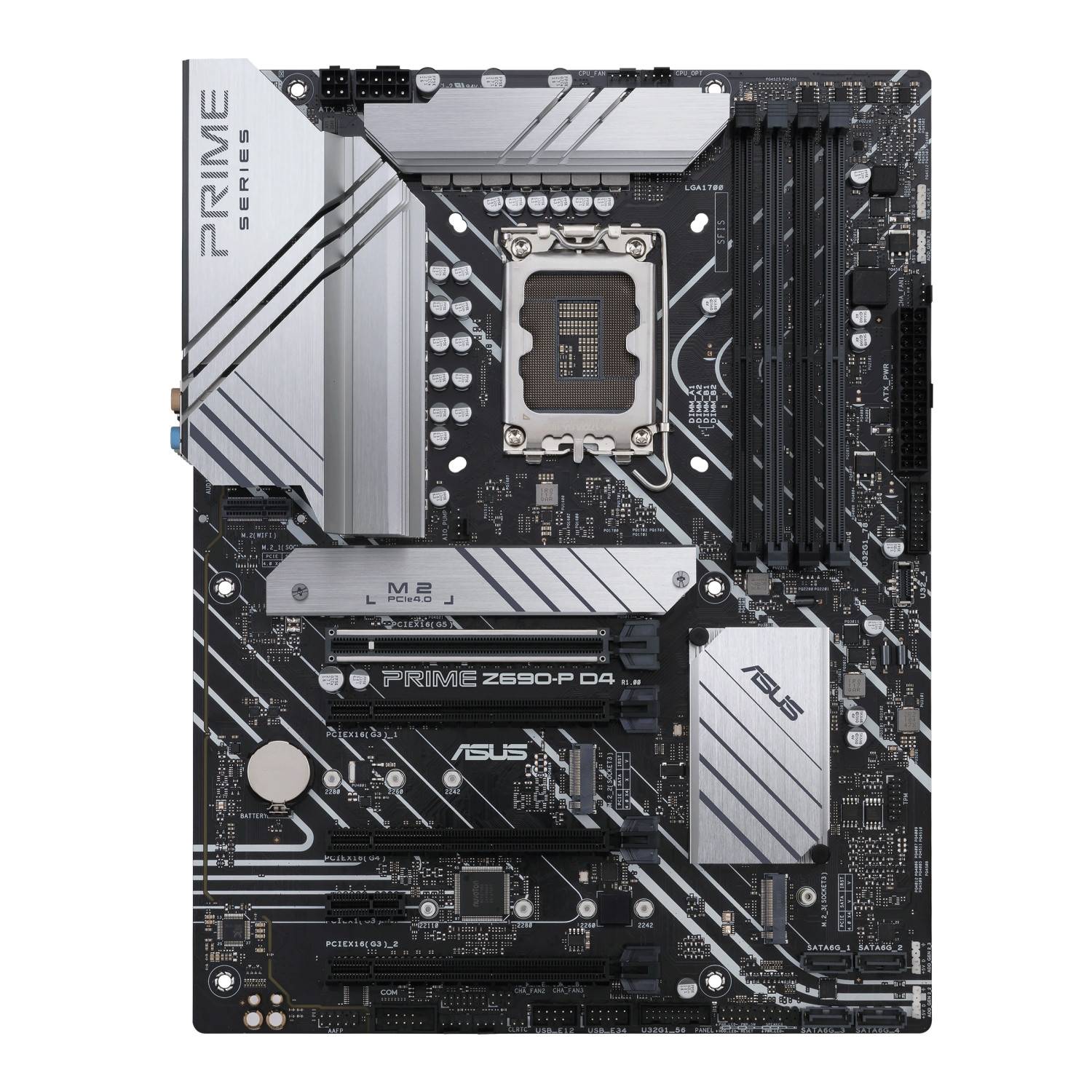

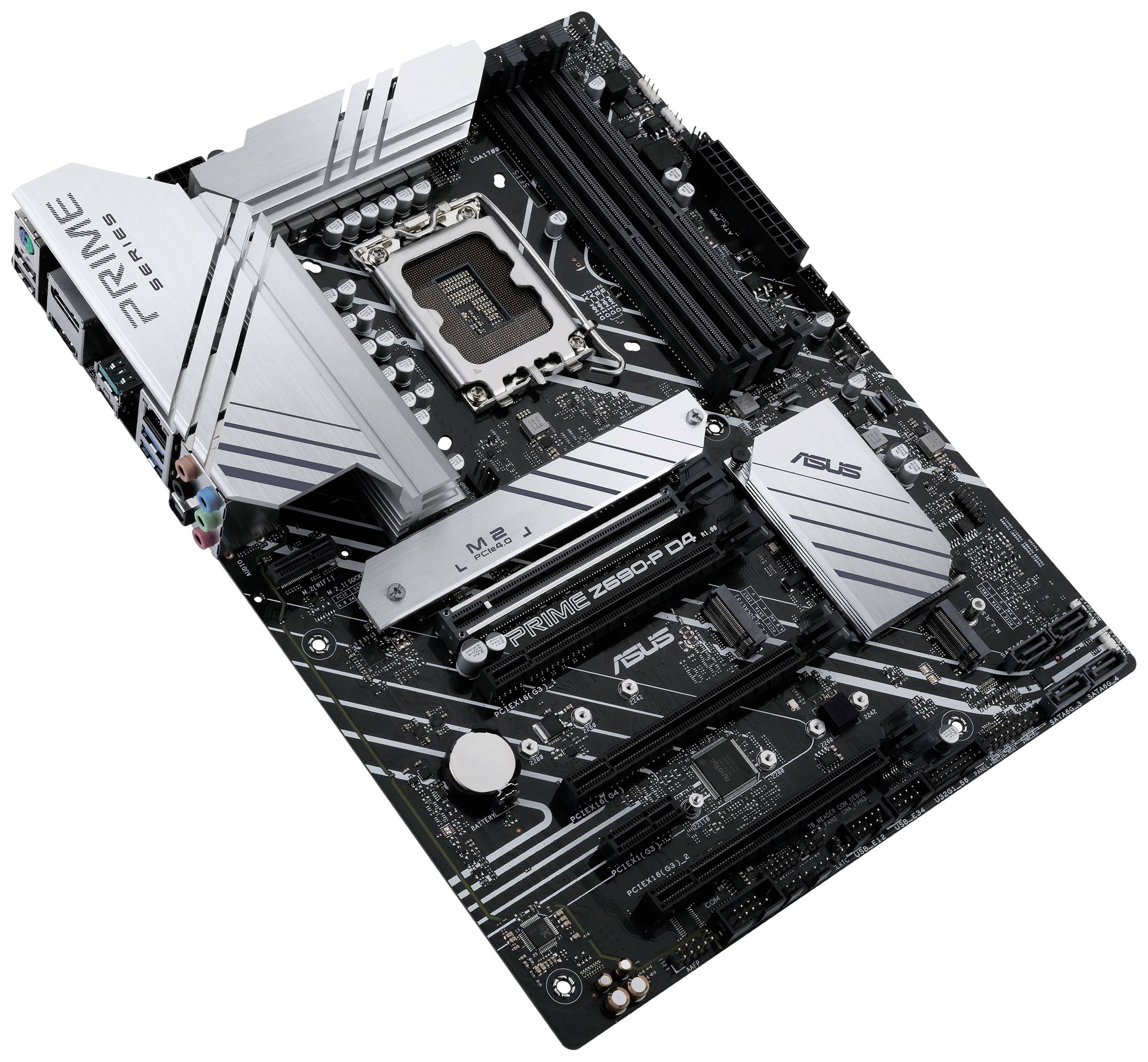

Asus PRIME Z690-P D4 Motherboard

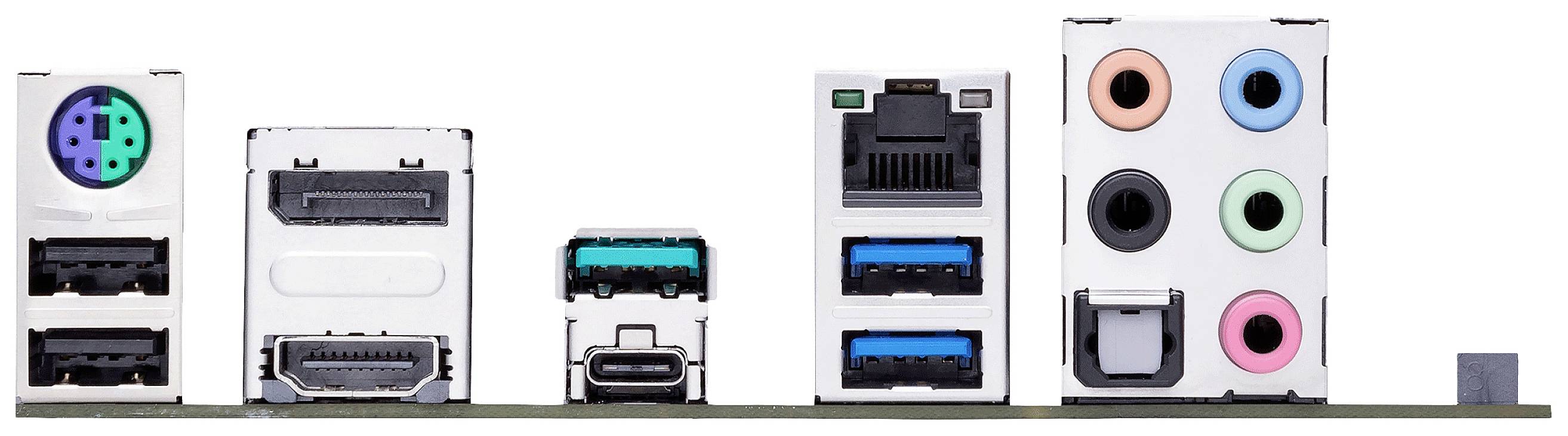

- Intel processors for socket 1700Intel® Core™ processors on the 12. Generation4x DDR4 SDRAM slots up to 5333 MHz / max. 128 GBInternal connections: 4x SATA III, 3x M.2I/O Panel: 2x USB 2.0; 2x USB 3.0; USB 3.1; HDMI™; USB C™; PS/2; DisplayPort
Technical specifications
- Product type
Motherboard
- Chipset
Intel® Z690
Intel® 1700
- Form factor
ATX
- Processor/type
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®G
- RAM type
DDR4 RAM
- Clock speed
2133 MHz
2400 MHz
2666 MHz
2800 MHz
2933 MHz
3000 MHz
3200 MHz
3333 MHz
3400 MHz
3466 MHz
Show more
- RAM / Max. upgrade
128 GB
- Interfaces
USB A (USB 2.0)
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1 Gbps)
HDMI™
USB C®
PS/2
DisplayPort
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
Show more
- No. of DDR4 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
2 x
- No. of USB type A 3.0 ports
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- No. of PS/2 ports
1 x
- Connectors
HDMI, Displayport
- CPU
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® G
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2562250 Asus PRIME Z690-P D4 Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z690
User & Safety Instructions
User & Safety Instructions 2562250 Asus PRIME Z690-P D4 Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z690
Description
ASUS Prime Z690-P D4 motherboard socket Intel LGA 1700 (Intel Z690, ATX, PCIe 5.0, 3x M.2, DDR4, Thunderbolt 4, Aura Sync, 2.5Gb Ethernet)
This text is machine translated.
This text is machine translated.
Features
- Intel® LGA 1700 socket: Ready for Intel® processors of the 12. GenerationImproved power supply: 14+1 DrMOS power levels, 8+4-pin ProCool connection, aluminum coils and durable capacitors for a stable power supplyComprehensive cooling: Large VRM heat sinks, M.2 heat sinks, PCH heat sinks, hybrid fan connectors and Fan Xpert 4ASUS OptiMem II: Precise conductor path guidance and through-contacting as well as optimization of the mass layers for maintaining the signal integrity for improved overclocking of the memoryNext-generation connectivity: DDR4, PCIe® 5.0, 2.5 GB Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
