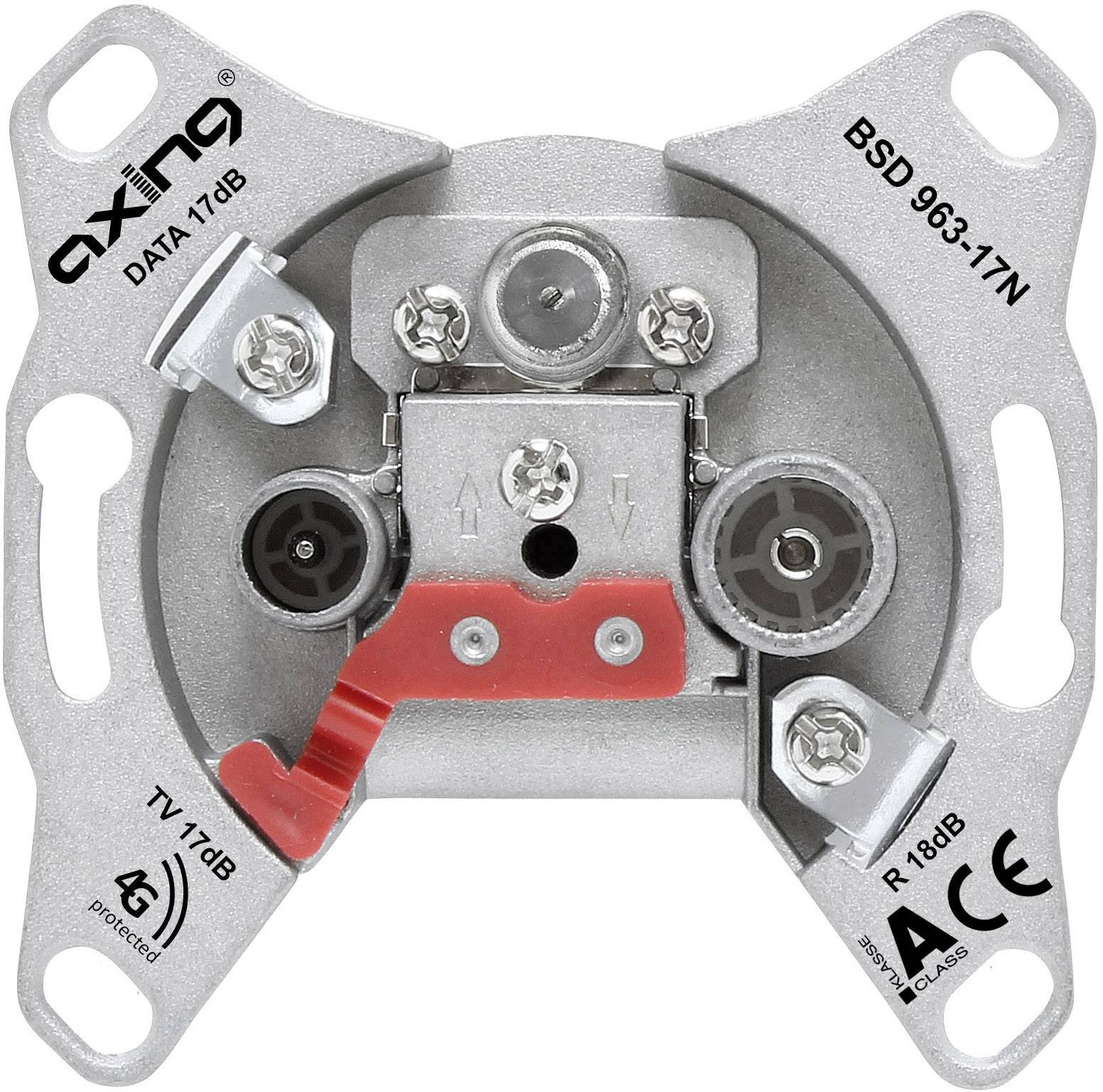

Axing BSD 963-17N Antenna socket TV, FM, Data Flush mount Non-terminated
EAN:
Part number:
Item no:
Number
Total (€ 9.99 / piece)
€ 15.99
-38 %
€ 9.99
incl. VAT
14-day return policy included
Highlights & Details
Axing BSD 963-17 multimedia antenna socket N
- Reverse channel-compatible 5 - 65 MHz.
- Foldable connection cover
- Connection damping 17 dB
- Frequency range 5 - 1006 MHz
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
TV
FM
Data
- Mounting type
Flush mount
- Factory colour
Multicolour
- Frequency range
5 - 1006 MHz
- Dim
(W x H) 68 mm x 68 mm
- Suitable for class A
Yes
- Reverse channel
5 - 65 MHz
- DC outlet
No
- Width
68 mm
- Height
68 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 942774 Axing BSD 963-17N Antenna socket TV, FM, Data Flush mount Non-terminated
Description
Pass-through socket
This text is machine translated.
This text is machine translated.
Features
- Extended F socket (easy to install)
- New improved cable holder
- For all standard switching programs (German standard)
- Refined surface
- Shielding EN 50083 - 2/A1, class A
- Frequency range 5–1000 MHz
- TV-connection (109 to 1000 MHz)
- Radio-connection (87.5 to 108 MHz)
- Data-connection (5 to 1000 MHz)
- Connection damping 17 dB ±1 dB
- 2.8 dB terrestrial transmission loss
- Usable cable 0.63–1.13 mm inner conductor/4.70–7.35 mm outer diameter.
Scope of delivery
- Multimedia socket
