Axing SSD 6-07 Antenna socket Flush mount Terminated
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Axing SSD 6-07 end socket
- Specially developed for single-cable systems
- UB forward can be programd
- SSD6-xx makes digital single-cable systems in accordance with EN 50494/JESS absolutely noise-free and tamper
- Secure and conflict-free installation in residential and floors cross-trunk line
Technical specifications
- Type
Terminated
- Product type
Antenna socket
- Mounting type
Flush mount
- Dim
(W x H) 68 mm x 68 mm
- Width
68 mm
- Height
68 mm
- Weight
1.08
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 943804 Axing SSD 6-07 Antenna socket Flush mount Terminated
User & Safety Instructions
User & Safety Instructions 943804 Axing SSD 6-07 Antenna socket Flush mount Terminated
Description
Our intelligent and SSD 6-07/10/14/18 dB addressable antenna sockets for digital single-cable systems in accordance with EN 50494/JESS standard are factory are 18 V DC and 22 kHz tone is blocked.
User band UB 1-16 are factory unlocked and ready for use immediately.

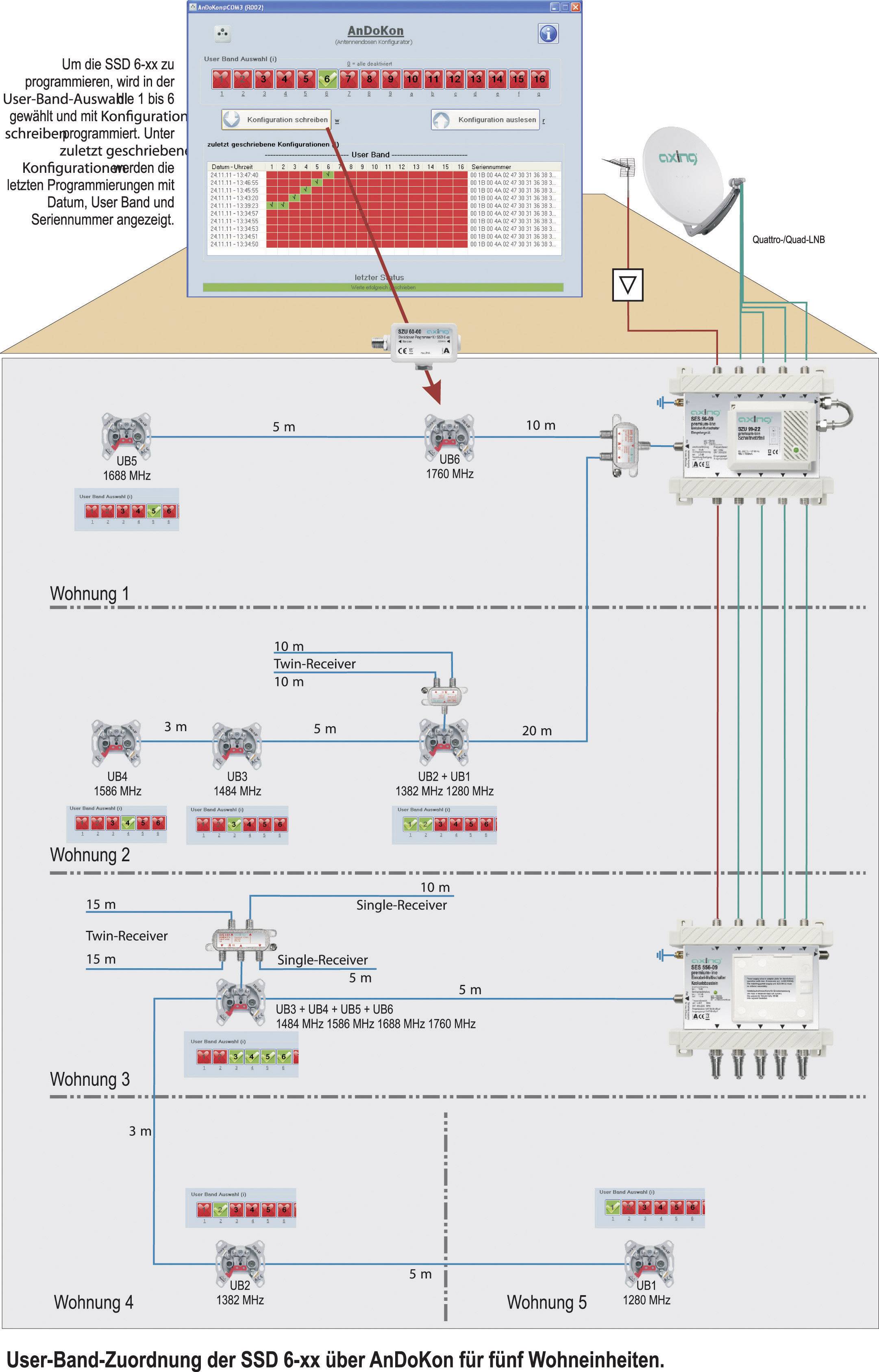

Any socket can be assigned to one or more user bands (UB) only receiver on the user bands of the socket are set, have access to the programs. Receiver with other user band settings or not Unicable-compatible receivers are not receiving programs and the system do not disturb.
SSD6-xx makes digital single-cable systems in accordance with EN 50494/JESS absolutely noise-free and tamper
Secure and conflict-free installation in residential and floors cross-trunk line
This text is machine translated.
User band UB 1-16 are factory unlocked and ready for use immediately.
Any socket can be assigned to one or more user bands (UB) only receiver on the user bands of the socket are set, have access to the programs. Receiver with other user band settings or not Unicable-compatible receivers are not receiving programs and the system do not disturb.
SSD6-xx makes digital single-cable systems in accordance with EN 50494/JESS absolutely noise-free and tamper
Secure and conflict-free installation in residential and floors cross-trunk line
This text is machine translated.
Scope of delivery
- SSD 6-07 antenna socket.
- User manual.
