Name: b-Lite BR563131 Escape route lighting
Brand: b-Lite
SKU: 3728370
Availability: InStock

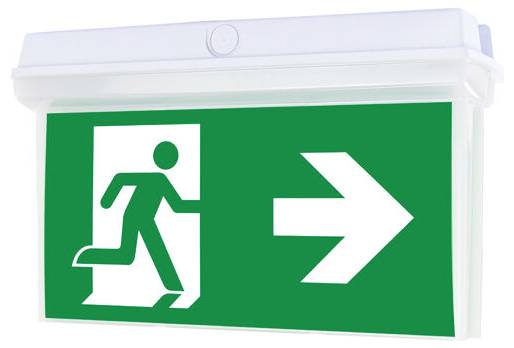

Emergency exit sign with a green background, showing a person running through a door and a right-pointing arrow indicating direction.

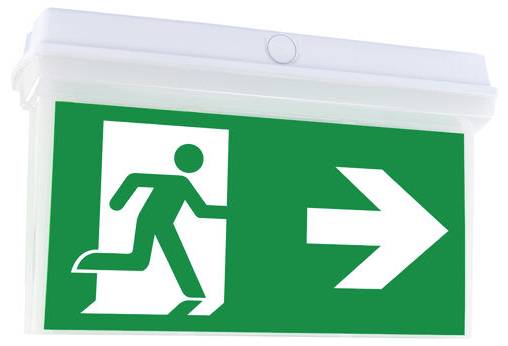

Emergency exit sign with a running figure and right arrow, indicating the direction to an exit.

Emergency exit sign with arrow pointing downwards. Dimensions: width 336 mm, height 212.5 mm, depth 110 mm.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Escape route lighting b-Lite V-LUX TOP BR563131 ()

Continuous and standby circuit
Mounting type ceiling/ceiling structure
Polycarbonate housing, impact-resistant, break-proof, RAL 9003 (white)
Cover made of polycarbonate, opal, impact-resistant, break-proof
Pictogram films from PVC, self-adhesive

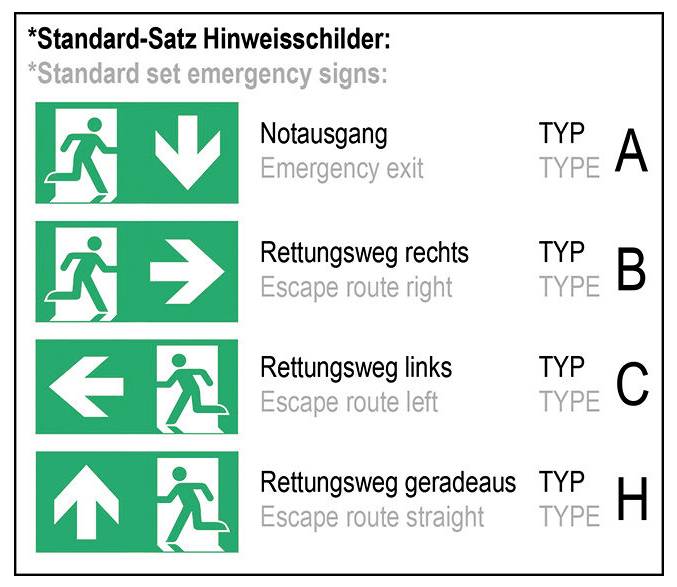

Including 1x standard set of information signs (emergency exit, left escape route, right emergency exit, straight ahead)
ACCORDING TO DIN EN ISO 7010
30 Meter detection range
Manual test function, signaling via 1x multi-colored LED, including test button
Test results with interference analysis (illuminant, charging and battery circuit) and status indication (operation) via a multi-colored LED
Permissible ambient temperature 0°C to 40°C.
Mains voltage 230 V AC
3 W power consumption
Light source including 8x SMD-LED
Luminous flux: 160 Lumen in network operation, 140 lumen in emergency operation
LiFePO4 battery 3.2V / 1.8 Ah
3 hours battery life

Technical specifications

Dim: (W x H x D) 336 x 212.5 x 110 mm

Product type: Escape route lighting

Main battery supply: No

Motif: Exit (right)

Max. battery life: 3

Backlit: Yes

Operating voltage: 230 V

EN standard: EN 60598-2-22
EN 1838

: 3 W

Bulb type: SMD LED

Material: Polycarbonate (PC)

Standards: ISO 7010

Width: 336 mm

Height: 212.5 mm

Depth: 110 mm

: IP65

Protection class: II

Documents & Downloads

Datasheet

Datasheet 3728370 b-Lite BR563131 Escape route lighting

User & Safety Instructions

User & Safety Instructions 3728370 b-Lite BR563131 Escape route lighting

Description

Safety and rescue signs lights in IP 65 standard design, as single battery emergency light with manual test function, signaling via 1x multi-colored LED, including test button. According to DIN EN 60598-1, DIN EN 60598-2-22, DIN EN 62034 and DIN EN 1838 for systems according to DIN VDE 0108 for separate operation.
