Name: b-Lite BR564231 LED escape route lighting
Brand: b-Lite
SKU: 3728371
Availability: BackOrder

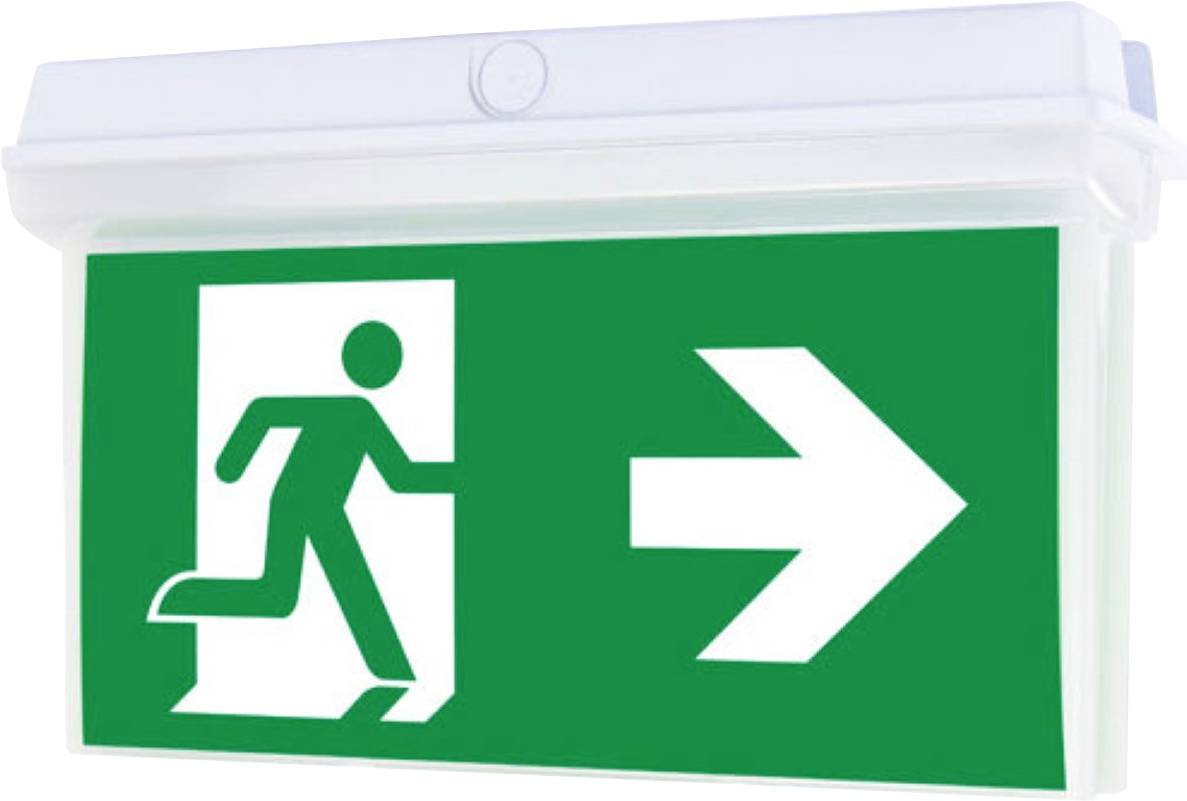

'Emergency exit sign with a person running towards a door and a right-pointing arrow, indicating the direction to the exit.'

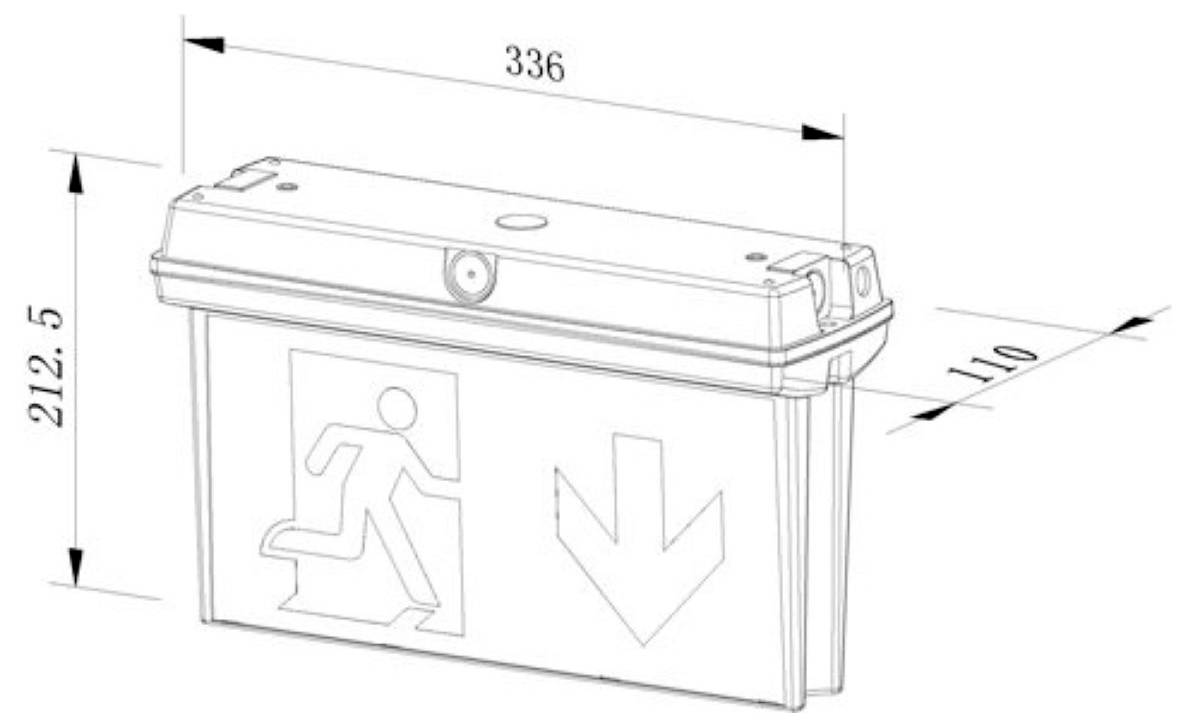

Exit sign with battery enclosure dimensions: width 336 mm, height 212.5 mm, depth 110 mm, featuring running man and arrow symbols.

b-Lite BR564231 LED escape route lighting-2

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED escape route lighting b-Lite V-LUX TOP BR564231 ()

Continuous and standby circuit
Mounting type ceiling/ceiling structure
Polycarbonate housing, impact-resistant, break-proof, RAL 9003 (white)
Cover made of polycarbonate, opal, impact-resistant, break-proof
Pictogram films from PVC, self-adhesive
30 Meter detection range

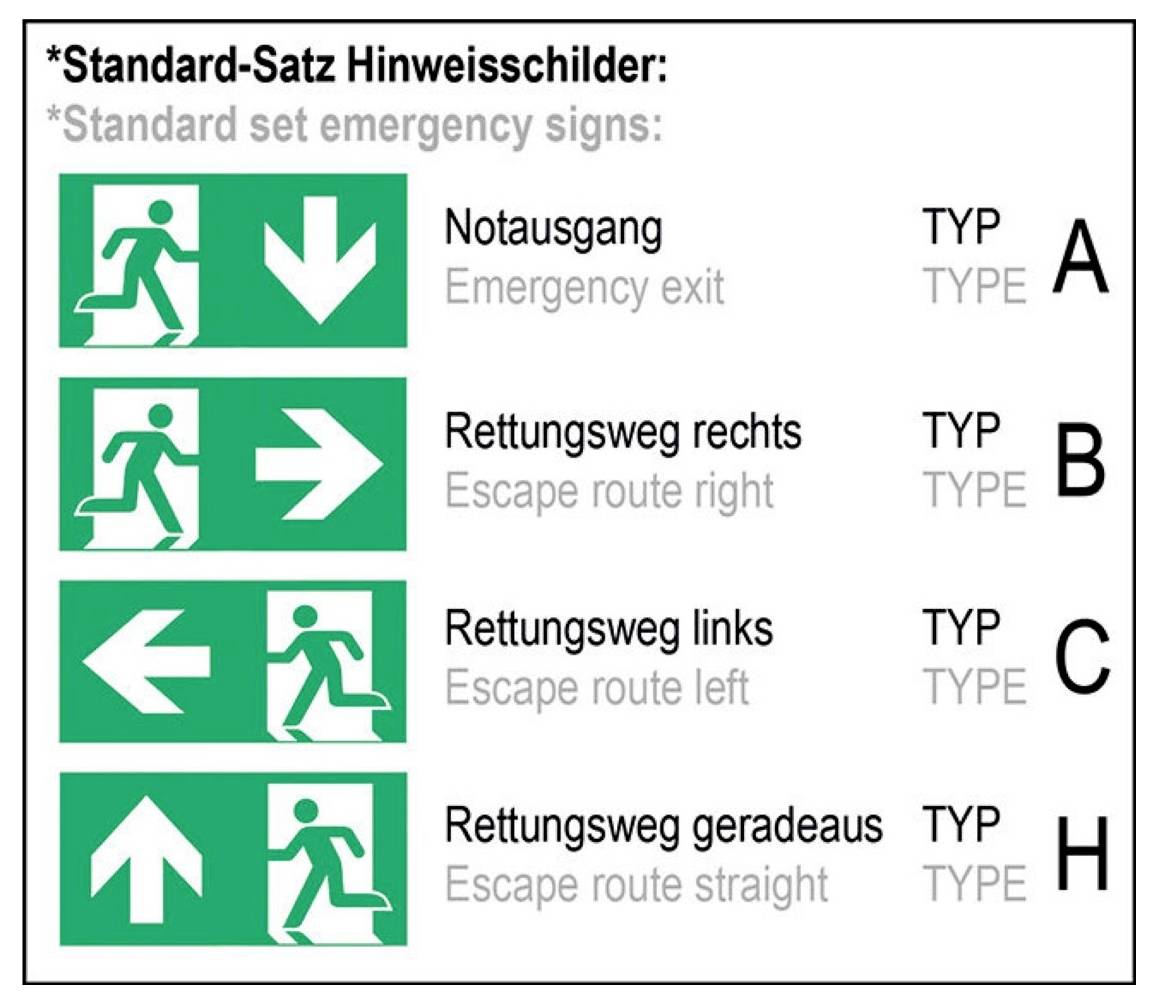

Including 1x standard set of information signs (emergency exit, left escape route, right emergency exit, straight ahead)
ACCORDING TO DIN EN ISO 7010
AUTOTEST-function, signaling via status LED, including test button
Provides test results with interference analysis (light bulb, charging and battery circuit) and status indicators (operation, AUTOTEST)
LED status indicator
Automatic function TEST (AUTOTEST Type A) weekly
Automatic operating time TEST (AUTOTEST type B) every 6 months
Permissible ambient temperature +0°C to 40°C.
Mains voltage 230 V AC
Power consumption 5.5 W
Lamp including 41x SMD-LED
Luminous flux: 230 Lumen in network operation, 150 lumen in emergency operation
Protection class IP 65
Protection class: I
LiFePO4 battery 3.2V / 1.5 Ah
3 hours battery life

Technical specifications

Dim: (W x H x D) 336 x 212.5 x 110 mm

Product type: LED escape route lighting

Main battery supply: No

Motif: Exit (right)

Max. battery life: 3

Backlit: Yes

Operating voltage: 230 V

EN standard: EN 60598-1
EN 60598-2-22

: 5.5 W

Bulb type: SMD LED

Material: Polycarbonate (PC)

Width: 336 mm

Height: 212.5 mm

Depth: 110 mm

: IP65

Protection class: I

Documents & Downloads

Datasheet

Datasheet 3728371 b-Lite BR564231 LED escape route lighting

User & Safety Instructions

User & Safety Instructions 3728371 b-Lite BR564231 LED escape route lighting

Description

LED safety and rescue light in IP 65 standard design, as single battery emergency light with AUTO TEST function, signaling via 1x multi-colored status LED, including test button. According to DIN EN 60598-1, DIN EN 60598-2-22, DIN EN 62034 and DIN EN 1838 for systems according to DIN VDE 0108 for separate operation.
