BACO LBX130113 Kill button + enclosure 240 V AC 2.5 A 3 breakers IP66 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 51.99 / piece)
€ 51.99
incl. VAT
14-day return policy included
Highlights & Details

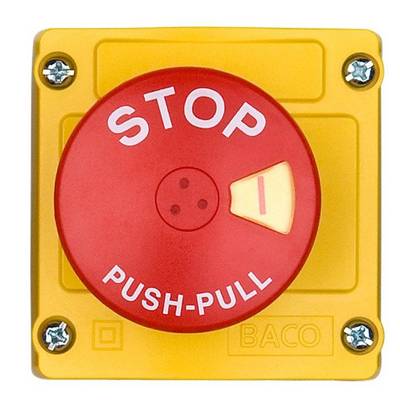

Mushroom switch in housing
- 10-year guarantee.
Technical specifications
- Approvals: EN-IEC 60947-1, EN-IEC60947-5-1, UL508
- Product type
Kill button
- Switch/button features
+ enclosure
- Unlocking mechanism
Pull
- Print motif
STOP - PUSH-PULL - 0/I
- Lighting type
None
- Contact type
3 breakers
- Factory colour
Red
- Connection
Screws
- Functions
latch
- Button Ø
54 mm
- Length
74 mm
- Width
74 mm
- Height
47.9 mm
- Switching voltage
240 V AC
- Switching current (max.)
2.5 A
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP66
- Type
LBX130113
- Content
1 pc(s)
- Dim
(L x W x H) 74 x 74 x 47.9 mm
- Connection
Screw connector
Documents & Downloads
Datasheet
Datasheet 409538 BACO LBX130113 Kill button + enclosure 240 V AC 2.5 A 3 breakers IP66 1 pc(s)
Conformity certificate
Conformity certificate 409538 BACO LBX130113 Kill button + enclosure 240 V AC 2.5 A 3 breakers IP66 1 pc(s)
Description
Emerg.off button with housing and contact eleemnt(open).
Scope of delivery
- Front element, housing, Adapter, contact element.
Hints
LBX 130113 consists of:
1 x LBX housing 0100 J (Order No.: 707695)
1x mushroom latching L 22 YOU01B
3 x contact elements 33 S01 (order no.: 707049)
