Active ComponentsOptoelectronicsHigh Power LEDsHigh Power LED Power Supply

Barthelme 66000333 LED converter 700 mA Max. operating voltage: 30 V DC, 12 V AC

A rectangular electrical component with 'SELV' labelling, rounded corners, two USB ports and LED lights.

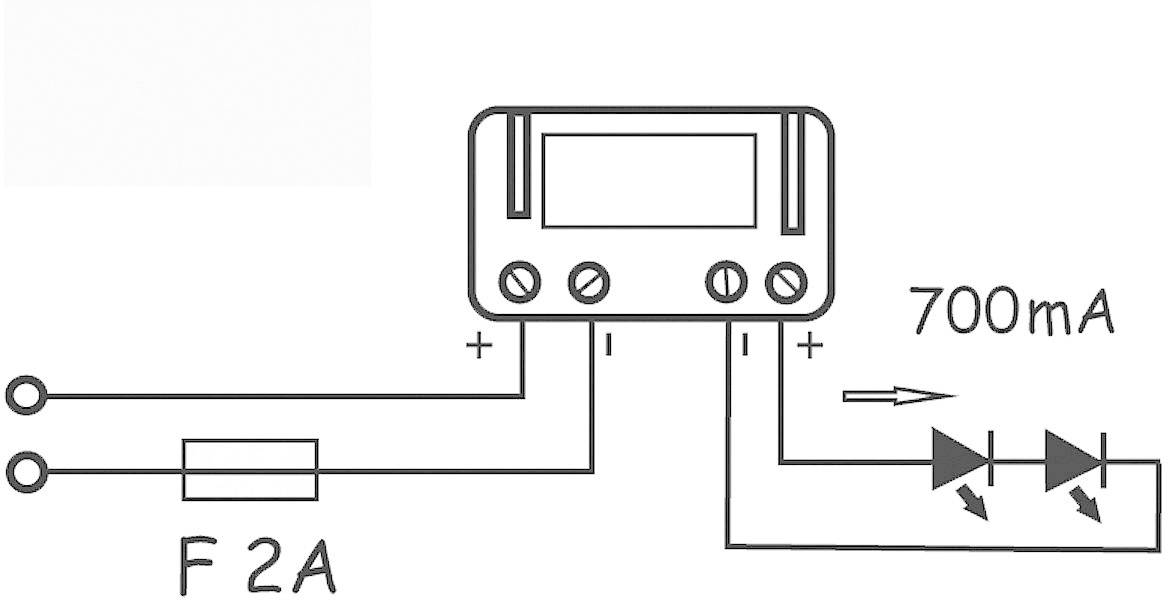

Wiring Diagram: Current flows through 2A fuse to regulator, then to LED with 700mA. Arrow indicates current direction.
1/2
Image similar
Product type
LED converter
Connection
Screws
Output current (max.) - rounded
700 mA
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
12 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
11 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 27.99 / piece)
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Compact high-power LED converter for DC and AC voltage 10 - 30 Volt

Our service for you

Technical specifications

Product type

LED converter

Operating voltage

30 V DC

Operating voltage

10 - 30, 12 V DC, V AC

For LEDs

2.5/3 W LEDs

No. of LEDs (max.)

6

Connection

Screws

IP20

Dim

(W x H x D) 51 x 32 x 18 mm

Max. output current

700 mA

Output current (max.) - rounded

700 mA

Height

32 mm

Width

51 mm

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

12 V AC

RoHS-compliant

Yes

Depth

18 mm

Output current (details)

700 mA

Operating voltage

10 - 30 V/DC V AC

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 175987 Barthelme 66000333 LED converter 700 mA Max. operating voltage: 30 V DC, 12 V AC

User & Safety Instructions

User & Safety Instructions 175987 Barthelme 66000333 LED converter 700 mA Max. operating voltage: 30 V DC, 12 V AC

Description

Compact installation Converter, also ideal for mobile applications with high-power LEDs in connected in series.. Equipment with automatic reset and extremely efficient. Practical DC wide range input so also suitable for the car or boat. With UB 11 - 15 V max. 3 LEDs or with 22 - 30 V max. 6 LEDs to operate the output.

Features

  • Insulation category III
  • Protection against overheating, short circuit or open power circuit on the secondary side.

Hints

Does not comply with German vehicle licensing regulations.
