Recom Lighting RACD03-350 Constant current LED driver 3 W 350 mA 12 V DC Max. operating voltage: 264 V AC

Compact LED driver by Recom, model RACD03. Output power: 350mA, 1-3 LEDs. Input: 220-240V AC, 60Hz.

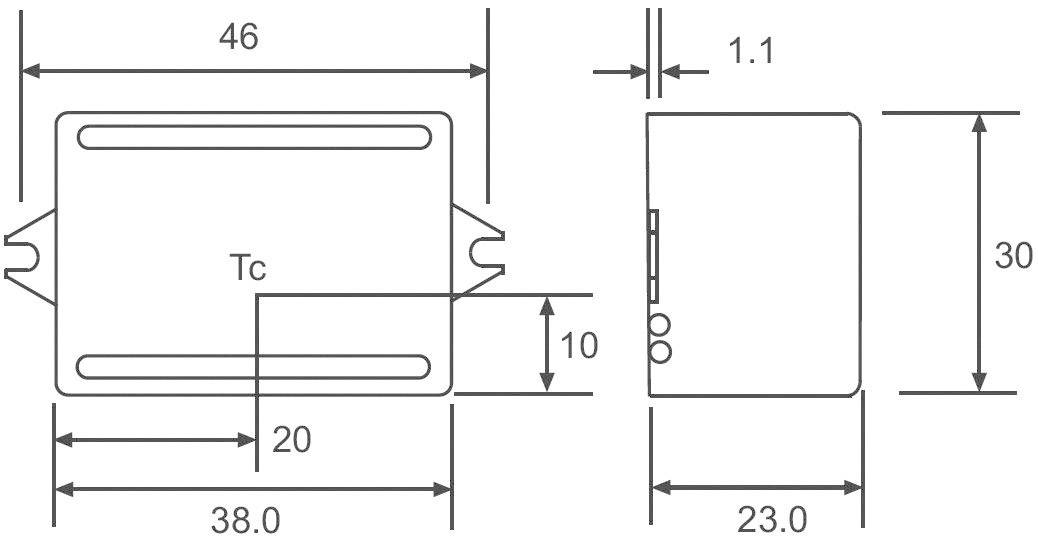

Technical drawing of a rectangular component with dimensions: 46x30mm, depth 23mm. Additional markings for mounting points and spacings.
1/2
Product type
Constant current LED driver
Power
3 W
Connection
Open end cable
Output current (max.) - rounded
350 mA
Output voltage (max.)
12 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
68 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Constant current LED driver

Type

RACD 03-350

Operating voltage

90 - 264 V AC

3 W

For LEDs

3 x high power LEDs 1 W

No. of LEDs (max.)

3

Connection

Open end cable

Lead length

11.8 cm

IP66

Dim

(L x W x H) 38 x 30 x 23 mm

Max. output current

350 mA

Output current (max.) - rounded

350 mA

Height

23 mm

Length

38 mm

Width

30 mm

Output voltage (max.)

12 V DC

Output voltage (min.)

3 V DC

Min. operating voltage

90 V AC

Max. operating voltage

264 V AC

3 W

Output voltage

3 - 12 V DC

Output current (details)

350 mA
