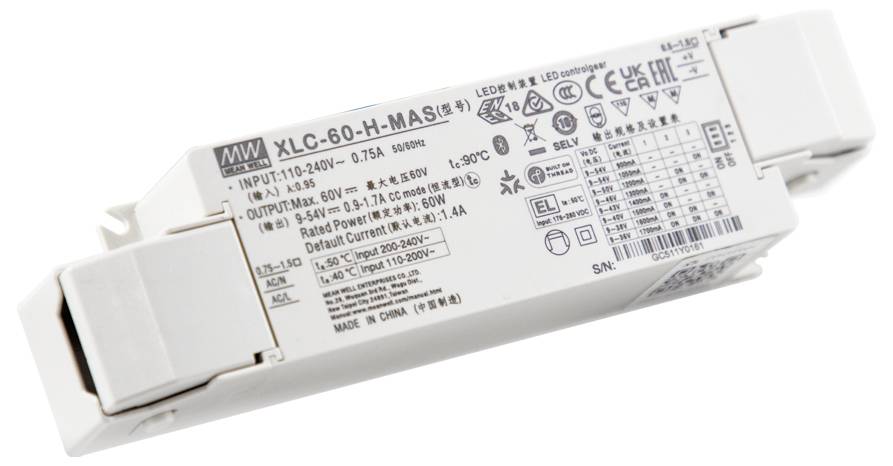

Name: MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V
Brand: MEAN WELL
SKU: 3431236
Availability: InStock

MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V-0

Product type

LED converter

Power

60 W

Connection

Spring-loaded terminal

Output current (max.) - rounded

1.7 A

Output voltage (max.)

24 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 47.99 / piece)

€ 47.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Meets the requirements of emergency lighting (EL)
Minimum dimming value 0.5% mat over thread network , Matt 1.3 specification
Output current can be set via DIP switch
DC compatible
Flicker-free
Emergency light operation device

Technical specifications

Interfaces: Mat, push-DIMM
Operation maintenance 50,000 h
Min. Input voltage AC 100
Max. Input voltage AC 305

Product type: LED converter

Operating voltage: 230 V

Operating voltage: 100 - 300 V

: 60 W

LED features: dimmable
adjustable

Connection: Spring-loaded terminal

: Protection class II

Min. temperature: +85 °C

Max. temperature: -25 °C

Dim: (L x W x H) 176 x 45 x 32 mm

Max. output current: 1700 mA

Output current (max.) - rounded: 1.7 A

Height: 32 mm

Length: 176 mm

Width: 45 mm

Output current (min.): 900 mA

Output voltage (max.): 24 V

Output voltage (min.): 24 V

Min. operating voltage: 100 V

Max. operating voltage: 300 V

Variants(All information include VAT, plus shipping costs)

Output current (max.) - rounded

Output voltage (max.)

Power

Max. operating voltage

Min. operating voltage

MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V

Item no:3431236

Fast track dispatch on Wed 4 Nov

7 Piece(s)Conrad Electronic

This article

1.7 A

24 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

MEAN WELL LED converter 60 W 1700 mA 12 V dimmable Max. operating voltage: 300 V

Item no:3431233

Fast track dispatch on Wed 4 Nov

6 Piece(s)Conrad Electronic

1.7 A

12 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V

Item no:3431235

Fast track dispatch on Wed 4 Nov

1 Piece(s)Conrad Electronic

1.7 A

24 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

MEAN WELL LED converter 60 W 1700 mA 48 V dimmable Max. operating voltage: 300 V

Item no:3431237

Fast track dispatch on Wed 4 Nov

3 Piece(s)Conrad Electronic

1.7 A

48 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

MEAN WELL LED converter 60 W 1700 mA 48 V dimmable Max. operating voltage: 300 V

Item no:3431238

Fast track dispatch on Wed 4 Nov

6 Piece(s)Conrad Electronic

1.7 A

48 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

MEAN WELL LED converter 25 W 1050 mA 54 V dimmable

Item no:3431228

Unavailable

Conrad Electronic

1.05 A

54 V

25 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

MEAN WELL LED converter 25 W 1050 mA 54 V dimmable

Item no:3431227

Unavailable

Conrad Electronic

1.05 A

54 V

25 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

MEAN WELL LED converter 40 W 54 V dimmable Max. operating voltage: 300 V

Item no:3431231

Unavailable

Conrad Electronic

54 V

40 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

MEAN WELL LED converter 40 W 54 V dimmable Max. operating voltage: 300 V

Item no:3431232

Unavailable

Conrad Electronic

54 V

40 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

MEAN WELL LED converter 60 W 1700 mA 12 V dimmable Max. operating voltage: 300 V

Item no:3431234

Currently not available

Conrad Electronic

1.7 A

12 V

60 W

300 V

100 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Documents & Downloads

Datasheet

Datasheet 3431236 MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V

User & Safety Instructions

User & Safety Instructions 3431236 MEAN WELL LED converter 60 W 1700 mA 24 V dimmable, adjustable Max. operating voltage: 300 V

Description

The XLC-60-MA series is a 60 W constant power and constant output LED driver that can be operated with 100-305 VAC and has a DIP switch output current of between 900 mA and 1700 mA. Thanks to the high degree of efficiency of up to 90%, it can be operated at a casing temperature of -25°C to -90°C under free air convection. Designed to meet the latest safety requirements, the XLC-60 MA series offers greater flexibility for LED lighting applications.
