Name: Barthelme LEDTREIB10 LED converter 350 mA 6 V DC surge protection Max. operating voltage: 265 V AC
Brand: Barthelme
SKU: 175947
Availability: InStock

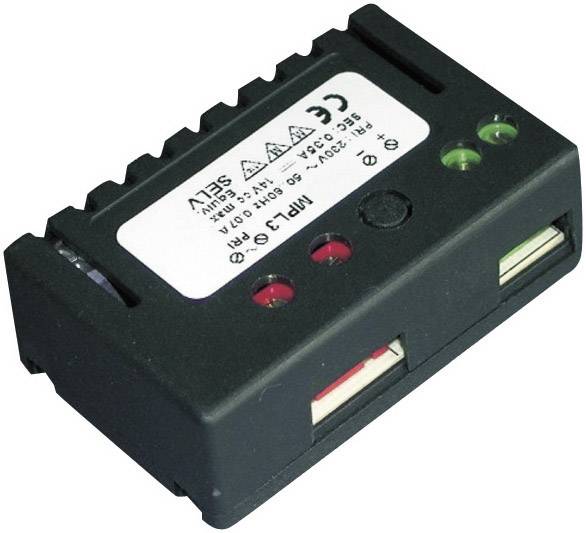

A rectangular electrical component with 'SELV' labelling, rounded corners, two USB ports and LED lights.

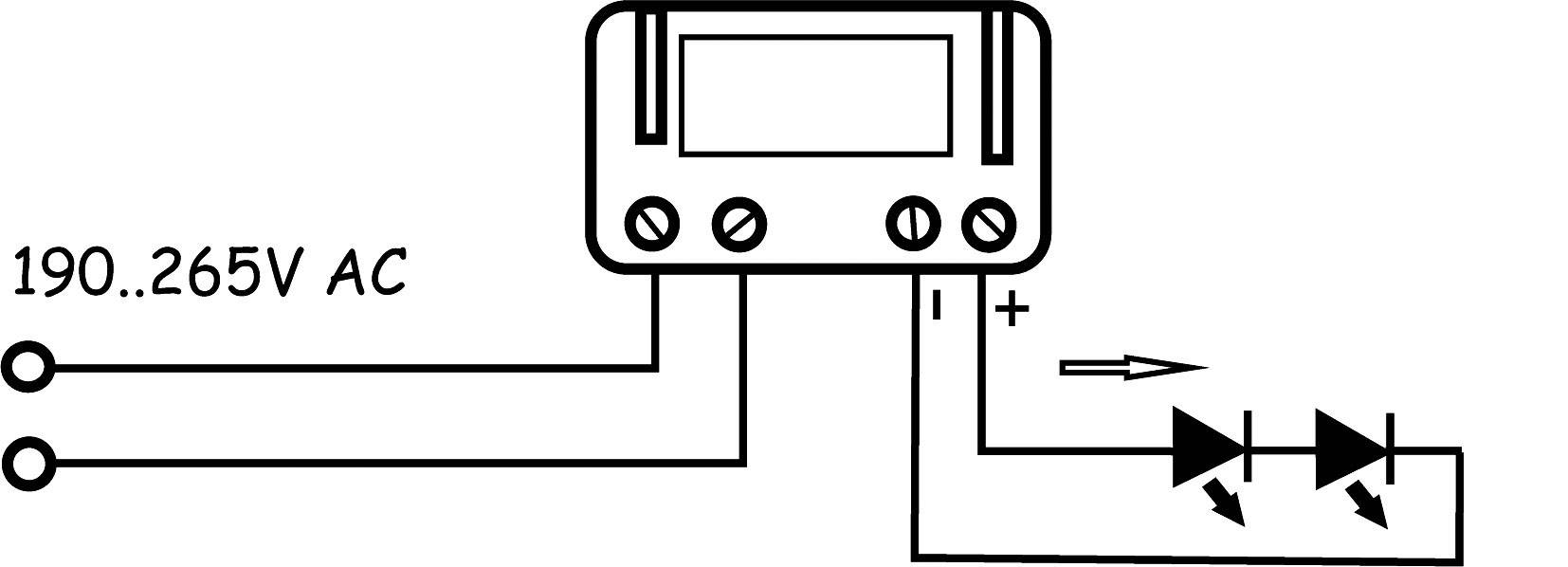

Circuit diagram shows a device for alternating current connection (190-265V AC) with two diodes in series, marked with '+' and '-' for direct current.

1/2

Image similar

Product type

LED converter

Connection

Screws

Output current (max.) - rounded

350 mA

Output voltage (max.)

6 V DC

Min. operating voltage

190 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Compact high power LED converter for mains voltage.

Our service for you

Technical specifications

Product type: LED converter

Operating voltage: 230 V AC

Operating voltage: 190 - 265 V AC

For LEDs: 1 W-LEDs (2 pieces)

No. of LEDs (max.): 2

LED features: surge protection

Connection: Screws

: IP20

Dim: (W x H x D) 51 x 32 x 18 mm

Max. output current: 350 mA

Output current (max.) - rounded: 350 mA

Height: 32 mm

Width: 51 mm

Output current (min.): 350 mA

Output voltage (max.): 6 V DC

Output voltage (min.): 6 V DC

Min. operating voltage: 190 V AC

Max. operating voltage: 265 V AC

RoHS-compliant: Yes

Depth: 18 mm

Output current (details): 350 mA

Operating voltage: 190 - 265 V AC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 175947 Barthelme LEDTREIB10 LED converter 350 mA 6 V DC surge protection Max. operating voltage: 265 V AC

User & Safety Instructions

User & Safety Instructions 175947 Barthelme LEDTREIB10 LED converter 350 mA 6 V DC surge protection Max. operating voltage: 265 V AC

Description

This built-in converter is suitable for a mains voltage of 230 V/AC and supplies high power LEDs with a constant current. Its small design allows it to be easily housed almost anywhere.

Features

Protection against excess temperature, short circuit or open power circuit on the secondary side.
With automatic reset.

Hints

While using red Power LEDs connect max. 1 LED !
