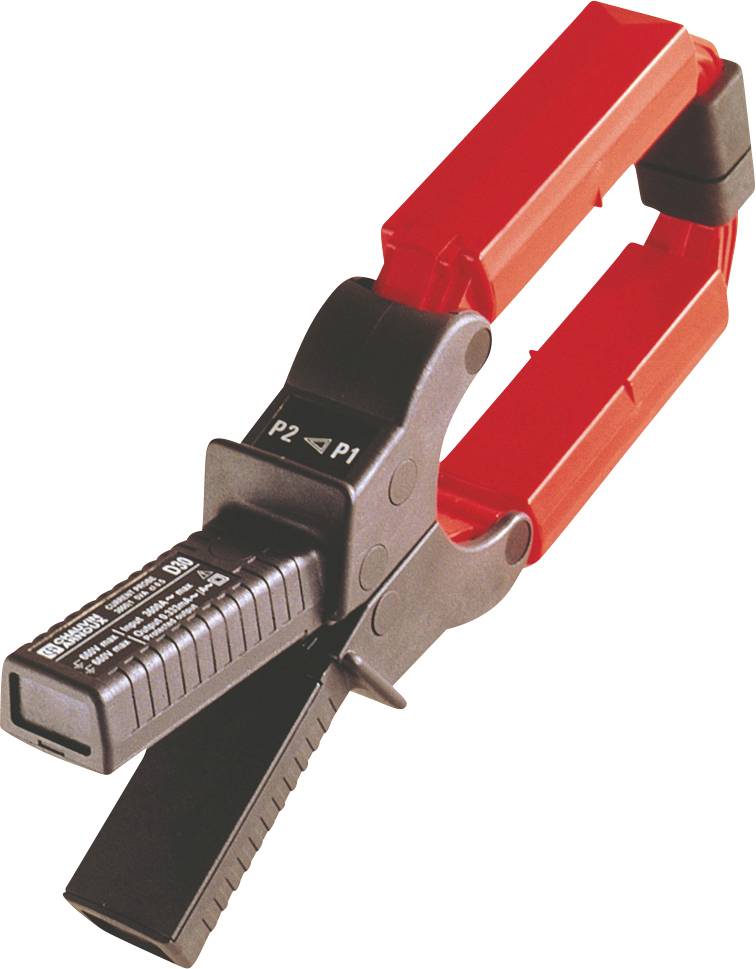

Buy Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

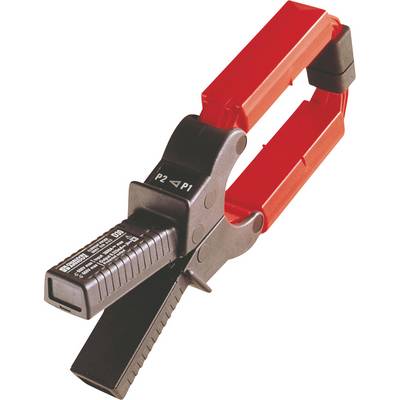

A red current clamp meter with a black handle and measurement probes, used for electrical measurements.

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 558.82 / piece)

€

Report legal concerns

Highlights & Details

Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

N/A
Opening range of current clamps 64 mm

Technical specifications

Gear ratio (input/output): 3000/1

Opening range of current clamps: 64 mm

Basic accuracy: 0.5 %

Dim: (L x W x H) 48 x 120 x 315 mm

Weight: 1200 g

Type B: 4 mm socket

Current reading: AC

Height: 315 mm

Length: 48 mm

Width: 120 mm

Max. frequency: 5 kHz

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT IV 300 V

Amperage reading range AC (max.): 3600 A

A AC reading range (min.): 1 A

Output signal (max.): 1 A

Product type: Clamp meter adapter

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199866

This article

3600 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199866 Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

User & Safety Instructions

User & Safety Instructions 2199866 Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

Description

The "D" series offers clamp transformer for accurate measurement of alternating currents up to 3000 A.
The rectangular shape of the jaws, the quality of the magnetic circles and the distributed windings allow precise measurements on thick cables and busbars.

This text is machine translated.

Scope of delivery

1 user manual
