Combination INSERT 1x Germany 2xRJ45 Modlink MSDD Murrelektronik Content: 1 pc(s)

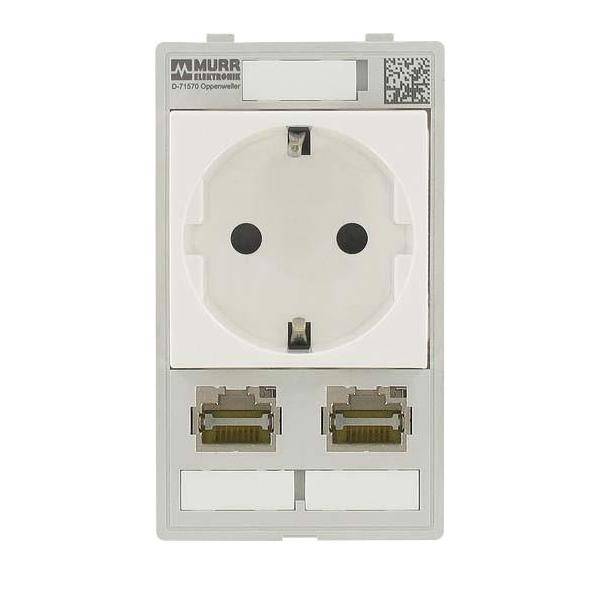

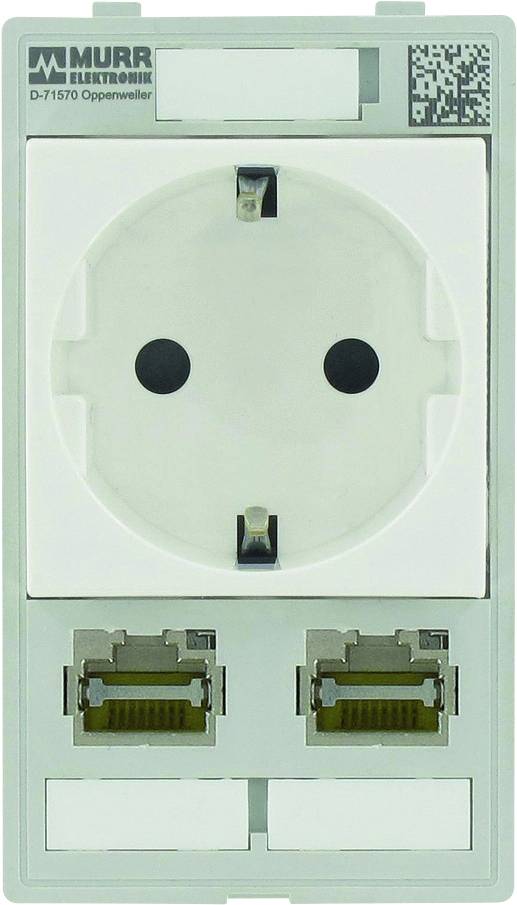

Electrical socket with two network ports underneath. The Murr Elektronik logo and address in Oppenweiler are visible at the top.
Image similar
Packaging type
Piece
Connector type
RJ45 sleeve inset
Dim
(L x W x H) 43 x 50.7 x 87.5 mm
Manufacturer part #
4000-68000-4500004
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 12 Nov
1 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 71.99 / piece)
€ 71.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Piece(s) available
Only available for business customers
14-day return policy included
Report legal concerns

Technical specifications

  • Connection front side: RJ45
  • Rear connection: RJ45
  • Screen plate Connection type: Thread M4
  • Connection type: Spring-loaded terminals: Max. 2× 2.5 mm² (AWG 14)
  • Tightening torque: 0.9 Nm
  • Storage temperature range -10 °C - +60 °C.
  • No. of pins 2 + PE
  • Protection class: IP20
  • Temperature range: -5 °C – +50 °C
  • Slot locking: Snap-in
Packaging type

Piece

Connector type

RJ45 sleeve inset

Dim

(L x W x H) 43 x 50.7 x 87.5 mm

Manufacturer part #

4000-68000-4500004

Content

1 pc(s)

Width

50.7 mm

Height

87.5 mm

Length

43 mm

Max. temperature

50 °C

Min. temperature

-5 °C

Type

Modlink MSDD

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2310265 Combination INSERT 1x Germany 2xRJ45 Modlink MSDD Murrelektronik Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2310265 Combination INSERT 1x Germany 2xRJ45 Modlink MSDD Murrelektronik Content: 1 pc(s)
