Counttec EC616C EC616C Portable electricity meter Digital 16 A MID-approved: Yes 1 pc(s)

A grey electrical measuring instrument with a digital display, housed in a plastic casing, suitable for industrial applications.
An electrical measuring instrument in an enclosure with an open lid. Display showing measurement readings.

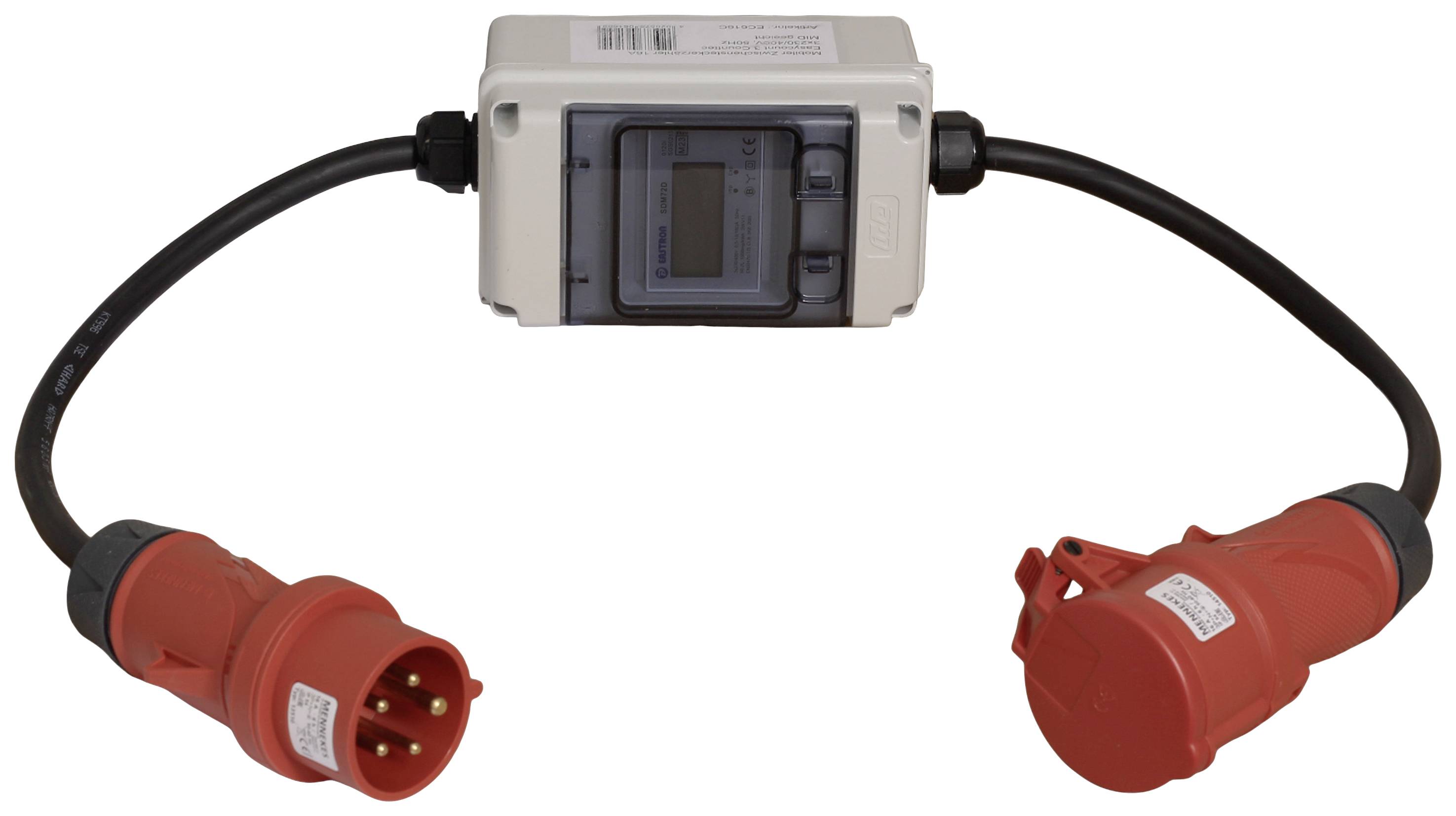

A white enclosure with an integrated meter is connected by black cables with two red industrial plugs.

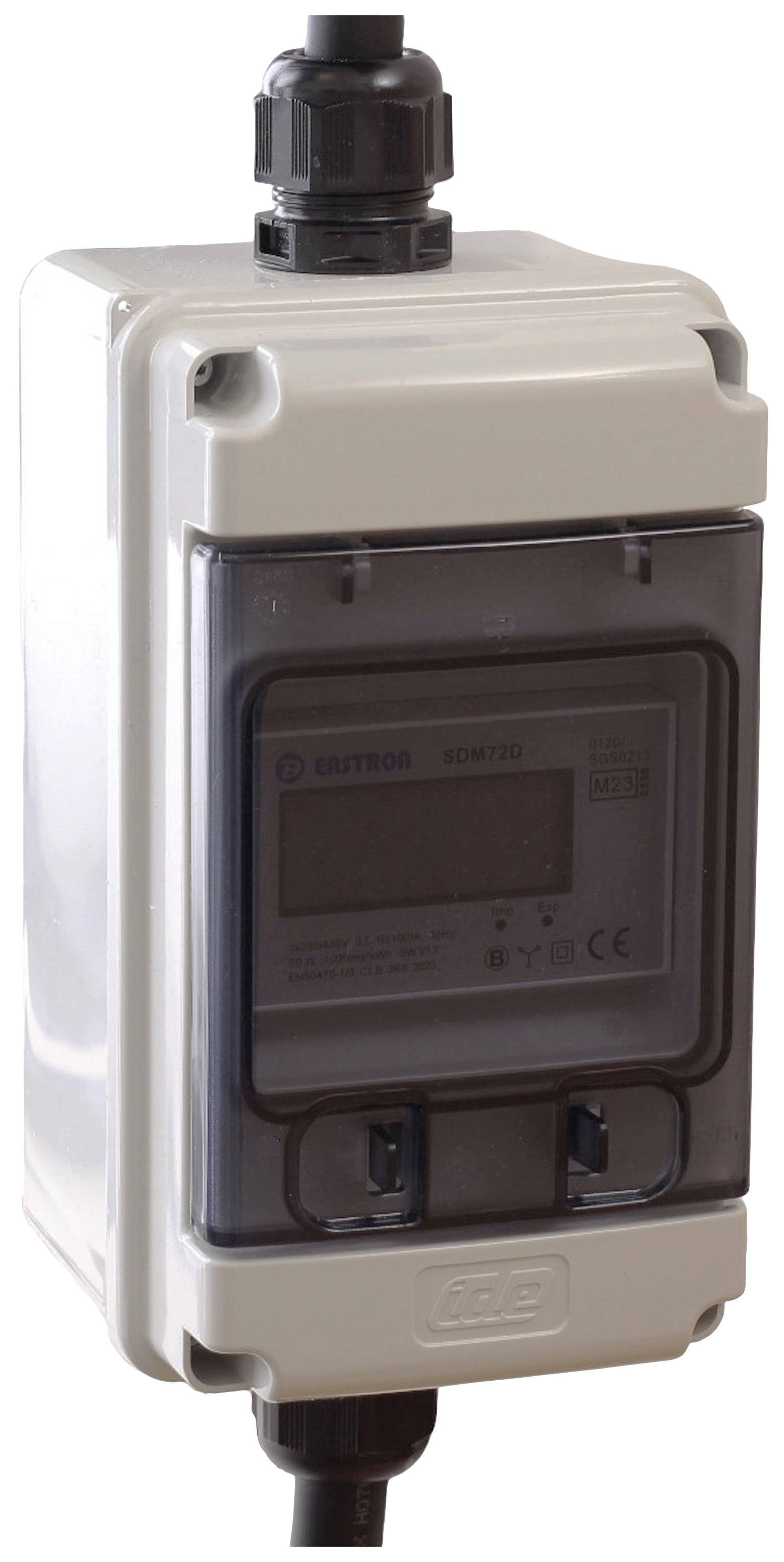

A robust, grey electrical measuring instrument in a protective enclosure with a digital display, indicating standard industrial usage.
A white electrical protective enclosure with a transparent lid and cable connections.

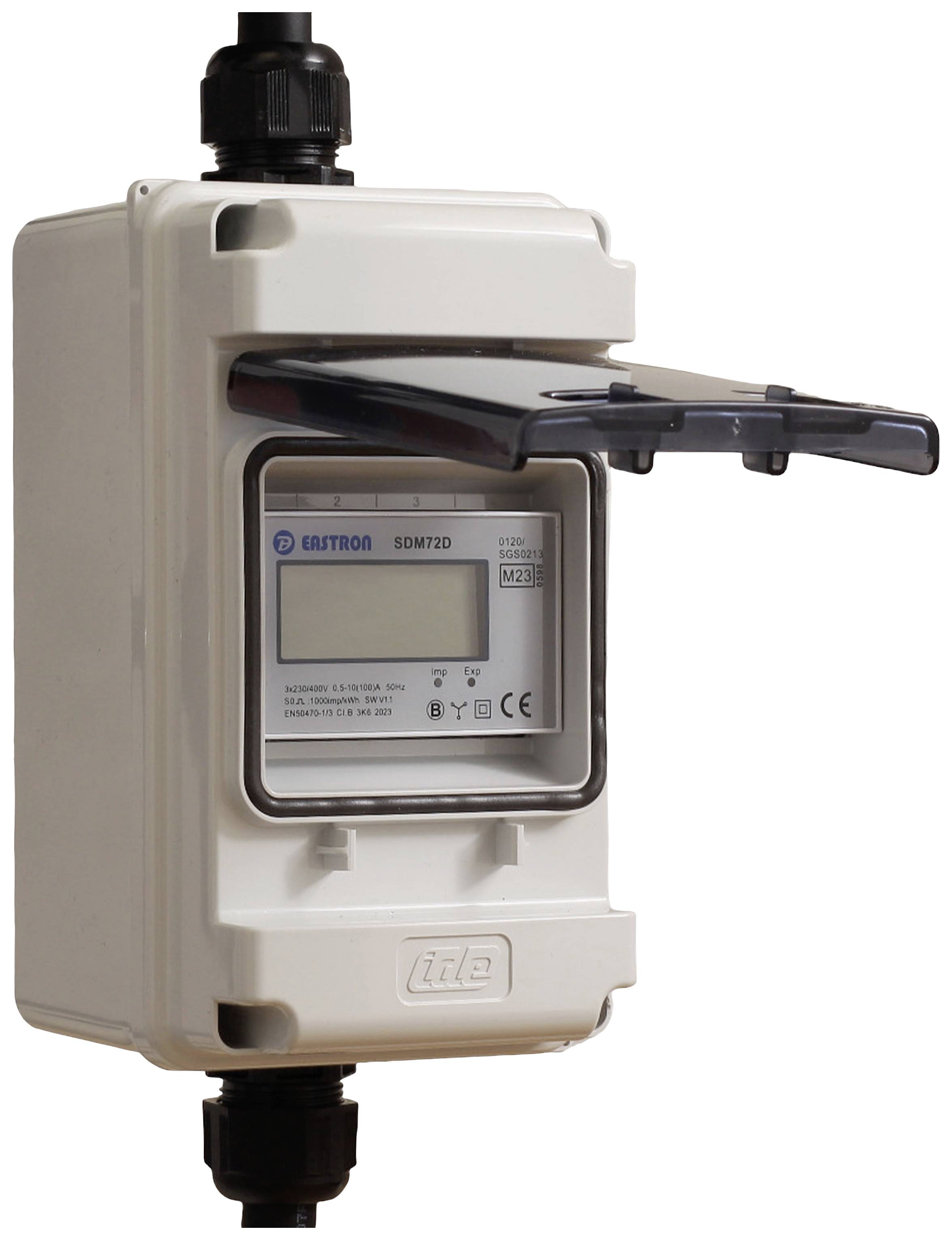

Electrical meter box with an open lid displaying a digital screen. The screen shows technical information and symbols.
1/6
Product type
Portable electricity meter
Current load
16 A
Display
Digital
Calibration
Calibrated
Operating voltage
3 x 230/400 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
6 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 295.00 / piece)
€ 295.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 6 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Three-phase meter with CEE plug and coupling

  • Mobile intermediate counter in three-phase design for fast energy measurementFlexible, position-independantapplicable , robust castPrecise measurement , MID calibrated three-phase meter, IP 54

Technical specifications

  • Voltage input 3x 230/400VInsulation resistance: 2kV for 1 minuteInterference voltage pulse: 4kV 1.2 µs waveformTemperature range 20 - +50 50°CABS casingAccuracy class 1IP 54 rated enclosure
Product type

Portable electricity meter

Current load

16 A

Display

Digital

Calibration

Calibrated

Operating voltage

3 x 230/400 V AC

Factory colour

White

Self-consumption

0.5 W

Frequency

50 Hz

Accuracy class

1

MID-approved

Yes

Reading type

Energy consumption

Nominal voltage range

230 up to 400 V AC

Mains voltage (max.)

400 V AC

Mains voltage (min.)

230 V AC

Current (max.)

16 A

Current range

16 A (max)

Type

EC616C

Documents & Downloads

Datasheet

Datasheet 2543013 Counttec EC616C EC616C Portable electricity meter Digital 16 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2543013 Counttec EC616C EC616C Portable electricity meter Digital 16 A MID-approved: Yes 1 pc(s)

Description

The Easycount 3 is an energy meter, installed in a sealed, impact-resistant housing.It is shock-proof and protected against moisture. The cable ends are provided with connectors and Clutches.The in-built three-phase meter is with MID approval and thus suitable for billing purposes.
