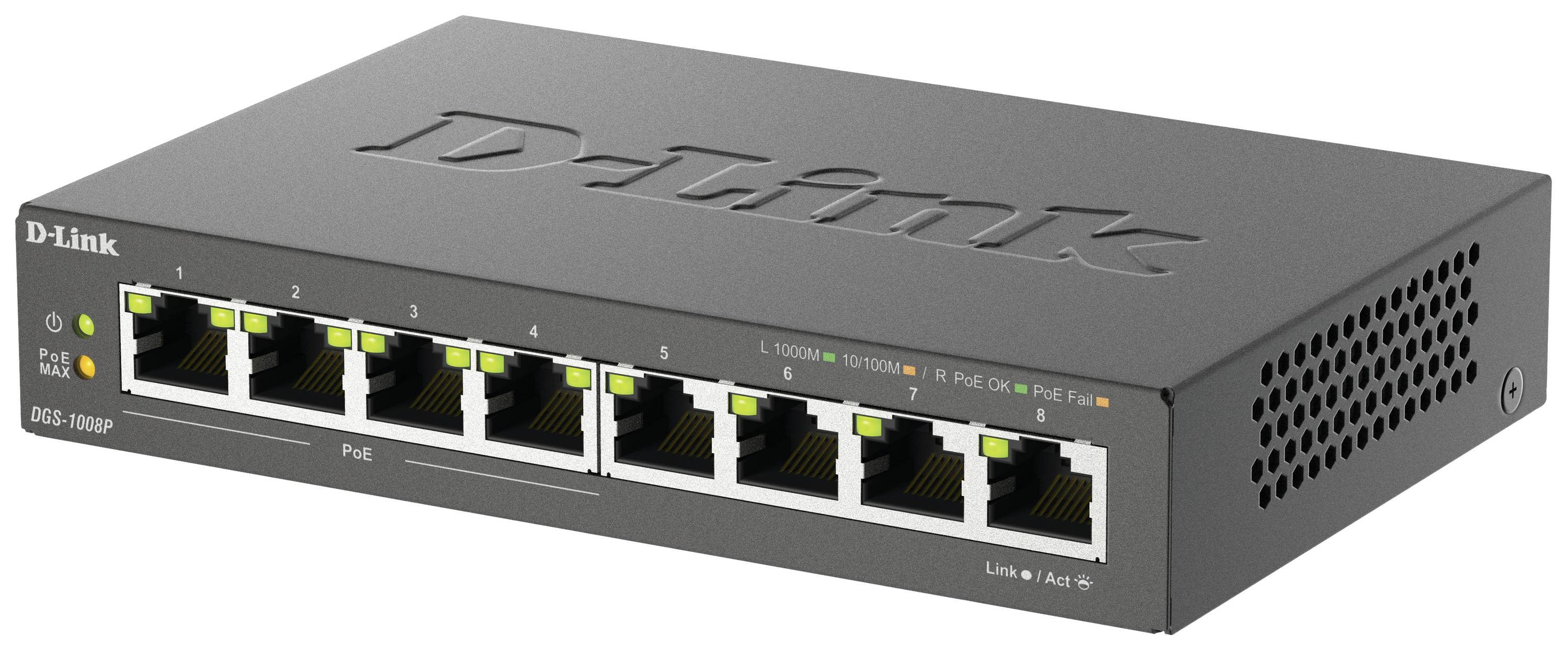

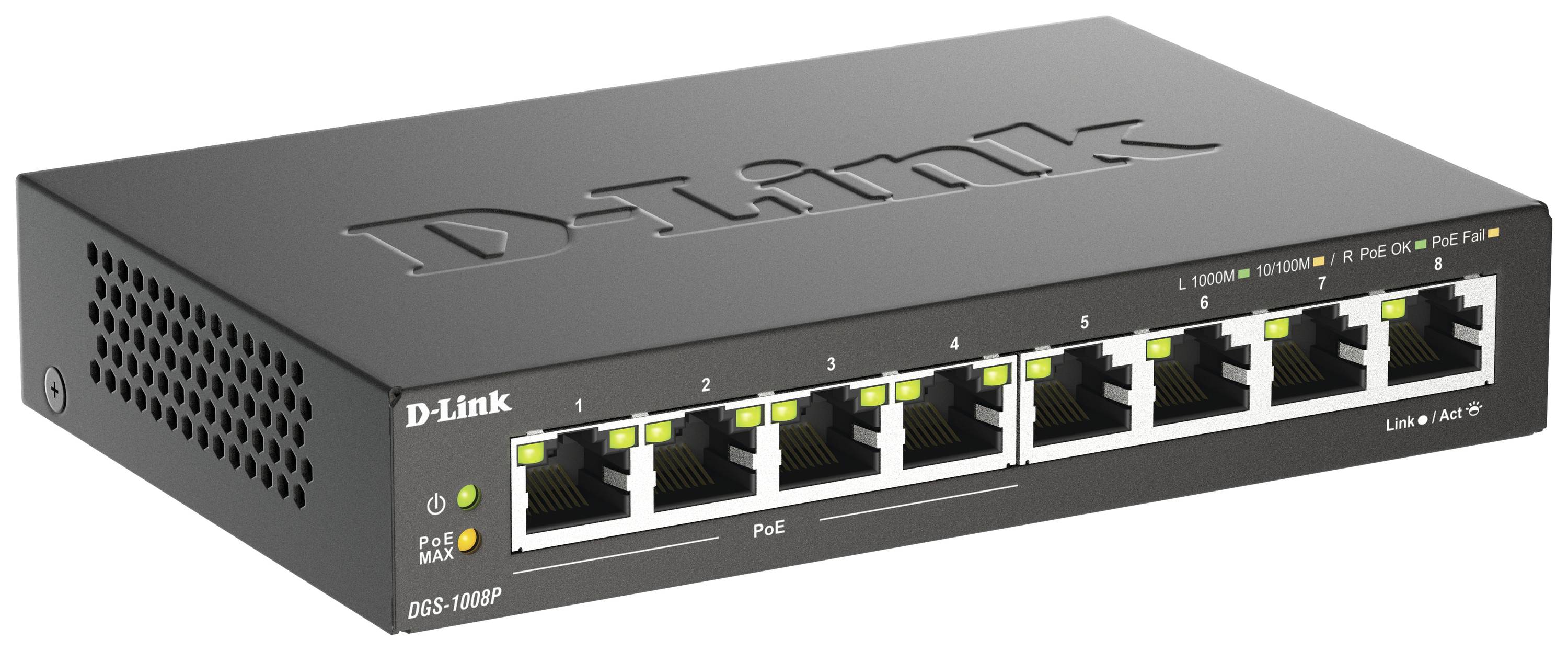

Name: D-Link DGS-1008P/E DGS-1008P Network switch 8 ports 1 GBit/s PoE
Brand: D-Link
SKU: 986109
Availability: InStock

Highlights & Details

D-Link 8 ports PoE Smart SW L2 DGS-1008P/E

Gigabit speed with up to 2000 MBit/s per port (full duplex)
Four connections with Power-over-Ethernet
Mechanism for protection against over voltage

Technical specifications

Ports 1-4 are PoE connections
PoE-capacity 52W
Power consumption min. 2.1 W
Max. 6.2 W or 63.2 W with PoE
Metal housing, 0-50 °C operating temperature
On/off switch
Cable Diagnostics, noiseless without fans
Opt. Accessories DWL-P50 PoE Splitter

Product type: Network switch

Transfer rate: 1 GBit/s

Ethernet ports: 8

IEEE 802.3af PoE: Ja

PoE ports: Nein

10/100/1000 Mbps ports: 8 x

Auto-uplink at each port: Yes

Jumbo frames: Yes

Router features: PoE

MAC addresses: 4000

Weight: 0.630 kg

Width: 190 mm

Height: 38 mm

Depth: 120 mm

Type: DGS-1008P

Interfaces: RJ45

Factory colour: Multicolour

Port: 8 ports

Length: 150 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 986109 D-Link DGS-1008P/E DGS-1008P Network switch 8 ports 1 GBit/s PoE

User & Safety Instructions

User & Safety Instructions 986109 D-Link DGS-1008P/E DGS-1008P Network switch 8 ports 1 GBit/s PoE

Description

This compact desktop switch with Power-over-Ethernet-support and energy-saving functions is ideally suited for use in small offices or in the home office. The DGS-1008P has eight Gigabit LAN connections and provides speed of up to 2000 Mbit/s (full duplex) and flow control for fast, continuous data transfers. Due to its fan-less design it works silently and it can be placed directly at your work station with no distracting noises.

Features

Cable diagnostics for testing the network cable on fault
Quality of service and jumbo frame support
Energy saving functions (D-Link green)
Without fans - it works silently
8x 10/100/1000 MBit/s TP (RJ-45) port, of which 4x IEEE 802.3af PoE compatible
Auto Uplink MDI-II/MDI-X
Noiseless without fans
A desktop unit (rubber feet included in the delivery)
External power supply with EU-appliance cable
IEEE 802.3x flow control at full duplex operation
Plug & Play installation
IEEE 802.1p QoS (priority control over 4 queues)
Cable diagnostics
Jumbo frames up to 9720bytes

Description

This compact desktop switch with Power-over-Ethernet-support and energy-saving functions is ideally suited for use in small offices or in the home office. The DGS-1008P has eight Gigabit LAN connections and provides speed of up to 2000 Mbit/s (full duplex) and flow control for fast, continuous data transfers. Due to its fan-less design it works silently and it can be placed directly at your work station with no distracting noises.
