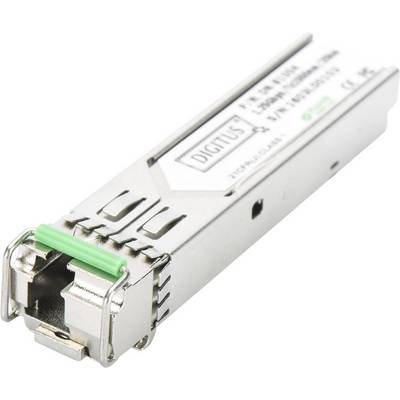

Digitus DN-81004 DN-81004 SFP transceiver module 1 GBit/s 20000 m
EAN:
Part number:
Item no:
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 8 Piece(s) available
mini GBIC (SFP) Module, 1.25 Gbps, 20km
Highlights & Details
- The plug and play fiber connection
- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
Technical specifications
- Product type
SFP transceiver module
- Transfer rate
1 GBit/s
- Interfaces
LC
- Distances up to
20000 m
- Weight
0.04
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1007879 Digitus DN-81004 DN-81004 SFP transceiver module 1 GBit/s 20000 m
Description
The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.
· Mini GBIC SFP (Small Form Factor Pluggable) module
· Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann, Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
· Bidirectional WDM Module - Only one fiber is needed
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Simplex
· Wavelength: Tx 1550nm / Rx 1310nm
· Transmission Power: Minimum -5 dBm, Maximum 0 dBm
· Sensitivity receiving power: minimum -24 dBm
· For a Distance of up to 20km
· Suitable for 09/125µm Singlemode Fiber Cables
· Safe fast-locking mechanism
· 3.3V power supply
· Mini GBIC SFP (Small Form Factor Pluggable) module
· Compatible with the following manufacturers: Allied Telesis, Allnet, CISCO, Dell, D-Link, Edimax, Hirschmann, Huawei, Intellinet, KTI Networks, Level One, Linksys, Netgear, PLANET, Tenda, TP-Link, TRENDnet, ZyXEL, ZTE
· Bidirectional WDM Module - Only one fiber is needed
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Simplex
· Wavelength: Tx 1550nm / Rx 1310nm
· Transmission Power: Minimum -5 dBm, Maximum 0 dBm
· Sensitivity receiving power: minimum -24 dBm
· For a Distance of up to 20km
· Suitable for 09/125µm Singlemode Fiber Cables
· Safe fast-locking mechanism
· 3.3V power supply
Features
- 1.25 Gbps maximum data rate
- Secure Schnellverschluss-Mechanismusafe
- 3.3V power supply
Scope of delivery
- SFP module
