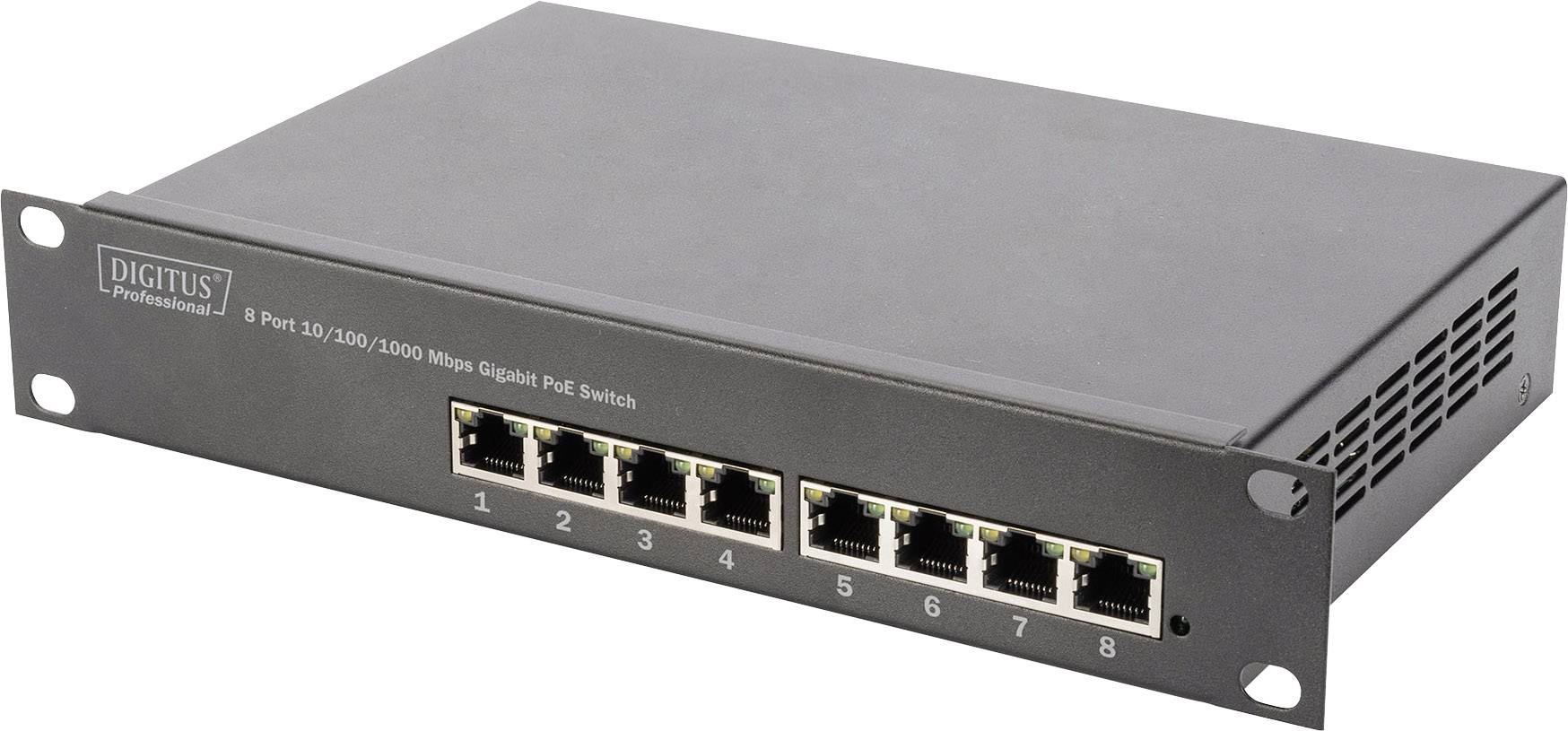

Digitus DN-95317 DN-95317 Network switch 8 ports 10 / 100 / 1000 MBit/s PoE
EAN:
Part number:
Item no:
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Digitus 10-inch 8-Port Gigabit Ethernet PoE switch, 8 x 10/100/1000 Mbp, s RJ45, PoE 96 W, including 10-inch angle
Highlights & Details
- 8-Port 10/100/1000Base-T with PoE support
- Meets the network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x and IEEE 802.3af/at
- Supports Non-Blocking, Non-Head-of-Line Forwarding
- Includes mounting hardware for the 10 inch installation
Technical specifications
- Maximum output: 96 Watt
- Maximum output line per port: 30 Watt
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- IEEE 802.3af PoE
8
- PoE ports
8
- 10/100/1000 Mbps ports
8 x
- Router features
PoE
- Power supply (LOV)
mains-powered
- Weight
1140 g
- Width
254 mm
- Height
44 mm
- Depth
150 mm
- Type
DN-95317
- Interfaces
RJ45
- Factory colour
Multicolour
- Port
8 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1762579 Digitus DN-95317 DN-95317 Network switch 8 ports 10 / 100 / 1000 MBit/s PoE
Description
The DIGITUS ® 8-Port Gigabit Ethernet PoE switch provides 8 10/100/1000 Mbps RJ-45 Ports with PoE support available. All ports support Auto MDI/MDIX function, which is the need for crossover cables and uplink ports can be omitted. Low cost, easy handling and high performance are the strength of the DIGITUS® Gigabit Ethernet PoE 8 port switches and make it to an excellent choice for your network. Through the compact dimensions the switch can be installed in 10" wall housing. The mounting brackets are included with the product.
This text is machine translated.
This text is machine translated.
Features
- Supports backpressure and bandwidth control at each port
- Store-and-Forward technology for an optimized data transfer
- Automatic speed and half/full-duplex detection/setting
- 20 / 200 / 2000 Mbit in full-duplex mode
- Auto MDI/MDI-X function
- Backplane with 16 Gbps
- Supports up to 8 K MAC addresses
- Integrated power supply
