DISPLAY VISIONS LCD (W x H x D) 165 x 100 x 5.8 mm
Product type
LCD
Lighting type
LED
Height
100 mm
Width
165 mm
Screen size diagonal (inches)
7 inch
EAN:
Part number:
Item no:
Total (€ 154.99 / piece)
€ 154.99
incl. VAT
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Product type
LCD
- Screen size diagonal (inches)
7 inch
- Lighting type
LED
- Type (display)
TFT
- Operating voltage
3.30 V DC (min)
- Max. current consumption
110 mA
- Dim
(W x H x D) 165 x 100 x 5.8 mm
- Depth
5.8 mm
- Height
100 mm
- Width
165 mm
- Min. operating voltage
3.30 V DC
- RoHS-compliant
Yes
- Max. temperature
70 °C
- Min. temperature
-20 °C
Description

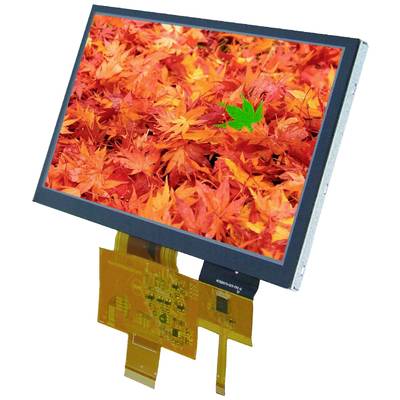

7" TFT display with 24 bit RGB interface. Long-term available industrial quality. The pin assignment is compatible within THE ELECTRONIC ASSEMBLY EA TFT series. The wide range of operating temperatures ranges from -20..+70°C. Integrated white LED lighting. Incl. Capacitive touch panel (PCAP) with I²C-Bus interface. ideal for entering data.
This text is machine translated.
This text is machine translated.
