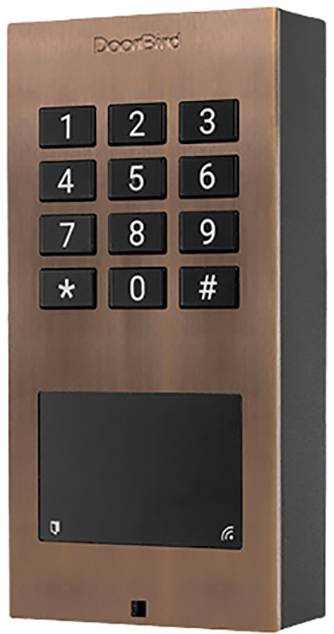

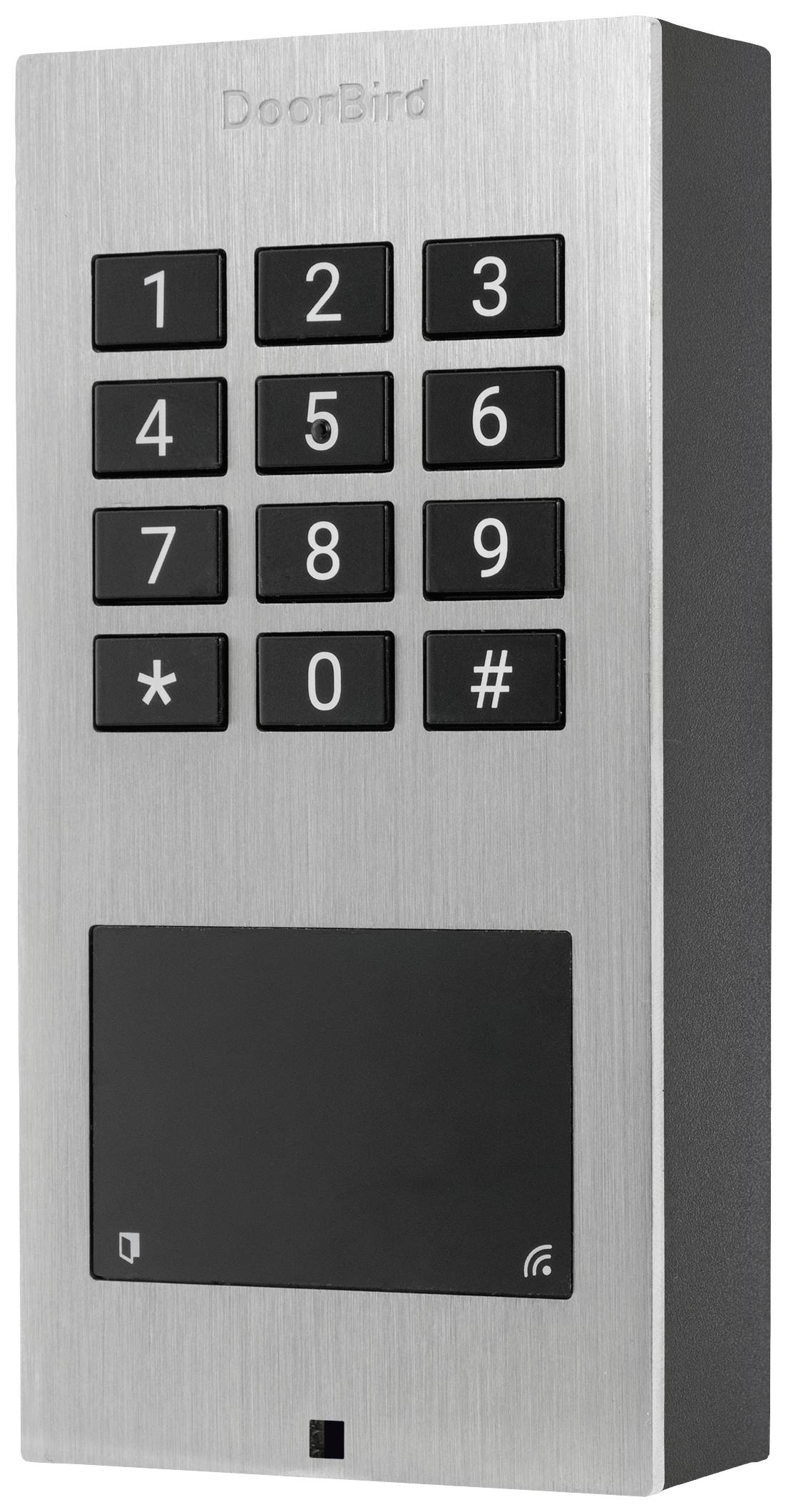

DoorBird 423872042 RFID keypad Surface-mount IP65 + backlit keypad
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 533.61 / piece)
€
Highlights & Details
DoorBird IP Access Control System A1121 Surface mounted, stainless steel V2A, brushed, PVD coating with bronze finish
- Keypad module, 12 keys, illuminated, configurable via appManpuing sensorRFID readerWIEGAND interfaceLAN/WLAN:
Technical specifications
- Wi-Fi 2.4 GHzRFID 13.56 MHz, 125 kHzEthernet: PoE 802.3af mode-A, 10/100 Base-TWi-Fi 2.4 GHz b/g/n
- Product type
RFID keypad
- Mounting type
Surface-mount
- No. of codes/combinations
500
IP65
- Weight
250 g
- Dim
(W x H x D) 62 x 128 x 28 mm
- Features
+ backlit keypad
- Factory colour
V2A stainless steel (brushed)
Bronze look
- Width
62 mm
- Height
128 mm
- Depth
28 mm
Documents & Downloads
Datasheet
Datasheet 2615924 DoorBird 423872042 RFID keypad Surface-mount IP65 + backlit keypad
Description
The DoorBird A1121 is a compact, IP-based multi-technology access control system that can also be installed as a stand-alone solution. It enables secure access control in areas where the installation of an IP video door station is not possible or desired, e.g. at rear and side doors, garages and underground garages, storage and packing rooms or bicycle and machine rooms. The keypad is illuminated so that you can install the device in an unlit environment.
This text is machine translated.
This text is machine translated.
Features
- RFID readerKeypad modulePVD coating.
Scope of delivery
- 1 x main electrical unit with front panel
- 1 x wall mounting bracket
- 1 x plug power supply (110 - 240 V AC to 15 V DC) with 4 landing adapters
- 1 x RJ45 adapter
- 1 x screwdriver
- 1 x Quick Start Guide with Digital Passport
- 1 x installation guide
- 1 x small parts.
Hints
RFID key Fobs sold separately.
System requirements
- IOS/Android
