Buy Sygonix SY-4730012 Code lock Surface-mount 12 V DC IP55

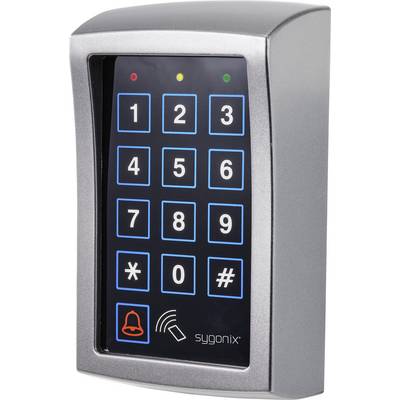

Electronic Number Lock with Illuminated Keypad. Displays keys from 0-9, asterisk and hash. Colours: Silver casing, blue key illumination.

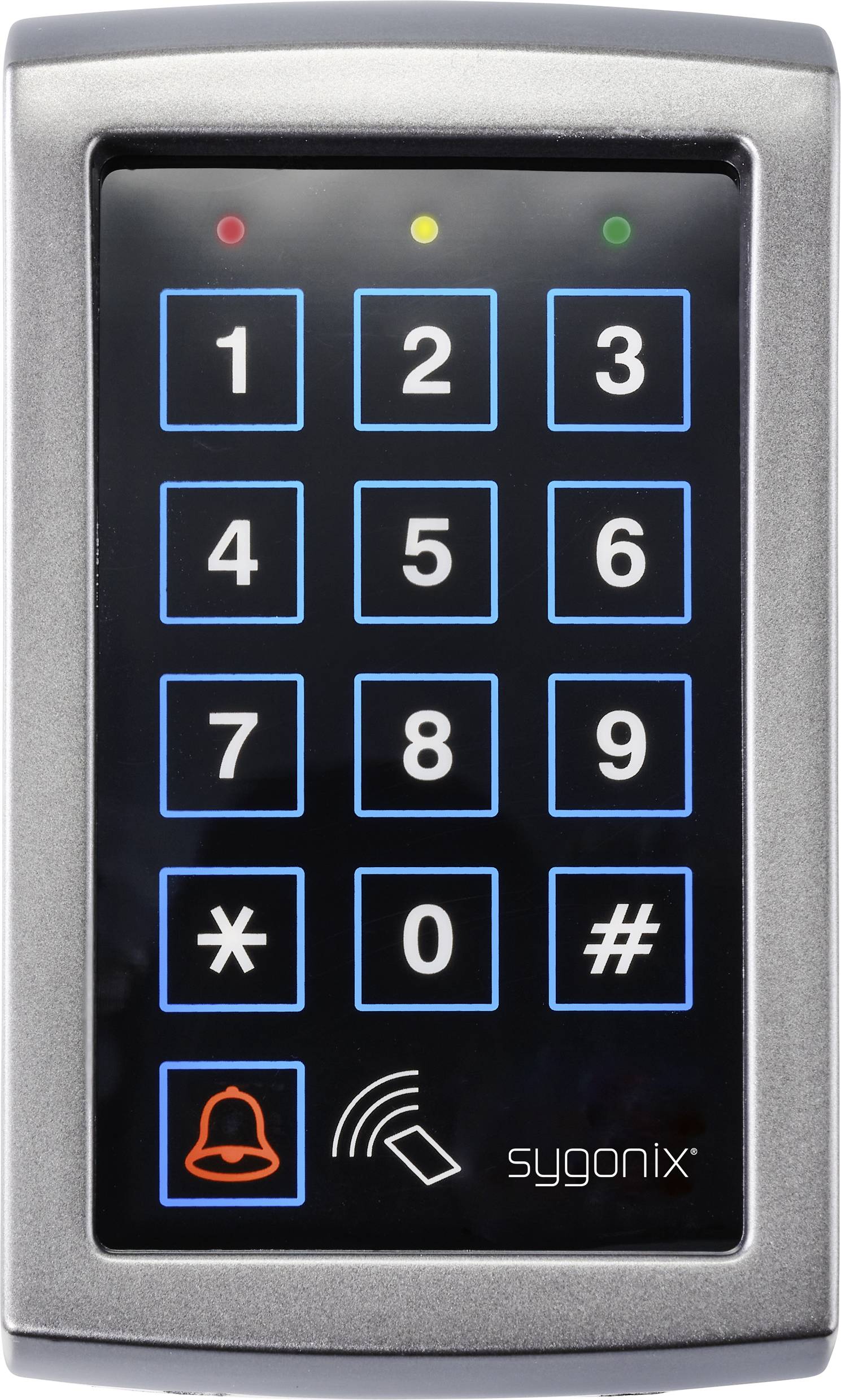

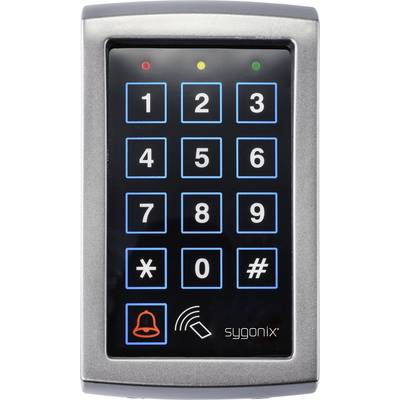

Keypad with numbers 0 to 9 and symbols for asterisk and hash. Underneath, symbols for bell and RFID. Three LEDs at the top.

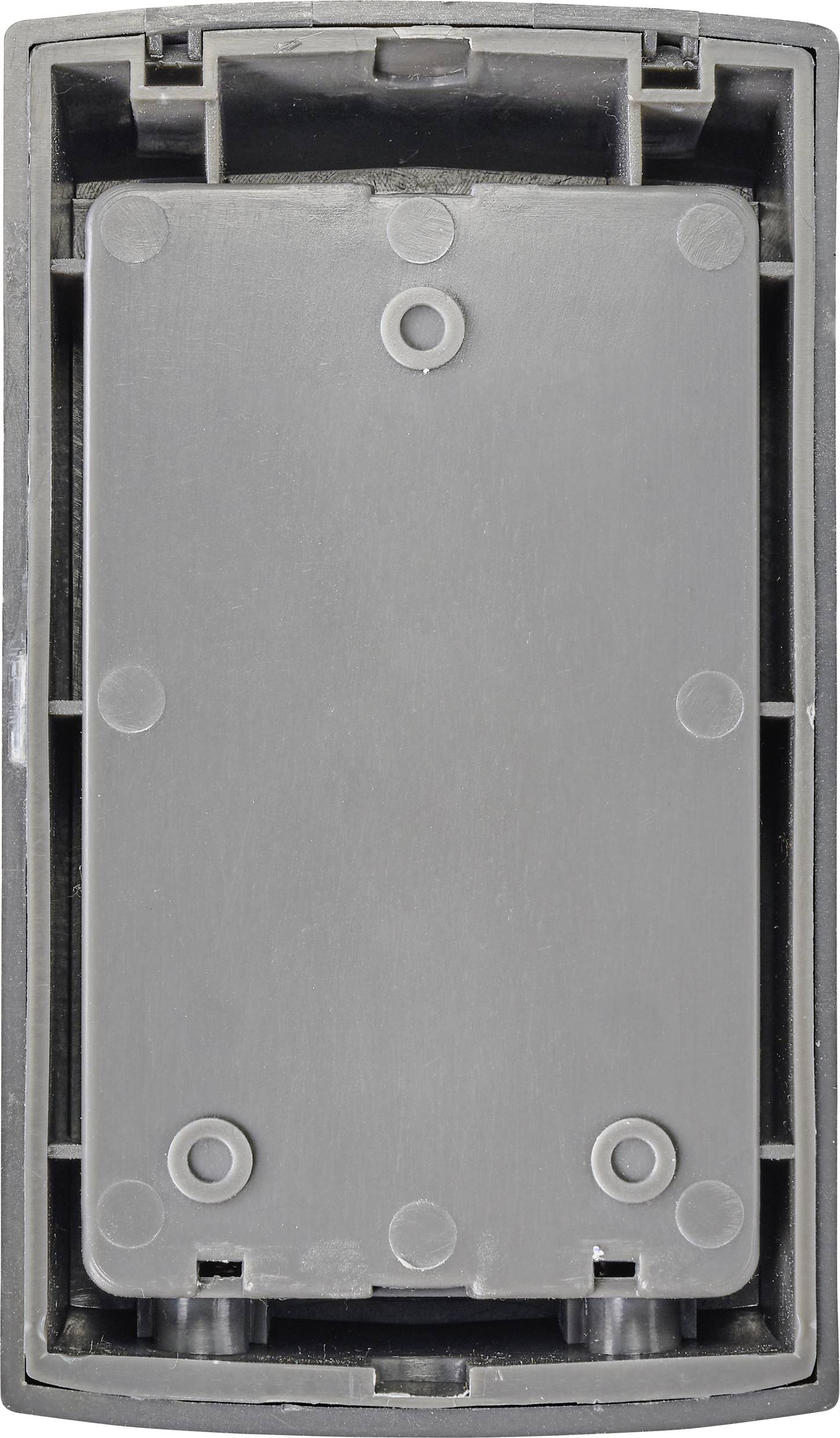

Grey, rectangular plastic casing with no visible logos or markings, potentially the rear side of an electronic device.

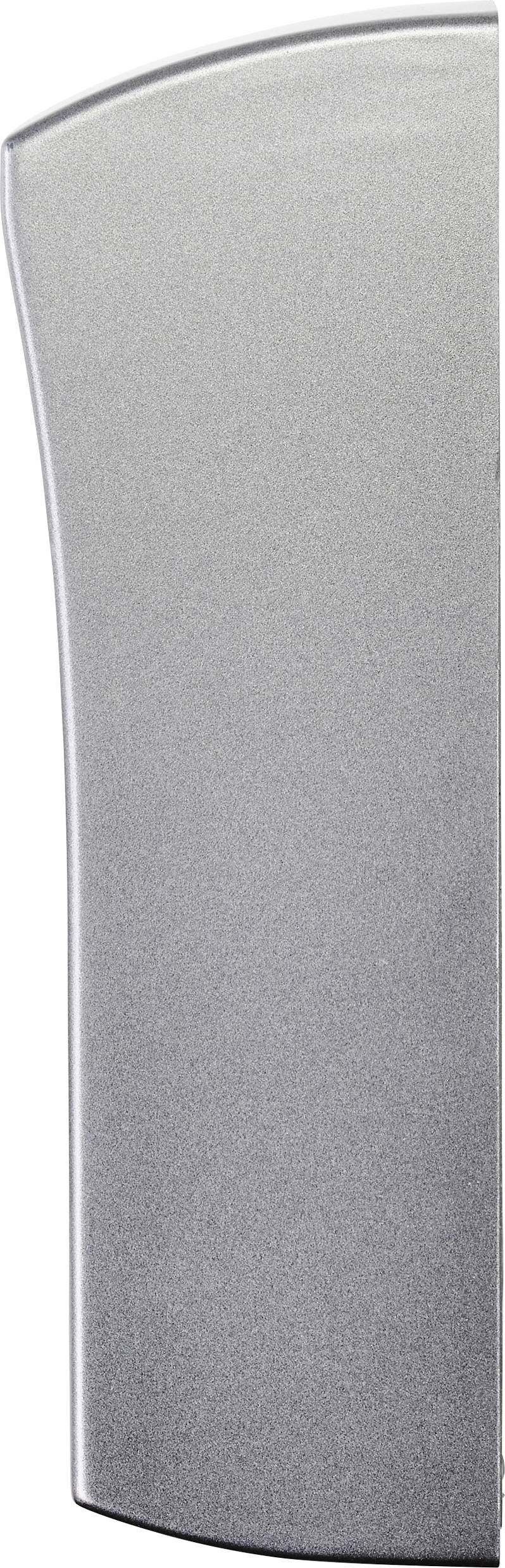

Grey, curved metal surface, vertically aligned.

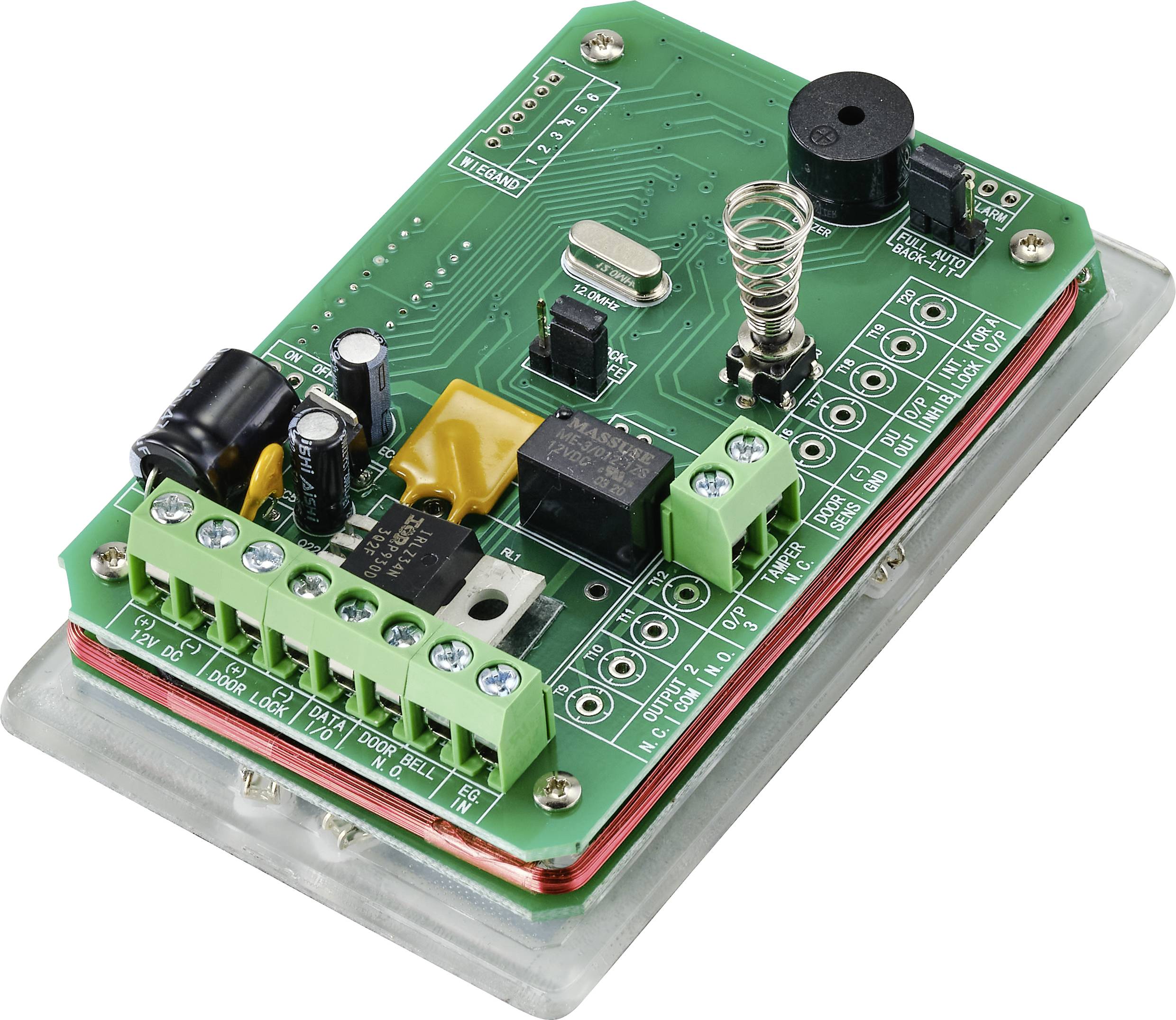

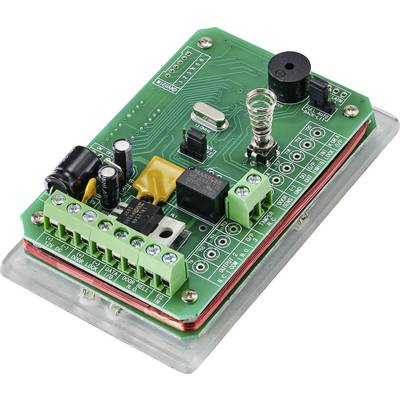

A green printed circuit board with various electronic components such as capacitors, inductors, and multiple terminal blocks.

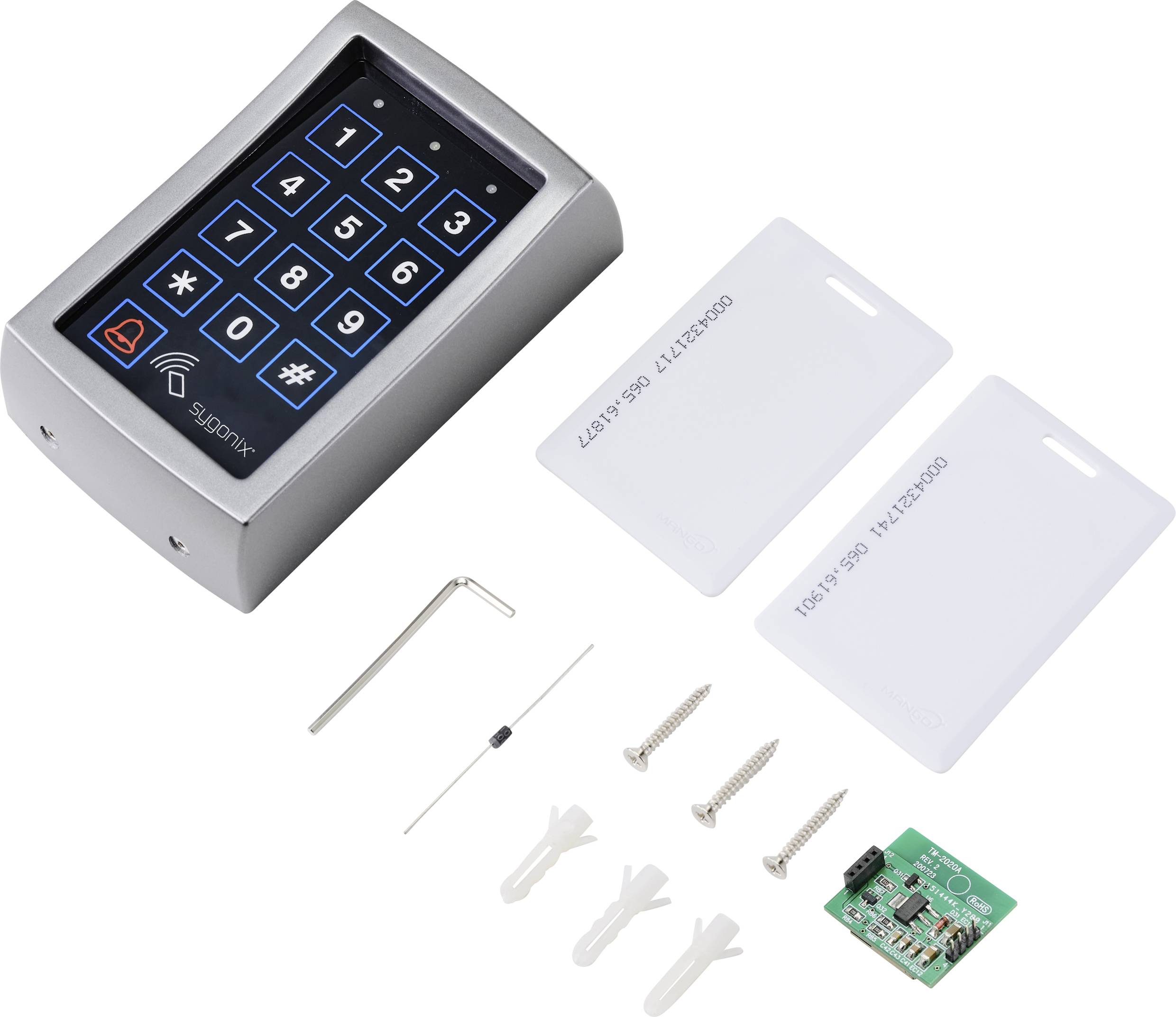

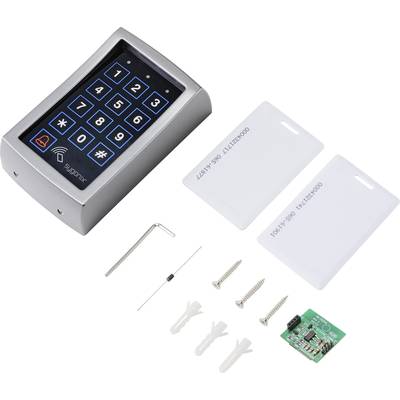

Access control system with electronic keypad and RFID cards. Accessories include mounting screws, screwdriver, resistor, and circuit board.

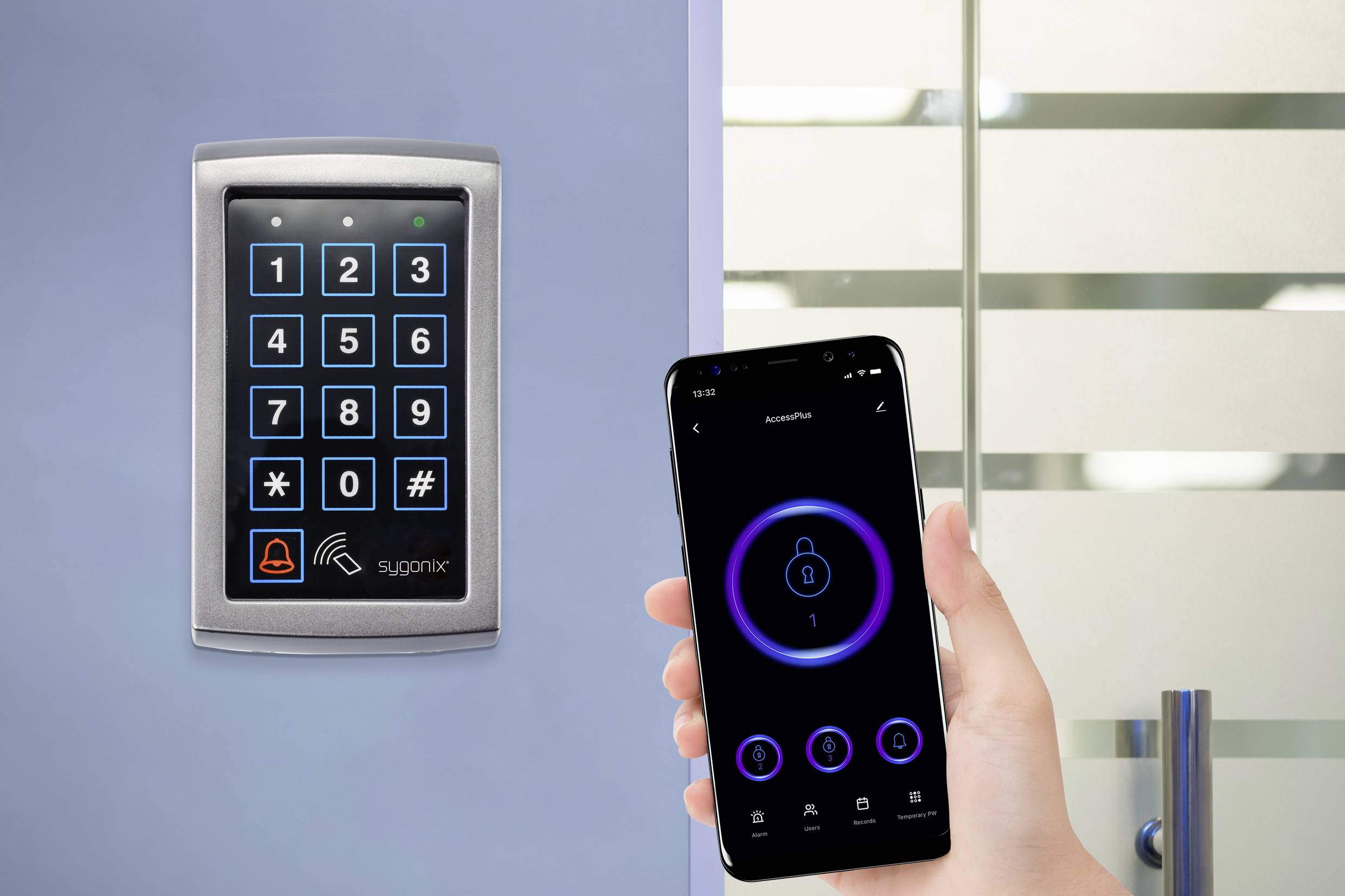

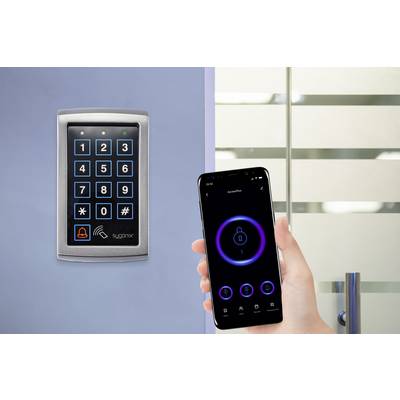

A hand holds a smartphone with an unlocked app near an access control panel with a keypad and RFID reader.

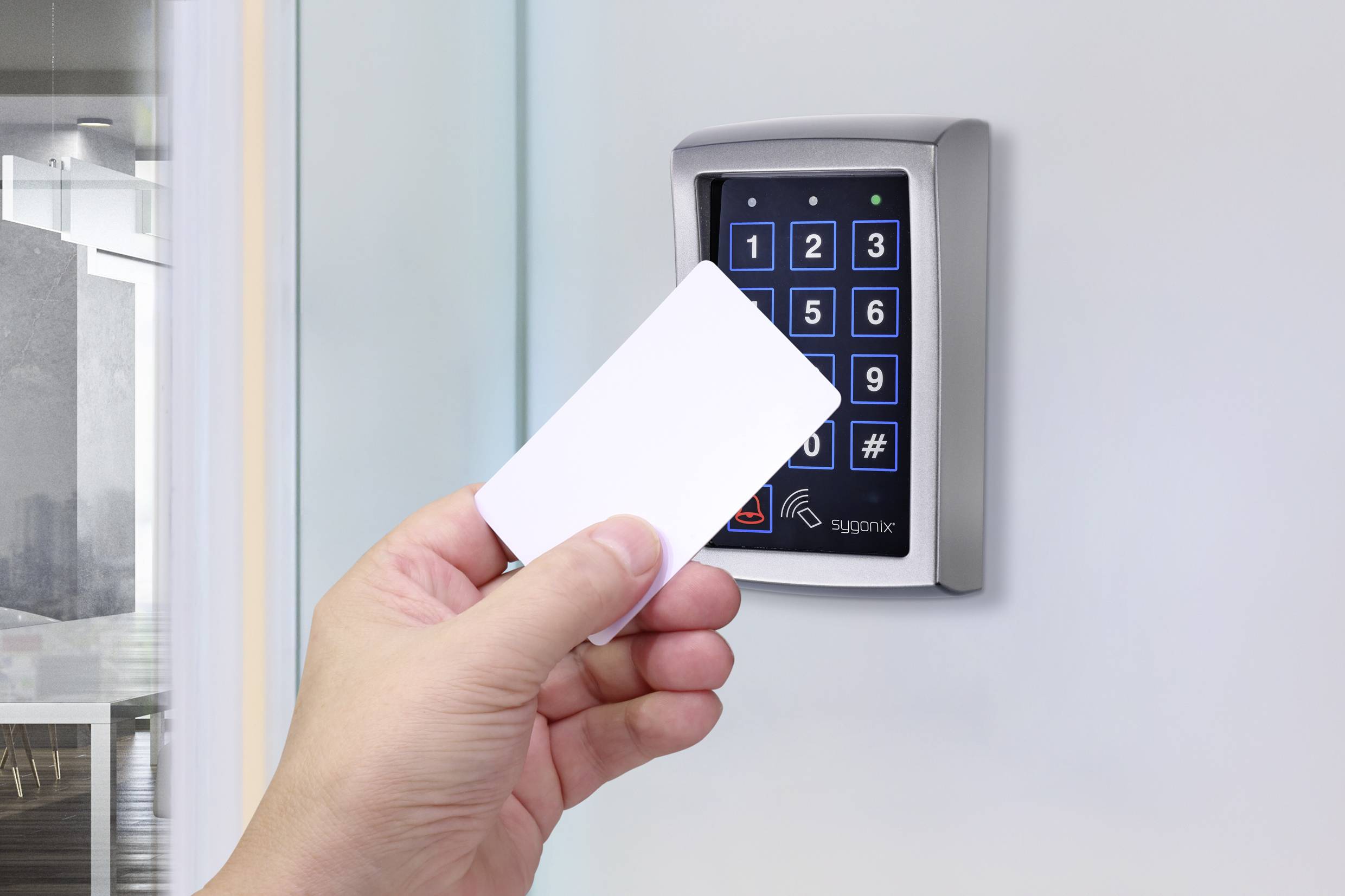

A hand holds an access card in front of an electronic keypad lock on a door, ready to use the access control system.

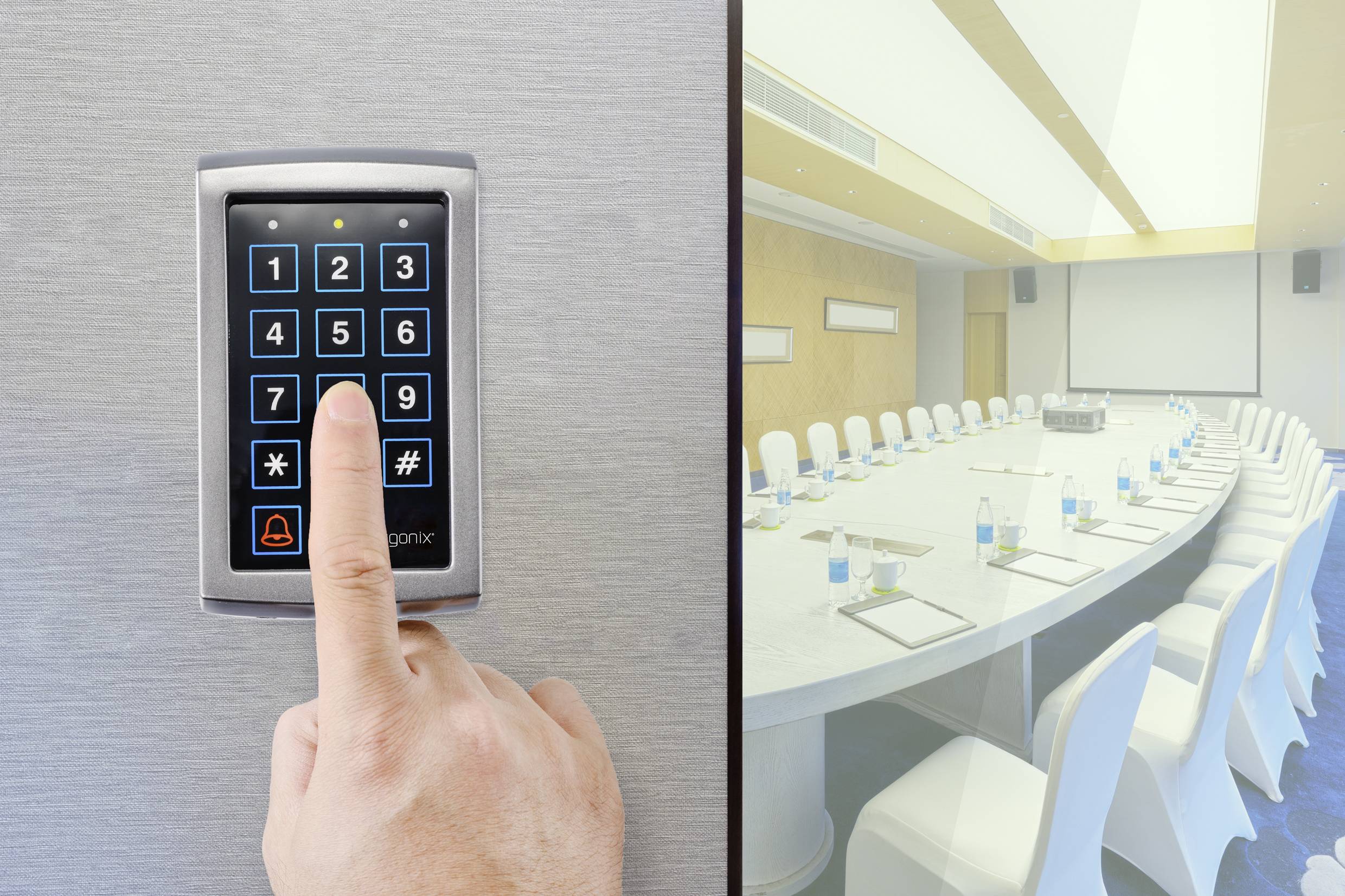

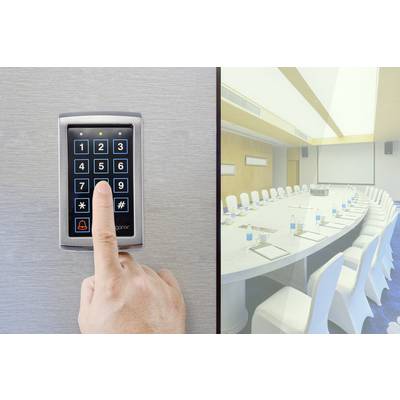

A person is pressing a button on an electronic door lock with a number pad next to an empty conference room.

1/9

Our service for you

135 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 77.30 / piece)

€

Report legal concerns

Highlights & Details

SYGONIX Wi-Fi Code Lock IP55

Stores up to 1000 users
Can be accessed via RFID card or PIN code
Remote control via mobile app

Pre-contractual information under the EU Data Act

Technical specifications

Product type: Code lock

Operating voltage: 12 V DC

Current consumption: 50mA to 180 mA

Mounting type: Surface-mount

Triggered by: Mobile phone
Numerical code
Transponder

No. of codes/combinations: 1000

LEDs: 3

Contact load capacity: 3A/16 VDC Max.

: IP55

: Tuya

Weight: 200 g

Dim: (W x H x D) 75 x 126 x 40 mm

Function: Remote control

Width: 75 mm

Height: 126 mm

Depth: 40 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2365006 Sygonix SY-4730012 Code lock Surface-mount 12 V DC IP55

Conformity certificate

Conformity certificate 2365006 Sygonix SY-4730012 Code lock Surface-mount 12 V DC IP55

Warranty Terms

Warranty Terms 2365006 Sygonix SY-4730012 Code lock Surface-mount 12 V DC IP55

Description

Clattering keys are a thing of the past!
With the Sygonix WLAN code lock with digital keypad, you can control your door locks and assign up to 50 visitor codes to guests or, for example, craftsmen.

This text is machine translated.

Features

Single output digital keypad for door lock control
50 visitor codes for temporary workers and visitors
12 V/DC operation, compatible with fail-safe or fail-secure electric door lock
Programmable time of 1-99 hours
Built-in bell button with 1 A/24 V rating
N.O. dry contact for external door chime actuation
Four delayed egress and warning options for user convenience and increased security
Built-in tamper switch with N.C. dry contact
125 kHz transponder reader
Remote control, alarm & access record viewing function
Temporary password can be configured via Wi-Fi
Siri voice control for iOS devices
Notification of the alarm status from the keypad
IP55 protection rating
