Eberle 101110251102 RTR-E 3524 Indoor thermostat Surface-mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 0.91
€ 22.61
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details

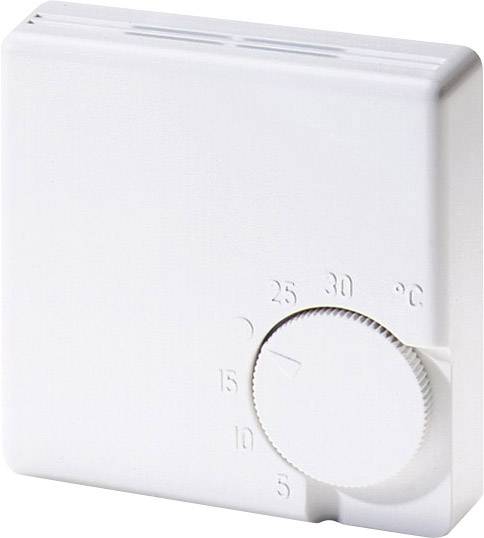

Eberle RTR-E 3524, room temperature controller
- Room regulator5 - 30 C.AC 230 V.1 Oe16 AWith TA approx. 5K
Technical specifications
- Switching current: AC 10 mA... 16(4) A; DC 100 W.
- Temperature reduction: 5 K (control via external timer)
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Surface-mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Hysteresis
0.5 K
- Nighttime drop
Yes
- Factory colour
Pure white
- Similar RAL
9010
- Width
75 mm
- Height
27.5 mm
- Length
27.5 mm
IP30
- Dim
(L x W x H) 27.5 x 75 x 27.5 mm
- Type
Heating
- Weight
75 g
- Contact type
1 breaker
- Min. temperature setting
5 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2206246 Eberle 101110251102 RTR-E 3524 Indoor thermostat Surface-mount Heating 1 pc(s)
Description
Room controller for wall mounting. Suitable for controlling central, hot water floor, electrical, night storage heaters, etc. Bimetal technology with thermal feedback and high precision. Temperature reduction possible via external timer. Surface mounting or directly on flush-mounted socket with vertical mounting holes or with snap-on mounting on DIN rail.
This text is machine translated.
This text is machine translated.
Scope of delivery
- ROOM TEMPERATURE REGULATOR User manual
