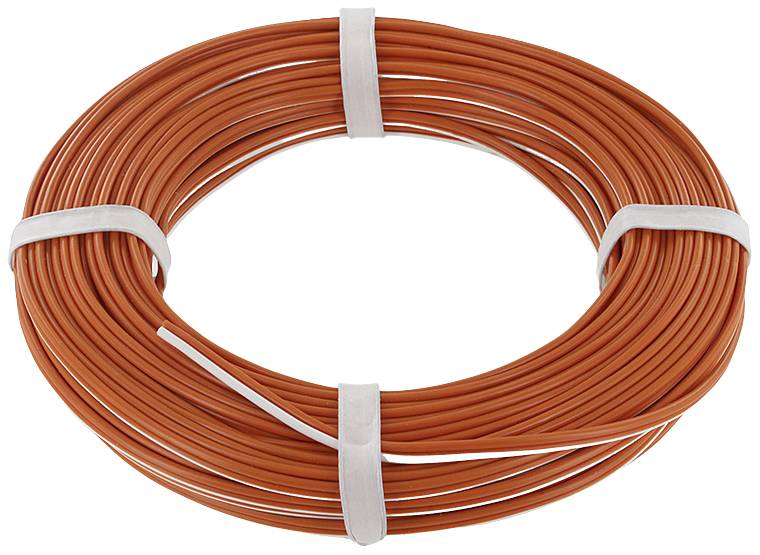

econ connect ZKL05WSOR20 Strand 2 x 0.5 mm² White, Orange 20 m
EAN:
Part number:
Item no:
Product type
Strand
No. of leads
2 x
Cross section (each core)
0.5 mm²
Cable features
Flat
Flexible
Cross section
2 x 0.5 mm²
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 1.39
€ 27.72
3
1 M = € 1.33
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 1.39)
€ 27.72
plus VAT.
Only 3 Set(s) available
Technical specifications
- Product type
Strand
- No. of leads
2 x
- Cross section (each core)
0.5 mm²
- Cross section
2 x 0.5 mm²
- Cable features
Flat
Flexible
- Width
3.7 mm
- Height
1.8 mm
- Factory colour
White
Orange
- Content
20 m
- Nominal voltage
500 V
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
ZKL05WSOR20
- Insulation material
PVC
- Core layout
2 x 16 x 0,2 mm
- Material (details)
Copper
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
85 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
85 °C
- Max. length sold by the metre
20 m
- Type
ZKL0,5/20WSOR
Documents & Downloads
Datasheet
Datasheet 2861447 econ connect ZKL05WSOR20 Strand 2 x 0.5 mm² White, Orange 20 m
User & Safety Instructions
User & Safety Instructions 2861447 econ connect ZKL05WSOR20 Strand 2 x 0.5 mm² White, Orange 20 m
