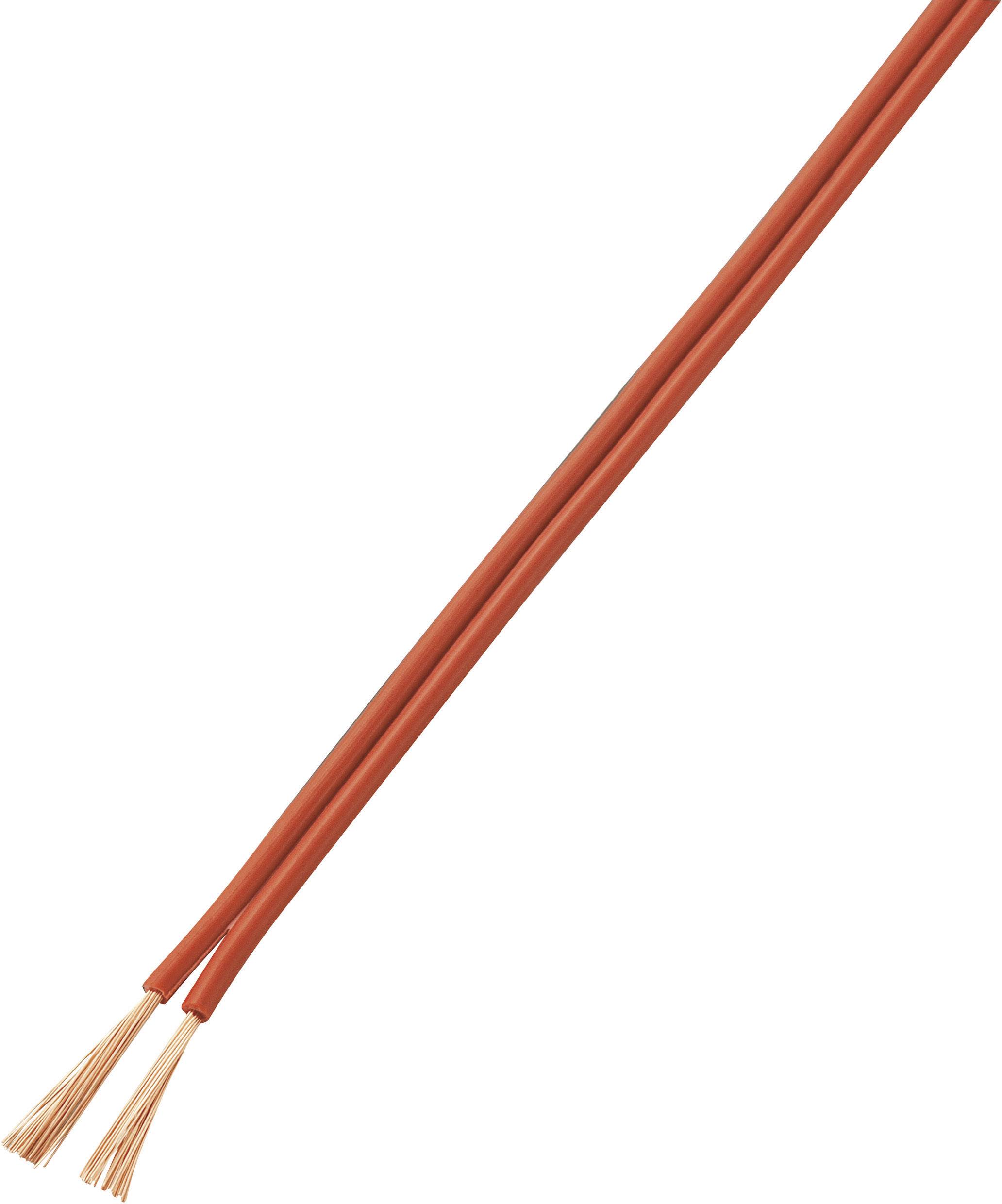

TRU COMPONENTS 1567144 Strand LiY-Z 2 x 1 mm² Red, Black 20 m
Product type
Strand
Cable type
LiY-Z
No. of leads
2 x
Cross section (each core)
1 mm²
Cable features
CCAW
Flexible
Flat
EAN:
Part number:
Item no:
Number
Total (1 m = € 0.70)
€ 13.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Strand
- Cable type
LiY-Z
- No. of leads
2 x
- Cross section (each core)
1 mm²
- Cross section
2 x 1 mm²
- Cable features
CCAW
Flexible
Flat
- Width
5 mm
- Height
2.4 mm
- Factory colour
Red
Black
- Content
20 m
- Nominal voltage
48 V
- AWG max.
17
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Manufacturer part #
1567144
- Insulation material
PVC
- Core layout
Ccaw
- Core layout
32 x 0.2 mm
- Material (details)
PVC
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Type
LiFY/CCA
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1567144 TRU COMPONENTS 1567144 Strand LiY-Z 2 x 1 mm² Red, Black 20 m
Description
This text is machine translated.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
CCA describes bi-metallic single and multi-wired lines/cables that are copper-plated with an aluminium core for high-frequency usage areas.
Specification explanation:
The "skin-effect", also known as current displacement, is a physical phenomenon caused by high-frequency alternating currents. The current density inside the conductor reduces compared to that at the outer surface as the frequency increases.
Scope of delivery
- Coil (20 m).
