Name: EDIMAX GS-1026 V3 GS-1026 V3 Network switch 24 + 2 ports 10 / 100 / 1000 MBit/s
Brand: EDIMAX
SKU: 2376441
Availability: InStock

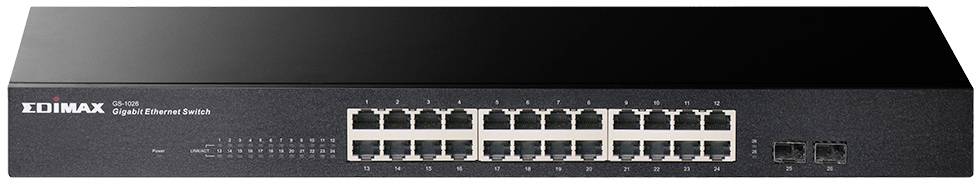

A black 24-port Gigabit Ethernet switch by Edimax. It has indicator lights and ports for network cables.

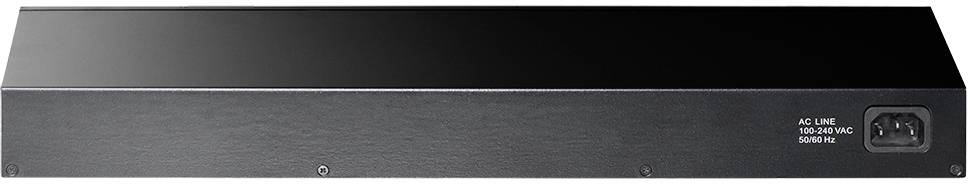

A black, rectangular electronic device, possibly an audio device, shows a power socket on the right side.

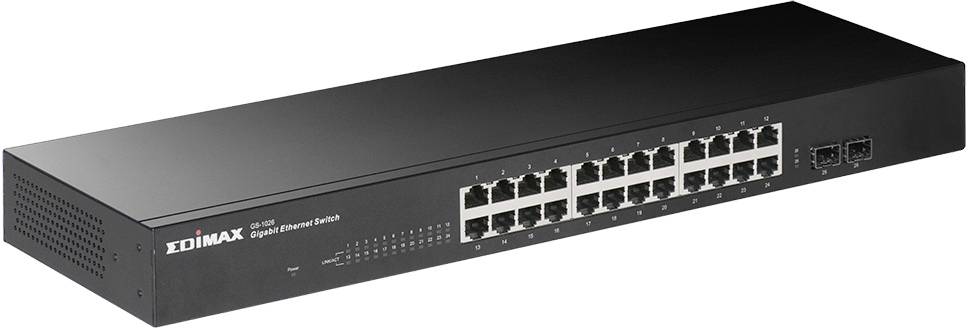

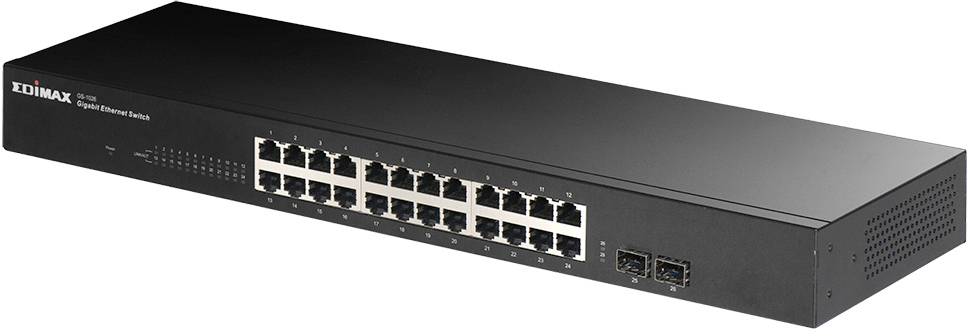

A black network switch with 24 Ethernet ports and two additional connection options, suitable for professional network applications.

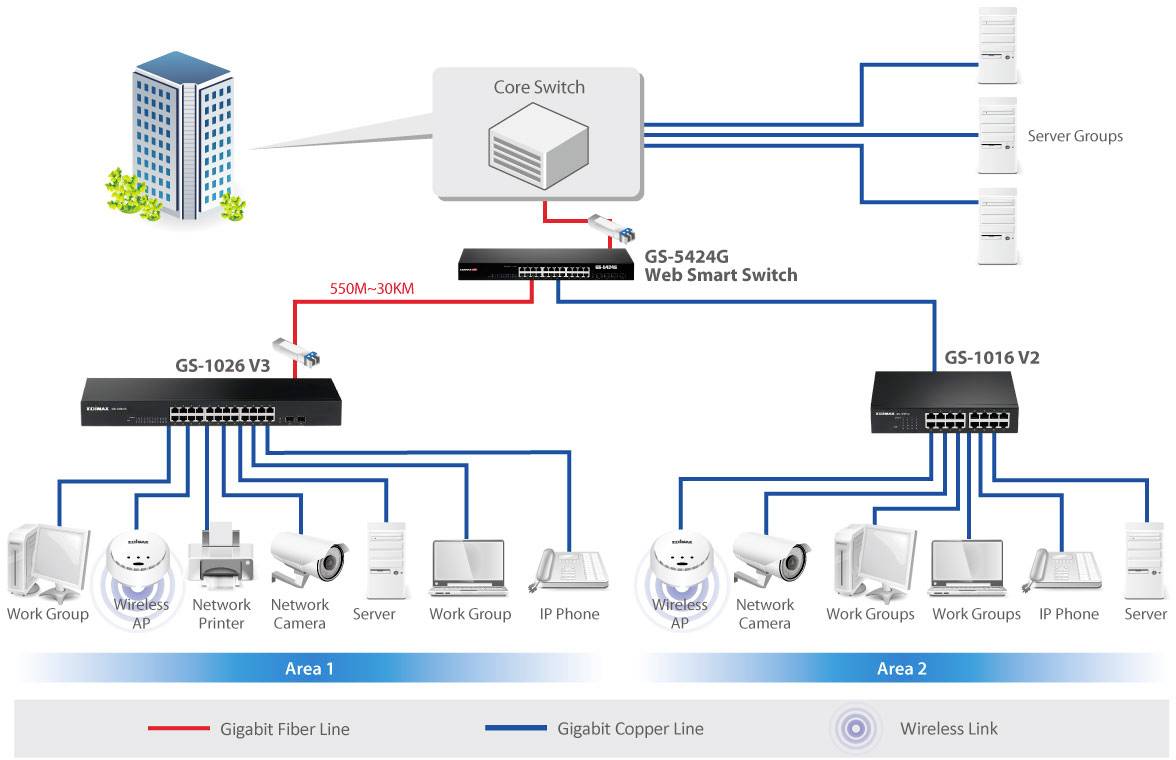

Network diagram shows the connection of servers and devices through a Core Switch, Web Smart Switch and two Gigabit Switches, distributed across two areas.

A black 26-port network switch sits on a table, with two people working on computers in the background. Text on the image: 'Desktop & Fanless'.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Edimax 26-port gigabit switch with 2 SFP ports

SFP Uplinks for Gigabit High Speed & Long Distance: Equipped with 24 Gigabit Ethernet ports and 2 full duplex SFP ports/Uplinks and 10 kB jumbo frames for high speed networks
QoS for improved traffic: Supports IEEE802.1p QoS of the highest priority for video and voice traffic
High performance & reliable connection: Supports IEEE 802.3x flow control, auto-negotiation, no-blocking wire speed, auto MDI/MDI-X, auto-correction and loop detection
Energy efficient & energy saving: Conforms to IEEE 802.3az Energy Efficient Ethernet, detection of inactive connections as well as cable lengths, in order to save power
Plug-and-play & flexible use: No software or configuration required and designed for flexible use on the desk or in the rack

Technical specifications

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 24

SFP ports: 2 x

10/100/1000 Mbps ports: 24 x

Jumbo frames: Yes

Power supply (LOV): mains-powered

MAC addresses: 8000

Weight: 1.83 kg

Width: 441 mm

Height: 44 mm

Depth: 131 mm

Type: GS-1026 V3

Interfaces: Gigabit LAN (1 Gbps)
SFP

Factory colour: Black

Max. ambient temperature: 70 °C

Port: 24 + 2 ports

Cable length: 0 cm

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2376441 EDIMAX GS-1026 V3 GS-1026 V3 Network switch 24 + 2 ports 10 / 100 / 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 2376441 EDIMAX GS-1026 V3 GS-1026 V3 Network switch 24 + 2 ports 10 / 100 / 1000 MBit/s

Conformity certificate

Conformity certificate 2376441 EDIMAX GS-1026 V3 GS-1026 V3 Network switch 24 + 2 ports 10 / 100 / 1000 MBit/s

Description

QoS for improved traffic
802.1p QoS to ensure voice and video traffic is a top priority to reduce packet loss, latency, and jitter on the network.

High performance and reliable connection
With IEEE 802.3x flow control. Auto-negotiation, no-blocking wire speed, auto-MDI/MDI-X, auto-correction, loop detection, and store-and-forward architecture that filters fragment and CRC error packets to maximize network performance.

Energy efficient and energy saving
For compliance with the IEEE802.3az Energy Efficient Ethernet standard, in order to reduce energy consumption and costs.

Plug-and-play & flexible use
No software or configuration required, designed for flexible desktop or rack mounting.

This text is machine translated.
