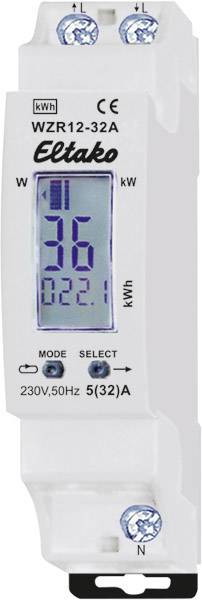

Eltako WZR12-32A 28032410 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (AC)
Current load
32 A
Display
Digital
Counter type
direct measuring
Operating voltage
230 V
Number
Total (€ 45.37 / piece)
€ 45.37
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Counter type
direct measuring
- Product type
Electricity meter (AC)
- Current load
32 A
- Display
Digital
- Operating voltage
230 V
- Factory colour
White
- Dim
(L x W x H) 58 x 18 x 82 mm
- Weight
0.10
- Starting current
20 mA
- Recording time (max.) (details)
95 d
- Type
With reset function
- Operating voltage
230 V
- Self-consumption
0.5 W
- Recess width
18 mm
- Recess length
58 mm
- Frequency
50 Hz
- Accuracy
1 %
- Accuracy class
B
- MID-approved
No
- Reading type
Active power
- Width
18 mm
- Height
82 mm
- Length
58 mm
- Current (max.)
32 A
- Current range
32 A (max)
- Features
Reset option
- Type
WZR12-32A
- Effective current range
32 A
DRA (DIN-rail adapter)
18 mm
Direct measurement
82 mm
58 mm
Purchase
Digital
0.5 W
50-50 Hz
32 A
1
7
Electronic
IP20
Other
Effective power
One-tariff
TRUE
FALSE
Optic
S0
2000-2000 Imp/kWh (kvarh)
B
Single phase
FALSE
230-230 V
5 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2162046 Eltako WZR12-32A 28032410 Electricity meter (AC) Digital 32 A MID-approved: No 1 pc(s)
Description
Maximum current 32A, standby loss of only 0.5 watts. Series installation device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit =18mm wide, 58mm deep. This AC counter with reset function measures the active energy on the basis of the current flowing between input and output and stores the consumption in non-volatile memory. Like all counters without MID declaration of conformity in Europe, it is not approved for monetary electricity accounting. The accuracy corresponds to all Eltako AC meters of class B with MID (1%), the starting current is 20mA. The display is divided into 3 fields. Field 1: This display refers to the accumulated value in field 3. IIIi running slowly to the right = field 3 shows the accumulated consumption since the last reset. This is the normal display. S01 = field 3 shows the consumption last full hour to S24 = 24 hours ago. T01 = field 3 shows the consumption of the last full days up to T95 = 95 days ago. Field 2: Instantaneous value of the power consumption (active power) in watts (W) or kilowatts (kW). The display arrows on the left and right indicate the automatic changeover W and kW. Field 3: Accrued value up to 9999 kWh. Display up to 9.999kWh with 3 decimal places, from 10kWh with 1 decimal place and from 1000kWh without decimal place. With the left MODE key, you can scroll through the display options and these are displayed in field 1: S01 and T01 as described above. Finally, press MODE to follow the country code of the set language. D for German, GB for English, F for French and IT for spanish. With the right SELECT button, the displayed number is increased by 1 each time the button is pressed and the corresponding value is shown in field 3. From the last hour on the hour, the last hour on the hour, etc., if the active language was selected with MODE, you can switch to another language with SELECT. If the new language setting is exited with MODE, it is active. 20 seconds after the last MODE or SELECT operation and if both buttons are pressed briefly at the same time, the program automatically returns to the normal display. Reset: Press and hold the MODE and SELECT buttons simultaneously for 3 seconds until RES appears in field 1. If SELECT is now pressed briefly, all memories are set to zero. Afterwards, the program automatically returns to the normal display.
