Endress+Hauser RMA42 RMA42-CBD 1 pc(s)
EAN:
Part number:
Item no:
Type
RMA42
Dim
(L x W x H) 118 x 45 x 115 mm
Output (current)
0/4-20 mA
Operating voltage
24, 24 - 230, 230 V DC, V AC
Max. operating voltage
230 V DC
230 V AC
Number
Total (€ 558.82 / piece)
€ 558.82
plus VAT.
14-day return policy included
Highlights & Details
Process transmitter limit monitor / transmitter RMA42-CBD CSA AIS, NI/I/2/ABCDEFG/T4 2x universal; 2x analogue + 2 relays
- APPROVALS: CSA AIS, NI/I/2/ABCDEFG/T4
- Input; Output: 2 x universal; 2 analogue + 2 relays
Technical specifications
- Type
RMA42
- Dim
(L x W x H) 118 x 45 x 115 mm
- Output (current)
0/4-20 mA
- Operating voltage
24, 24 - 230, 230 V DC, V AC
- Max. operating voltage
230 V DC
230 V AC
- Min. operating voltage
24 V DC
24 V AC
- Input signal (voltage)
0-10V
- Input signal (current)
Strom
- Content
1 pc(s)
- Width
45 mm
- Height
115 mm
- Length
118 mm
- RoHS-compliant
Yes
- Max. ambient temperature
60 °C
- Min. ambient temperature
-20 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989260 Endress+Hauser RMA42 RMA42-CBD 1 pc(s)
User & Safety Instructions 2989260 Endress+Hauser RMA42 RMA42-CBD 1 pc(s)
Description

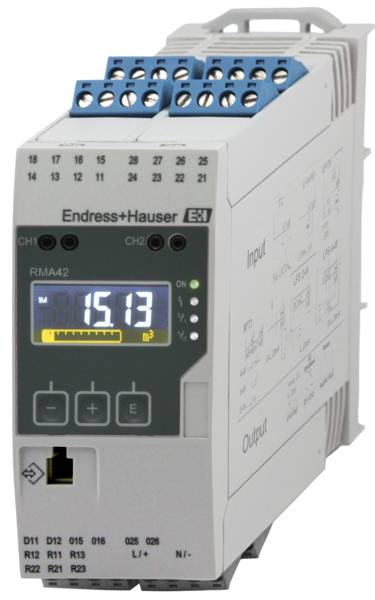

The RMA42 process transmitter displays analog measured values. Two-wire sensors can be supplied with the integrated loop power supply. The universal inputs enable the connection of current, voltage, RTDs and TCs. The multi-colored LCD-display with 7-segment bar graph enables the display of the device.
This text is machine translated.
This text is machine translated.
Features
- A device that covers a large number of functions and applications: Loop power supply, barrier, integrated relays, calculations and display of measured values.
- Perfect complement for fill level measurements, as it can be used as overfill protection, offers calculations such as mean value or difference, e.g. for differential pressure applications, and can be used to linearize a tank.
- Simple on-site configuration with 3 buttons and remote commissioning from a safe and convenient location.
