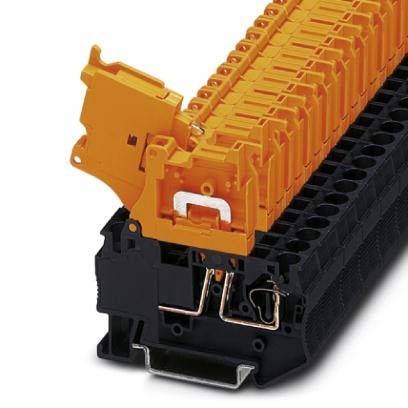

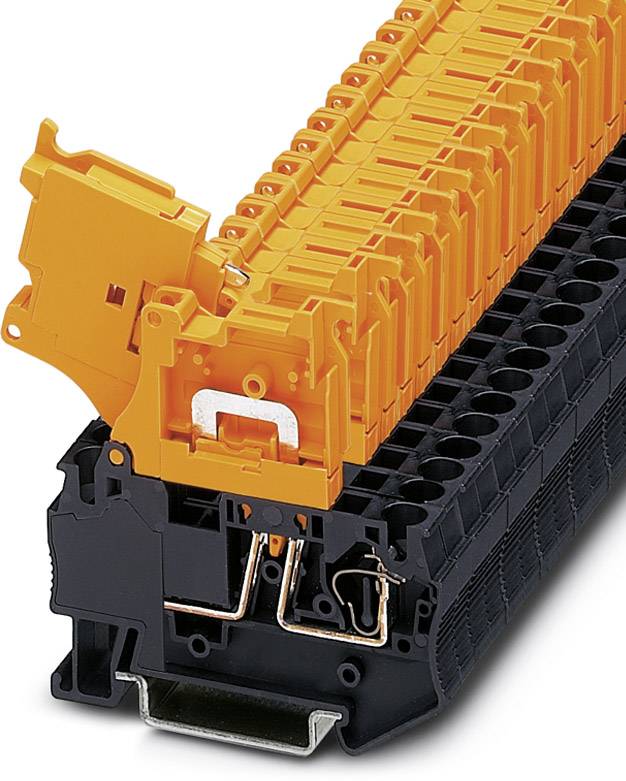

Image similar
Feed-through terminal block ST 4-HEDI BU 3035221 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 5.90 / piece)
€ 295.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3035221
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 4-HEDI BU
- Dim
(L x W x H) 61.5 x 6.2 x 62.5 mm
- Width
6.2 mm
- Height
62.5 mm
- Length
61.5 mm
- Connector colour
Blue
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565966 Feed-through terminal block ST 4-HEDI BU 3035221 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565966 Feed-through terminal block ST 4-HEDI BU 3035221 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
Hints
Special order, no right of withdrawal.
What kind of Serial Terminals are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
