Knife disconnect terminal block STS 2,5-MT BU 3035425 Phoenix Contact

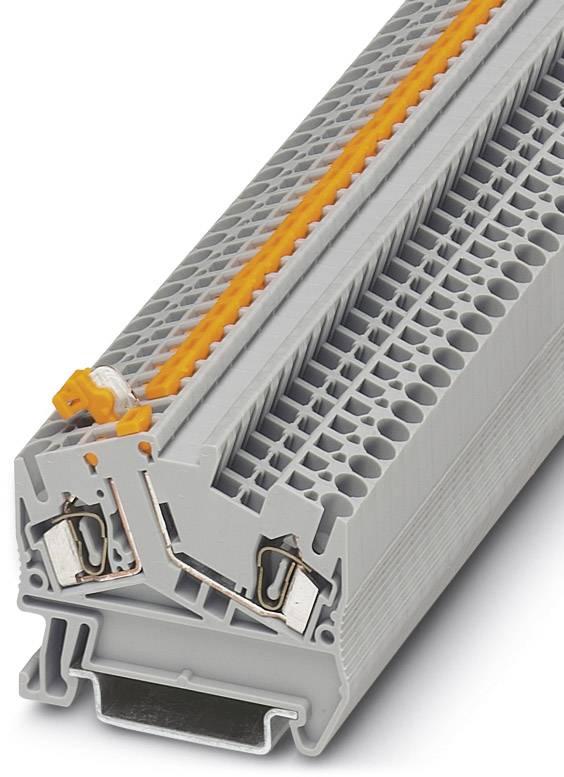

Grey and orange clamp on a white background. It shows a modular design for electrical connections.
Image similar
Packaging type
Piece
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 14 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 4.10 / piece)
€ 204.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Knife disconnect terminal block STS 2,5-MT BU

  • STS 2,5-MT BU

Technical specifications

Packaging type

Piece

Product type

N terminal

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

28

AWG max.

14

Clamp width

5.2 mm

No. of rows

1

Number of pins

2

Factory colour

Blue

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3035425

Content

50 pc(s)

Industrial packaging

Yes

Type

STS 2,5-MT BU

Dim

(L x W x H) 50.8 x 5.2 x 43 mm

Width

5.2 mm

Height

43 mm

Length

50.8 mm

Flammability rating

V0

Connector colour

Blue

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 566236 Knife disconnect terminal block STS 2,5-MT BU 3035425 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566236 Knife disconnect terminal block STS 2,5-MT BU 3035425 Phoenix Contact

Description

Knife disconnect terminal block, Connection type: Spring-cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 20 A, Nominal voltage: 400 V, Length: 51 mm, Width: 5.2 mm, Color: blue, Assembly: NS 35/7,5, NS 35/15
