Feed-through terminal block STTBU 4 BU 3033168 Phoenix Contact

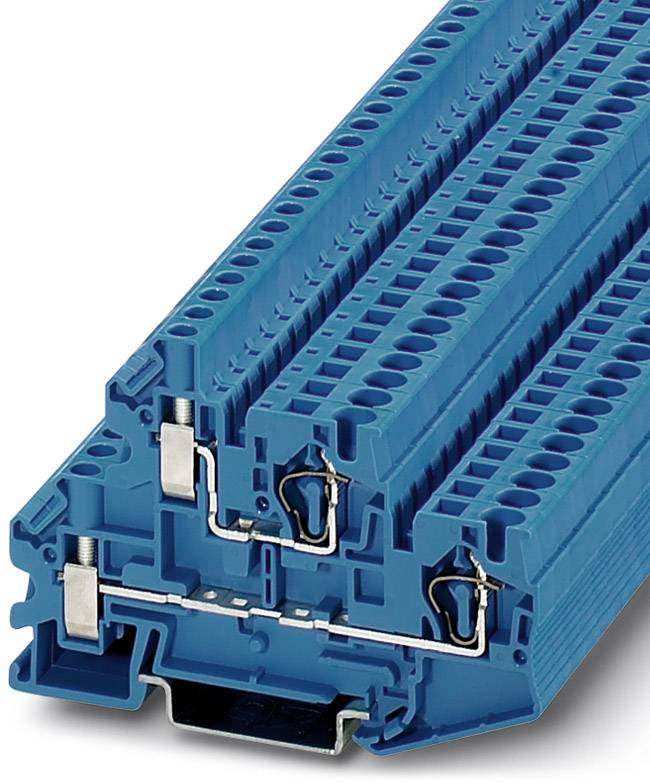

Blue terminal block with multiple connection points, suitable for mounting on a DIN rail in electrical systems.
Image similar
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 3.90 / piece)
€ 194.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block STTBU 4 BU

  • STTBU 4 BU

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

28

AWG max.

10

Clamp width

6.2 mm

No. of rows

2

Pins per row

4

Number of pins

4

Factory colour

Blue

Nominal current

30 A

Nominal current - rounded value

30 A

Nominal voltage

500 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3033168

Content

50 pc(s)

Industrial packaging

Yes

Type

STTBU 4 BU

Dim

(L x W x H) 81 x 6.2 x 55.5 mm

Width

6.2 mm

Height

55.5 mm

Length

81 mm

Contamination level

3

Flammability rating

V0

Connector colour

Blue

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 566214 Feed-through terminal block STTBU 4 BU 3033168 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 566214 Feed-through terminal block STTBU 4 BU 3033168 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15

Hints

Special order, no right of withdrawal.
