Feed-through terminal block STU 4-TWIN 3033058 Phoenix Contact

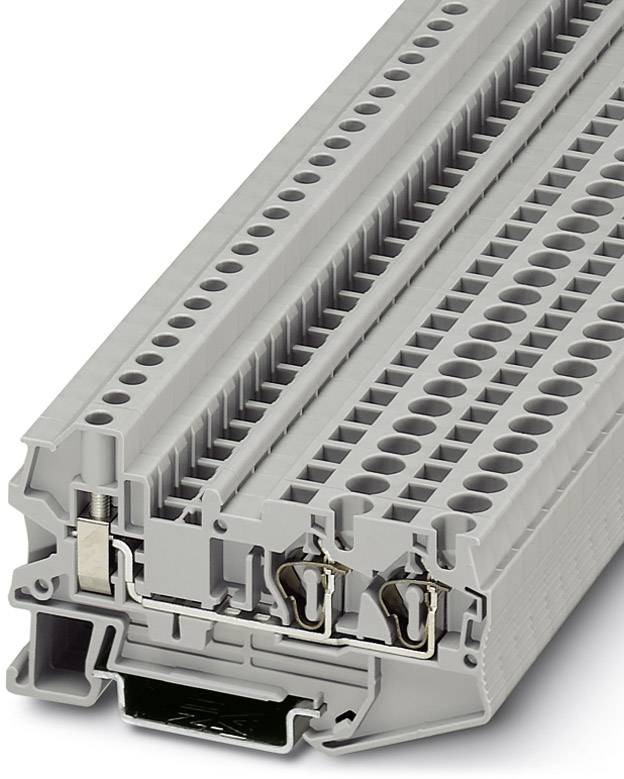

A grey terminal block with multiple connections. It is used for electrical distribution and is commonly installed in control panels.
Image similar
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2.30 / piece)
€ 114.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Serial continuity

Features

built-in jumper

Connection

Screws

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

26

AWG max.

10

Clamp width

6.2 mm

No. of rows

1

Number of pins

3

Factory colour

Grey

Nominal current

32 A

Nominal current - rounded value

32 A

Nominal voltage

800 V

Min. stripping length

8 mm

Stripping length (max.)

10 mm

Manufacturer part #

3033058

Content

50 pc(s)

Industrial packaging

Yes

Type

STU 4-TWIN

Dim

(L x W x H) 74.4 x 6.2 x 42.8 mm

Width

6.2 mm

Height

42.8 mm

Length

74.4 mm

Contamination level

3

Flammability rating

V0

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565956 Feed-through terminal block STU 4-TWIN 3033058 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565956 Feed-through terminal block STU 4-TWIN 3033058 Phoenix Contact

Description

Feed-through terminal block, Connection type: Screw connection, Spring-cage connection, Cross section: 0.14 mm² - 6 mm², AWG :28- 12, Width: 6.2 mm, Color: gray, Mounting: NS 35/7,5, NS 35/15
