Image similar

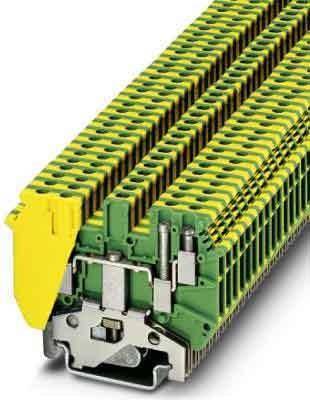

Feed-through terminal block UDK 3-PE 2775456 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 14.30 / piece)
€ 715.00
incl. VAT
Only 9 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Screws
- Configuration
Terre
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
5.2 mm
- No. of rows
2
- Number of pins
4
- Factory colour
Green
Yellow
- Stripping length (max.)
8 mm
- Manufacturer part #
2775456
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UDK 3-PE
- Dim
(L x W x H) 63.5 x 5.2 x 47 mm
- Width
5.2 mm
- Height
47 mm
- Length
63.5 mm
- Contamination level
3
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 565172 Feed-through terminal block UDK 3-PE 2775456 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565172 Feed-through terminal block UDK 3-PE 2775456 Phoenix Contact
Description
1-level terminal block with double connection on both sides, cross section: 0.2 - 2.5 mm², width: 5.2 mm, color: green-yellow
